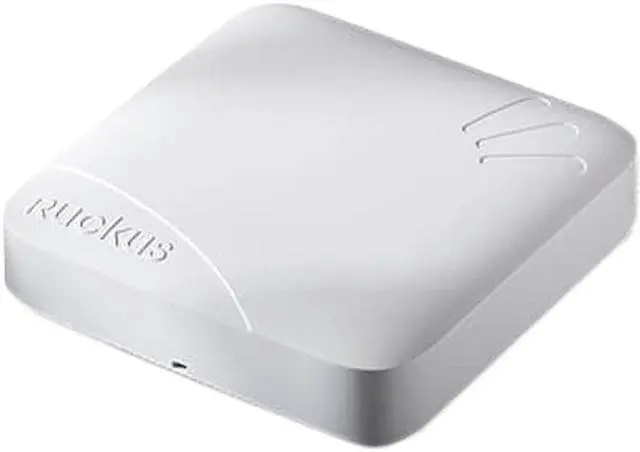

RUCKUS 901-R700-XX00 ZoneFlex R700 Dual Band 802.11ac Access Point (Power Adapter Sold Separately)

Be the first to review this product...
  • Concurrent dual-band (5 GHz / 2.4 GHz) support
  • Backward compatible with legacy 802.11 clients
  • 1300 Mbps PHY rates at 5 GHz
  • Compatible with 802.3af Power over Ethernet (PoE)
Specs
Reviews

Learn more about the RUCKUS WIRELESS R700 (901-R700-XX00)

Model
Brand Ruckus
Series ZoneFlex
Model R700 (901-R700-XX00)
Details
Standards IEEE 802.11ac, IEEE 802.11a/b/g/n
Wireless Data Rates 802.11ac: 29.3 Mbps - 1300 Mbps (80 MHz)
802.11n: 6.5 Mbps - 216.7 Mbps (20 MHz) 13.5 Mbps - 450 Mbps (40 MHz)
802.11a: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
802.11b: 11, 5.5, 2 and 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
Frequency Band IEEE 802.11ac: 5.15 - 5.85 GHz
IEEE 802.11a/n: 5.15 - 5.85 GHz
IEEE 802.11b: 2.4 - 2.484 GHz
Channels US/Canada: 1 - 11, Europe ( ETSI X30): 1 - 13, Japan X41: 1 - 13
5 GHz channels: Country dependent
Antenna Internal Antenna
Receiver Sensitivity Up to -99 dBm
Modulation 256-QAM modulation support
Interface 2 ports, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45
Power Supply DC Input: 12V DC 1.5A
PoE: 802.3af compliant
Environmental
Temperature 0°C - 60°C (32°F - 140°F)
Humidity 95% Maximum, Non-Condensing
Dimensions & Weight
Dimensions 1.97" x 7.99" x 7.99"
Weight 2.20 lbs.
Features
Features Concurrent dual-band (5 GHz / 2.4 GHz) support

Backward compatible with legacy 802.11 clients

80 MHz channelization; 256-QAM modulation support; 1300 Mbps PHY rates at 5 GHz

Automatic interference avoidance, optimized for high-density environments

Space Time Block Coding for increased handset performance

Improved Maximum Ratio Combining (MRC) for best-in-class receive sensitivity

Low Density Parity Check (LDPC) for increased data throughput at all ranges

BeamFlex+ (PD-MRC) improves signal reception of mobile devices

Integrated smart antenna with over 3000 unique patterns for ultra reliability

Unmatched Rx sensitivity down to -99 dBm

Either standalone or centrally managed

Integrated NAT and DHCP support

Compatible with 802.3af Power over Ethernet (PoE)

Multicast IP video streaming support

Four software QoS queues per client station

Future support for advanced spectrum analysis

Up to 32 (2.4 GHz) and 16 (5 GHz) BSSIDs with unique QoS and security policies

Wall or ceiling mountable with unobtrusive design

Built in mounting options for fast an easy deployment

When used with management:
WPA-PSK (AES), 802.1X support for RADIUS and AD
Zero-IT and Dynamic PSK
Admission control/load balancing
Band steering and airtime fairness
Captive portal and guest accounts
SmartMesh Networking
