Install on Motherboard
Insert the Sabrent ROCKET pin-side first into the M.2 slot as is illustrated. Fasten the opposite end to the motherboard with the necessary screw or hardware.
Install on Enclosure
Insert the Sabrent ROCKET pin-side first into the M.2 slot as is illustrated. Fasten the opposite end to the enclosure with the necessary screw or hardware.
Install on Mini PC
Unscrew and open the Mini PC and insert the Sabrent ROCKET pin-side first into the M.2 slot as is illustrated. Fasten the opposite end to the enclosure with the necessary screw or hardware.
Install on Laptop
Open the Laptop and insert the Sabrent ROCKET pin-side first into the M.2 slot as is illustrated. Fasten the opposite end to the enclosure with the necessary screw or hardware.
EXEPTIONAL PERFORMANCE
The Sabrent NVMe USB 3.1 External Aluminum SSD delivers all the advantages of flash disk technology with PCIe Gen3 x4 interface and it is fully compliant with the standard Next Generation Form Factor (NGFF), commonly known as M.2.

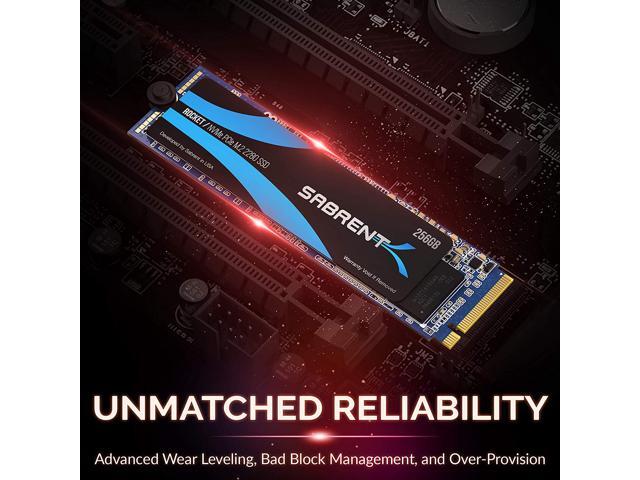

UNMATCHED RELIABILITY
Power consumption is much lower than traditional hard drives. Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface. Advanced Wear Leveling, Bad Block Management, and Over-Provision.
THE FASTEST SPEED
Upgrade your laptop or desktop with the Sabrent Rocket SSD for a fast and reliable solution for typical use such as web browsing, email, casual gaming and video entertainment.
TECH SPECS
Rocket NVMe SSD Features
Superior Build Quality
High Capacity
Fast Read/Write
Shock Resistant
| Model # | SB-ROCKET-256 | SB-ROCKET-512 | SB-ROCKET-1TB | SB-ROCKET-2TB | SB-ROCKET-4TB |
|---|---|---|---|---|---|
| Capacity | 256GB | 512G | 1TB | 2TB | 4TB |
| Interface | PCIe Gen3 x 4 | PCIe Gen3 x 4 | PCIe Gen3 x 4 | PCIe Gen3 x 4 | PCIe Gen3 x 4 |
| NAND | BiCS3/BiCS4/B27 | BiCS3/BiCS4/B27 | BiCS3/BiCS4/B27 | BiCS3/BiCS4/B27 | BiCS4 |
| CTL | E12/E12S | E12/E12S | E12/E12S | E12/E12S | E12S |
| Certifications | CE,FCC,BSMI,RoHS | CE,FCC,BSMI,RoHS | CE,FCC,BSMI,RoHS | CE,FCC,BSMI,RoHS | CE,FCC,BSMI,RoHS |
| Max Sequential Read | 3100 (MB/s) | 3400 (MB/s) | 3400 (MB/s) | 3400 (MB/s) | 3450 (MB/s) |
| Max Sequential Write | 1050 (MB/s) | 2000 (MB/s) | 3000 (MB/s) | 2700 (MB/s) | 3000 (MB/s) |
| Rndm 4K QD32 (IOPS) Read | 167K | 357K | 650K | 490K | 580K |
| Rndm 4K QD32 (IOPS) Write | 256K | 456K | 640K | 510K | 650K |
| Power Consumption R/W | 5.1 / 3.1 | 5.4 / 4.0 | 6.6 / 5.3 | 5.7 / 5.4 | 8.0 / 6.8 |
| Power Supply | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Form Factor | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 | M.2 2280 |
| Height | 2.35mm | 2.35mm | 3.7mm | 3.7mm | 3.7mm |
| Width | 22mm | 22mm | 22mm | 22mm | 22mm |
| Length | 80mm | 80mm | 80mm | 80mm | 80mm |
| Operating Temperature | 0~70°C | 0~70°C | 0~70°C | 0~70°C | 0~70°C |
| Storage Temperature | -40~85°C | -40~85°C | -40~85°C | -40~85°C | -40~85°C |
| MTBF | 1,800,000 | 1,800,000 | 1,800,000 | 1,800,000 | 1,800,000 |
| Shock Resistant | 1500G | 1500G | 1500G | 1500G | 1500G |
| Data Correction | LDPC | LDPC | LDPC | LDPC | LDPC |
| Warranty | 5 years with registration | 5 years with registration | 5 years with registration | 5 years with registration | 5 years with registration |
