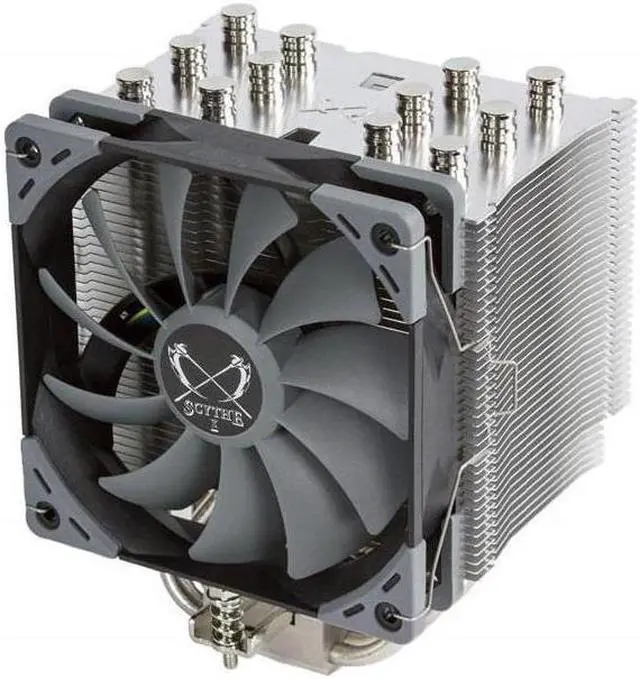

Mugen 5

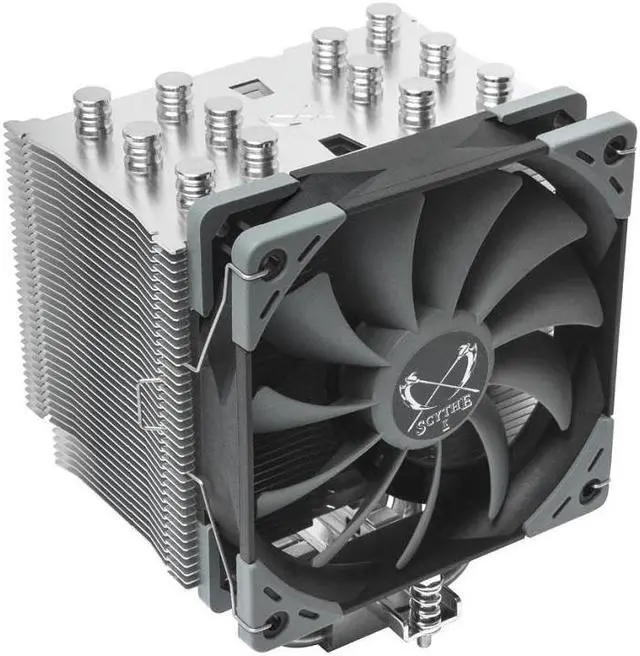

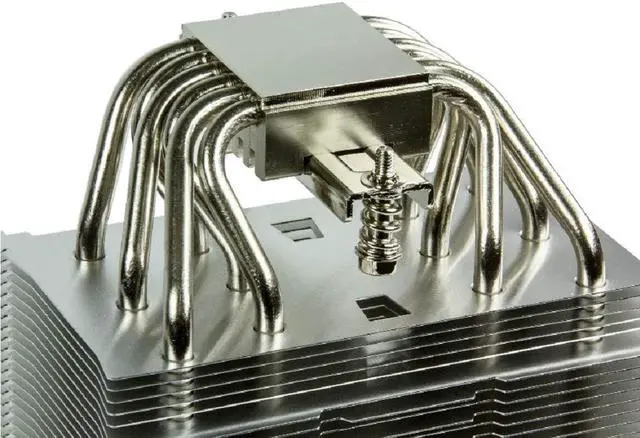

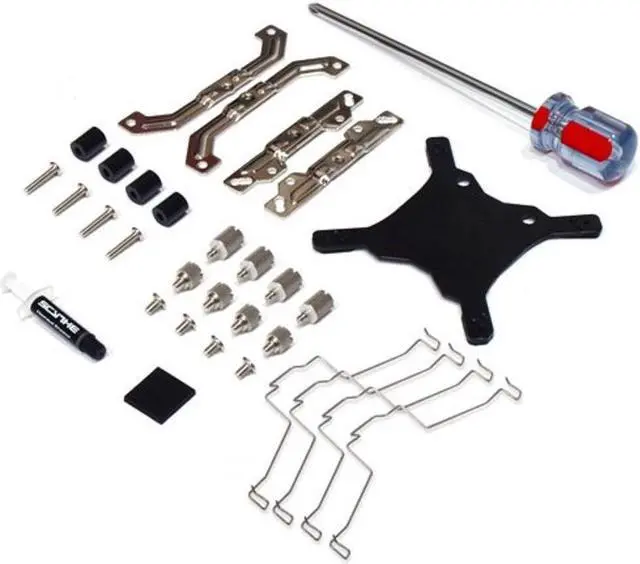

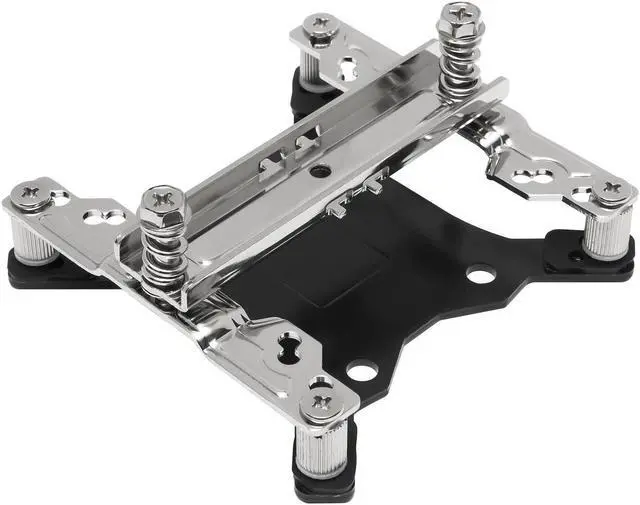

SCMG-5100The award-winning Mugen 5 CPU Cooler has been updated with a reworked mounting system, which now offers full compatibility with AMD's new AM4 platform. Spring-loaded screws prevent uneven pressure distribution and allow for a quick and easy assembly. The unusual shape of the heatsink provides unrivaled memory compatibility thanks to its asymmetrical design. A fan from the new Kaze Flex series is used for active cooling. Sealed Precision FDB bearing and rubberized decoupler grant the fan with an increased smoothness during operation and an average lifespan of 120,000 hours. In addition to the polished and high-quality copper base-plate, the heatpipes are now completely nickel-plated, too. The result is an excellent and award-winning tower cooler that does not compromise either in terms of optics nor performance.

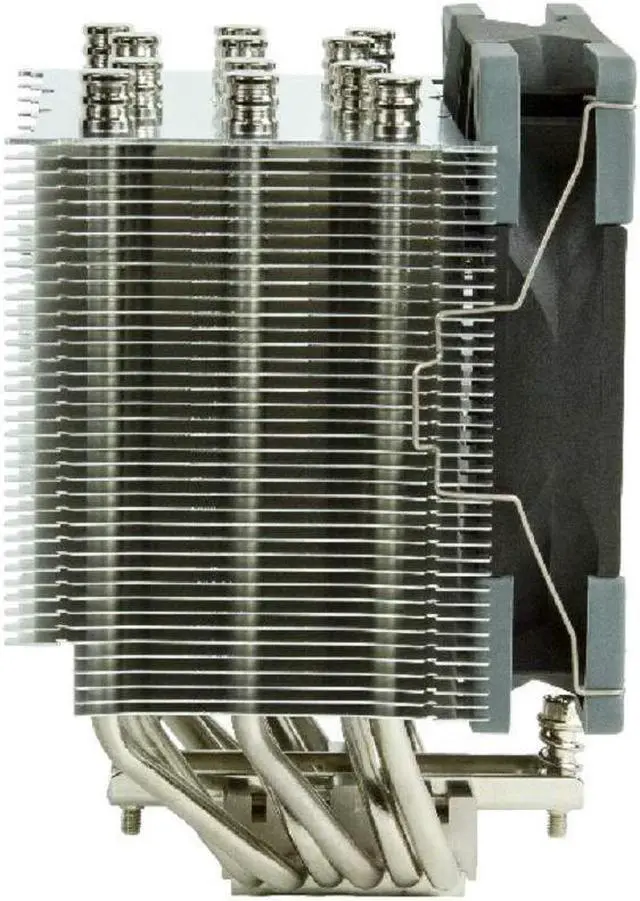

Asymmetric design

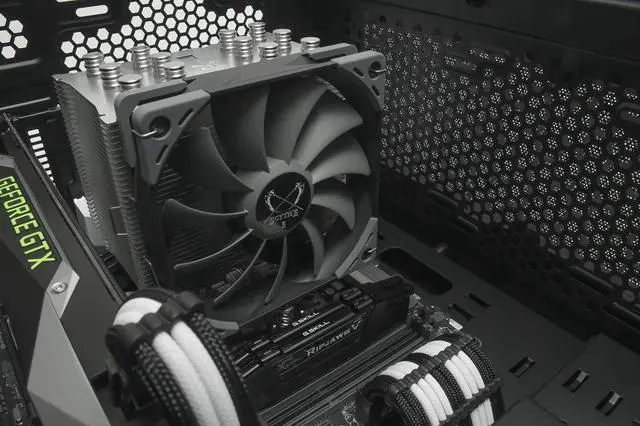

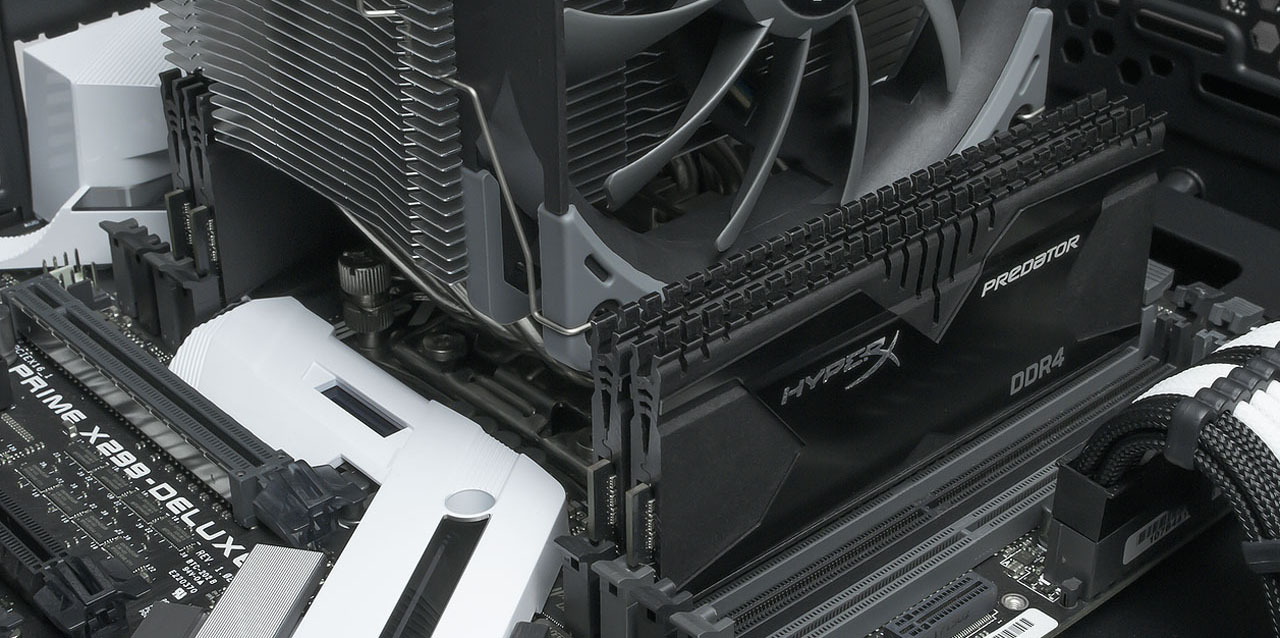

Ram modules with large passive heat sinks are no problem for the Mugen 5. Its heatpipes are gently sloped backwards so that the radiator is not centered directly above the baseplate, but slightly offset. This asymmetric design allows unrestricted access to the memory banks.
Classic Size
Mugen 5 is 120mm fan model with 158mm tall, this ensure the cooler fits most modern computer case.
Unlimited Performance

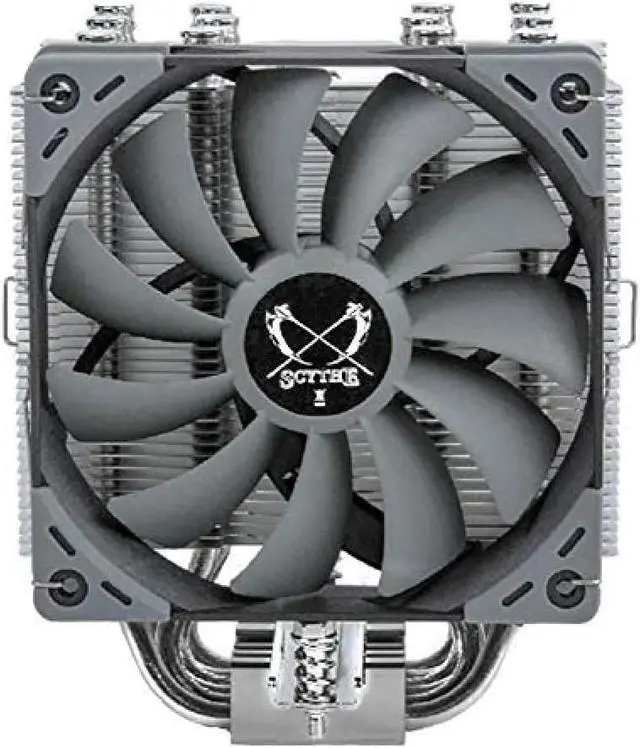

The Mugen 5 is designed with 6 high quality heatpipes and equipped with newly developed Kaze Flex FDB fan to ensure a high level of cooling performance and quietness.
SPECIFICATIONS
Model Number:
SCMG-5100
Socket :
INTEL: 775 / 115x / 1366 / 2011(V3) / 2066
AMD: AM4 / AM3(+) / AM2(+) / FM2(+) / FM1

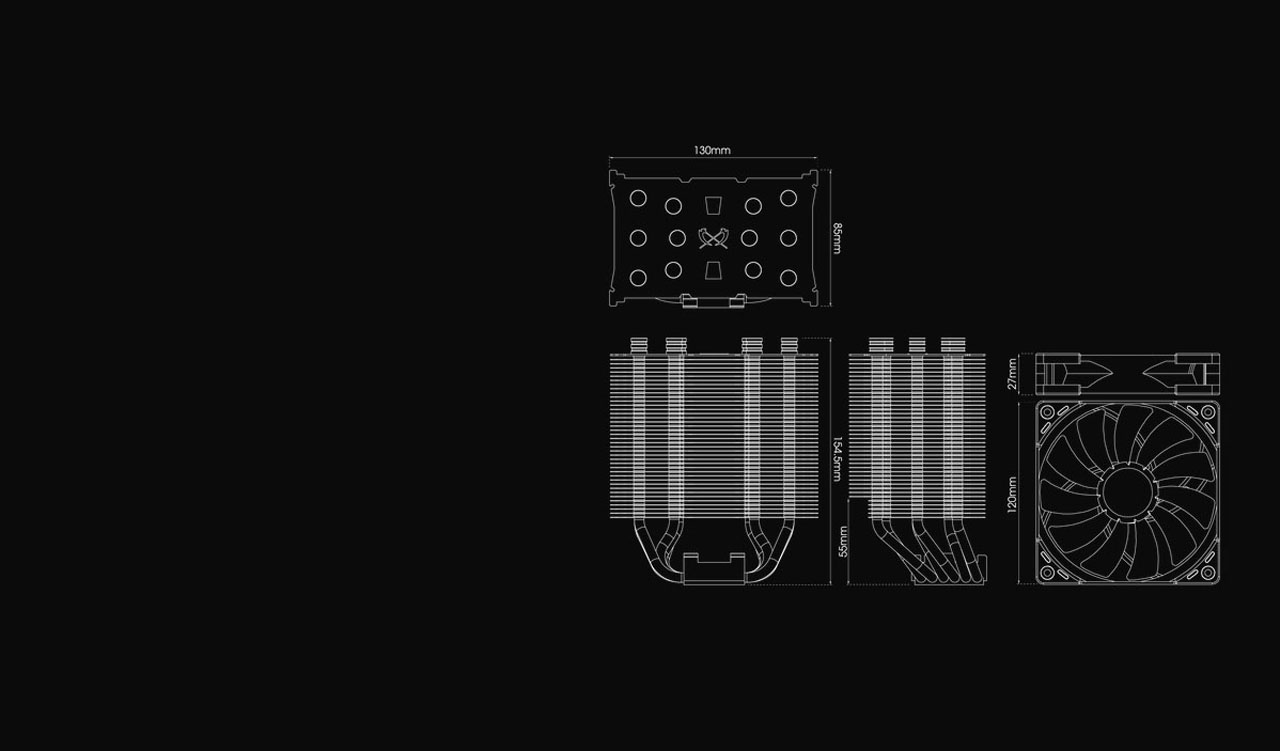

Dimension:
(W)130 x (H)154.5 x (D)110mm
Fan Size:
120 x 120 x 27mm
Heatpipes:
Ø6mm x 6
Fan Speed:
300±200~1200 rpm±10% RPM
Air Flow:
16.6~51.17 CFM
Statics:
0.0762~1.05 mmH2O / 0.75~10.3 Pa
Noise:
4.0~24.9 dBA
Weight(Fan inculded):
890g
