SG14B,Black,Small form factor chassis ,Plast front Panel,Steel body, (15.25" or 13.5")+ 13.5,32.5"drive bay, support mini-ITX/Mini DTX motherboard , 2USB 3.0 Type A, 1USB2.0,support ATX PSU

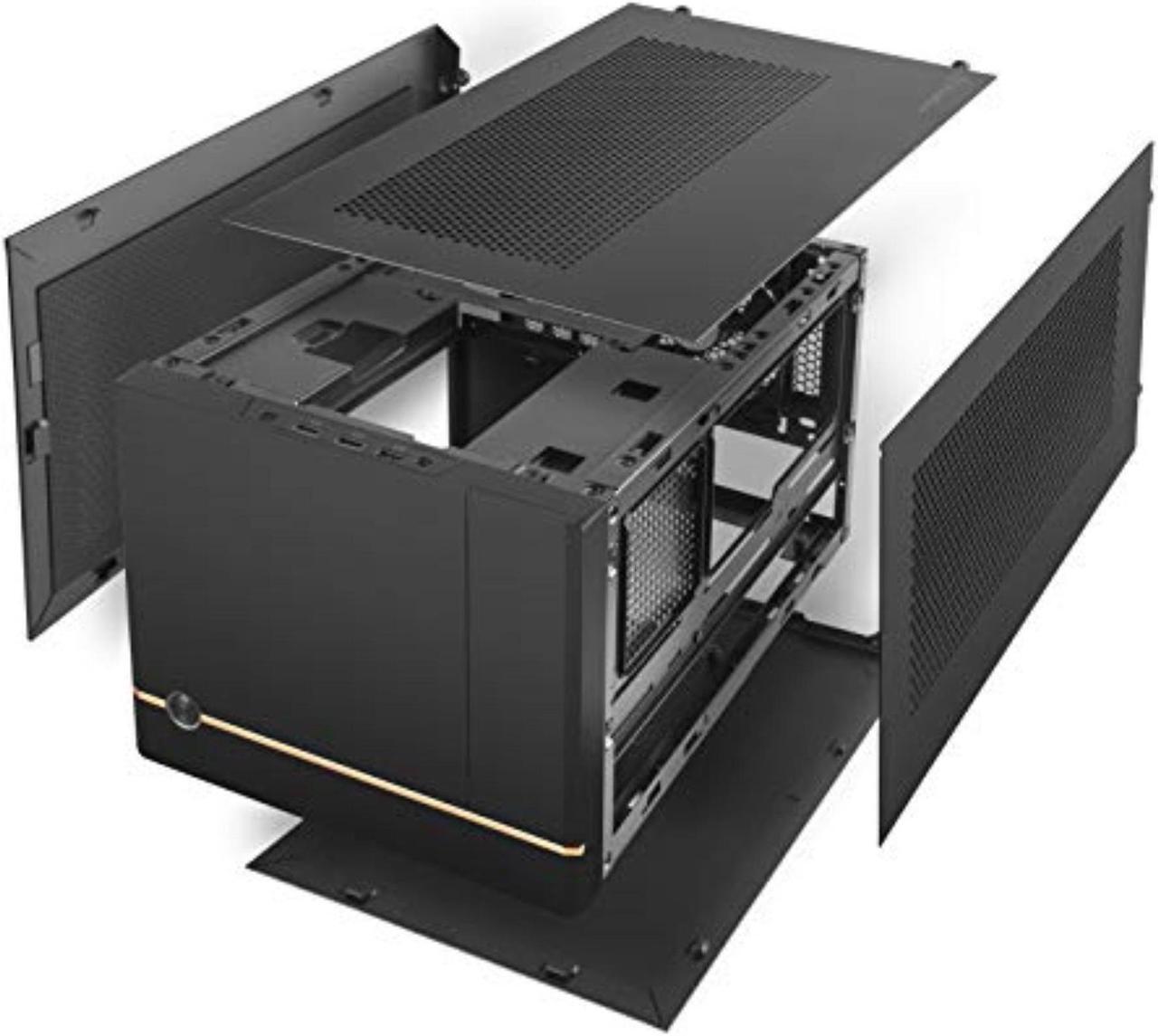

Supports 3 slot full length graphics cards with adjustable graphics card holder Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU Supports up to 240mm radiators Modular design with 4 removable panels (top, left, right, bottom) Different configurations support various storage components for 5.25", 3.5" and 2.5" Front I/O port includes: USB 3.0 x 2, USB 2.0 x 1, combo audio x 1
+
+
Overview
Specs
Reviews
Mini-ITX cube chassis with configurable front panel
Learn more about the Silverstone SUGO 14
Model
Brand
SilverStone
Model
SUGO 14
Part Number
SG14B
Details
Type
Mini-ITX Cube
Color
Black
Case Material
Plastic front panel, steel body
With Power Supply
No
Power Supply Mounted
Rear
Motherboard Compatibility
Mini DTX / Mini ITX
Side Panel Window
No
Expansion
External 5.25" Drive Bays
1 (without radiator and 3.5" x 1 installed)
Internal 3.5" Drive Bays
2 (without radiator and 5.25" installed)
Internal 2.5" Drive Bays
3
Expansion Slots
3
Front Panel Ports
Front Ports
2 x USB 3.0, 1 x USB 2.0, 1 x Audio
Cooling System
Fan Options
Rear - 1 x 120mm / Rear - 1 x 140mm / Side - 2 x 120mm / Side - 2 x 140mm
Radiator Options
Rear - Up to 120mm / Side - Up to 240mm
Dimensions & Weight
Max GPU Length
330 mm
Max CPU Cooler Height
Air cooler: 182mm (without top fan) 240mm AIO water block: 55mm
Max PSU Length
150 mm
Dimensions (H x W x D)
8.46" x 9.72" x 14.49"
Weight
10.78 lbs.
Additional Information
Date First Available
August 13, 2024
