SUPERMICRO MBD-X11SSH-LN4F-O Micro ATX Server Motherboard LGA 1151 Intel C236

(10) Write a Review
See more "supermicro motherboard"
In stock.
Ships from United States.
  • Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
  • Intel C236 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz
  • 8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
  • Quad GbE LAN with Intel i210-AT
Overview
Specs
Reviews
MBD-X11SSH-LN4F-O

SUPERMICRO MBD-X11SSH-LN4F-O Micro ATX Server Motherboard

Features

MBD-X11SSH-LN4F-O
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • Quad GbE LAN with Intel® i210-AT
  • 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
  • I/O: 1x VGA, 2x COM, TPM 1.2 header
  • 2x SuperDOM with built-in power
  • 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)
  • M.2 NGFF connector
  • Support Intel VHD with selected CPU

Specifications

Product SKUs
MBD-X11SSH-LN4F -B X11SSH-LN4F (Bulk Pack)
Physical Stats
Form Factor micro ATX
Dimensions 9.6" x 9.6", (24.4cm x 24.4cm)
Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3, Intel® Pentium®, Intel® Celeron® processors
  • CPU TDP up to 80W
System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via C236 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Quad Intel® I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Graphics ASPEED AST2400 BMC
Input / Output
SATA 8x SATA3 (6Gbps) ports
LAN
  • 4x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 5x USB 3.0 ports (2 rear + 2 via header + 1 Type A)
  • 6x USB 2.0 ports (2 rear + 4 via header)
Video 1x VGA port
Serial Port / Header 2x COM ports (1 rear, 1 header)
SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power
TPM 1x TPM 1.2 20-pin Header
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.7.1
  • UEFI 2.3.1
  • RTC (Real Time Clock) Wakeup

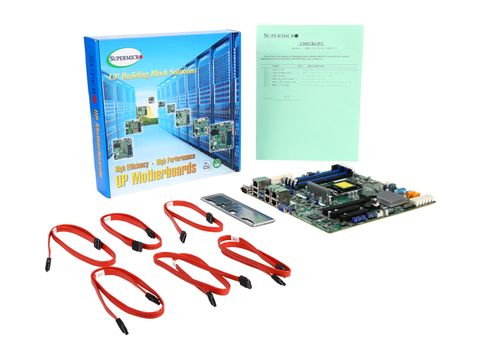

Whats in the Box

MBD-X11SSH-LN4F-O
