  6. Item#: N82E16816139334

UNAVAILABLE FOR AUSTRALIA
This item is currently out of stock and it may or may not be restocked.
UNAVAILABLE
Add to wish list(Found on 1 wish list)
Sold by Newegg

Shipped by Newegg

Shop it at NeweggBusiness.
Shop All Supermicro Products

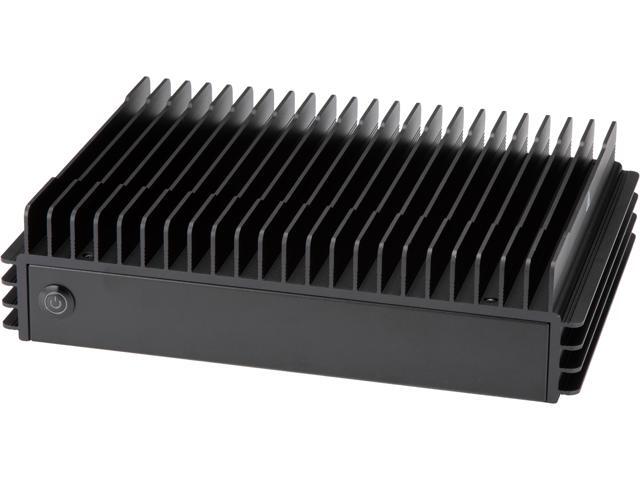

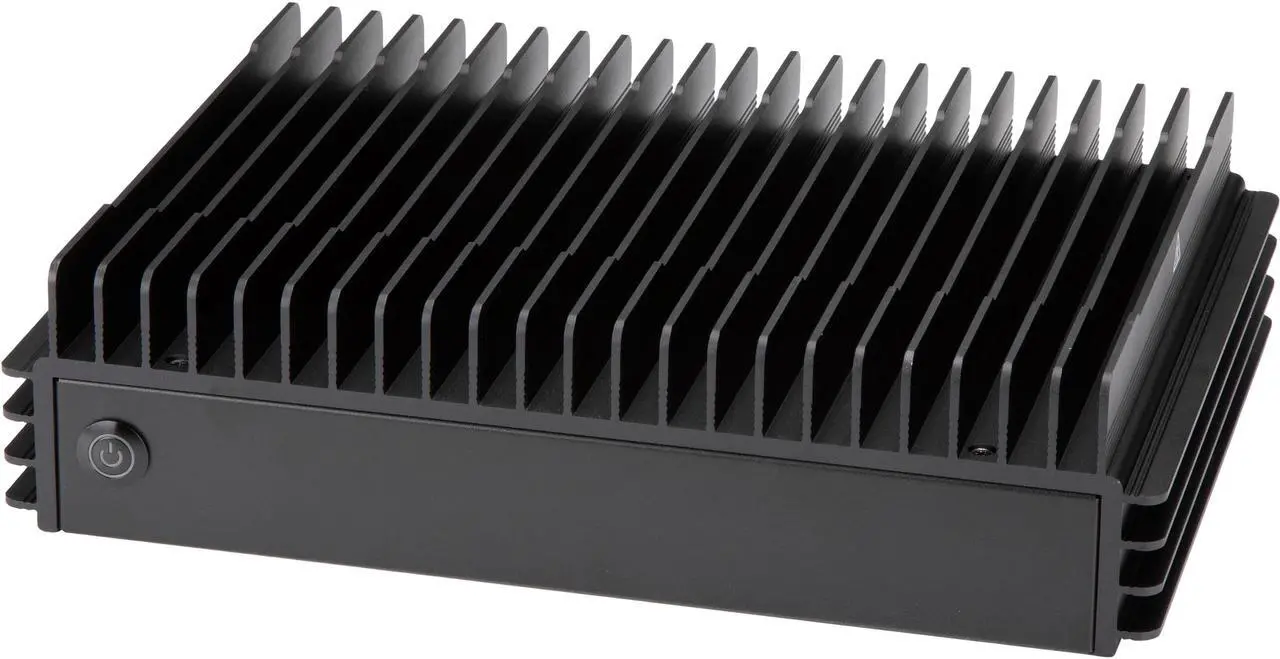

SUPERMICRO SYS-E302-9A Compact Server Barebone 2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM

Be the first to review this product...
  • Intel Atom processor C3558, Single socket FCBGA 1310
  • System on Chip
  • 2x 2.5" 7mm fixed drive bay
  • Up to 256GB registered ECC, up to 64GB unbuf. ECC/non-ECC, DDR4-2133MHz, in 4 DIMM slots
  • 1 M.2 M Key 2242/2280 (PCI-E 3.0 x2)
  • 4 GbE LAN ports w/ Intel C3000 SoC
  • 2 USB 2.0, 1 VGA via BMC
  • Fanless
  • Lockable 12V DC 60W power adapter
Specs
Reviews

Learn more about the Supermicro SYS-E302-9A

Model
Brand SUPERMICRO
Series SuperServer
Model SYS-E302-9A
CPU Supported
CPU Type Intel Atom
Installed CPU C3558 (2.20 GHz)
Memory Supported
Memory Slots 4 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported Supports up to 256GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type Supported 2133/1866MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
Storage Supported
Serial ATA 2 x SATA 600
Graphics
GPU/VPU Aspeed AST2400 BMC
Communications
First LAN Quad Gigabit Ethernet LAN via Intel C3000 SoC

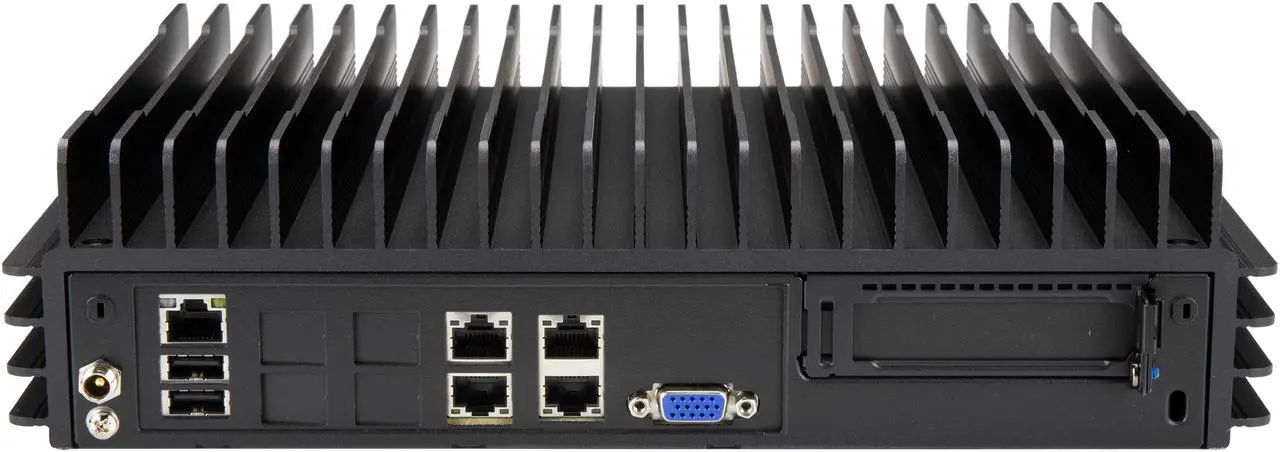

Panel Ports
Rear USB 2 USB 2.0 ports (rear)
RJ45 4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
Other Ports 1 VGA port
Features
Features Intel Atom processor C3558, Single socket FCBGA 1310
System on Chip
2 x 2.5" 7mm fixed drive bay
Up to 256GB registered ECC, up to 64GB unbuf. ECC/non-ECC, DDR4-2133MHz, in 4 DIMM slots
1 M.2 M Key 2242/2280 (PCI-E 3.0 x2)
4 GbE LAN ports w/ Intel C3000 SoC
2 USB 2.0, 1 VGA via BMC
Fanless
Lockable 12V DC 60W power adapter
Details
Form Factor Compact
Dimensions & Weight

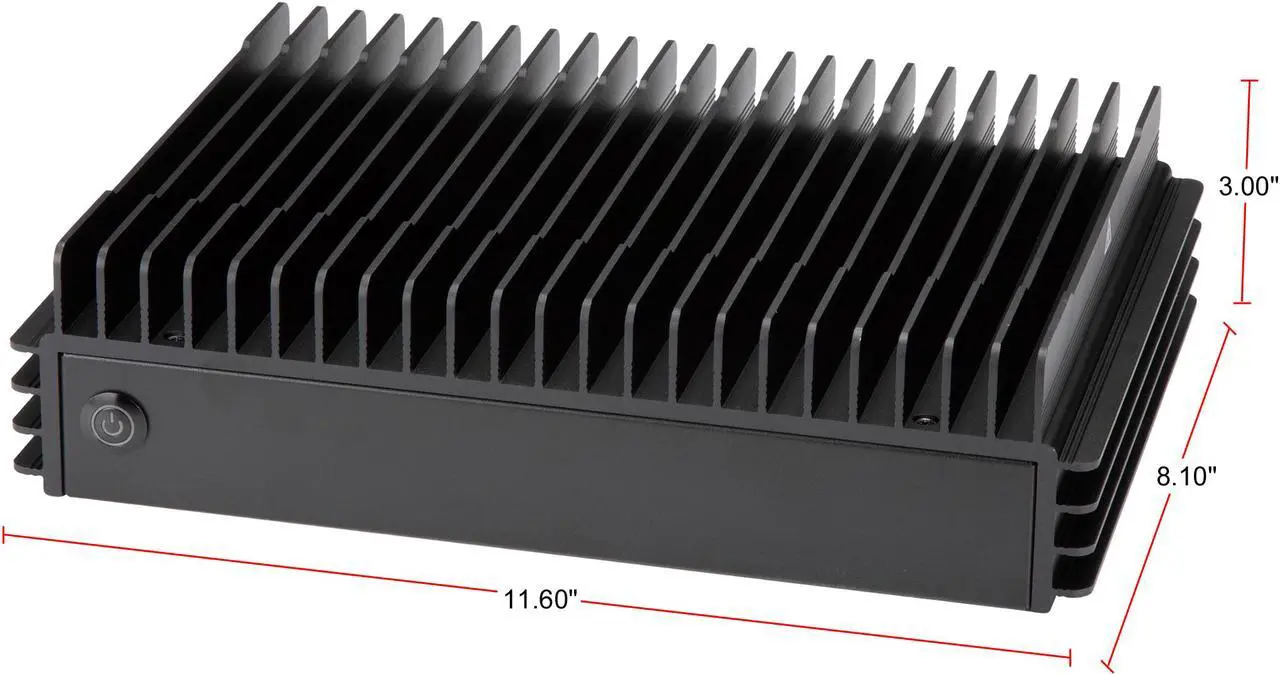

Dimensions 11.60" x 3.00" x 8.10"
Weight 3.45 lbs.
Additional Information
Date First Available August 12, 2020
