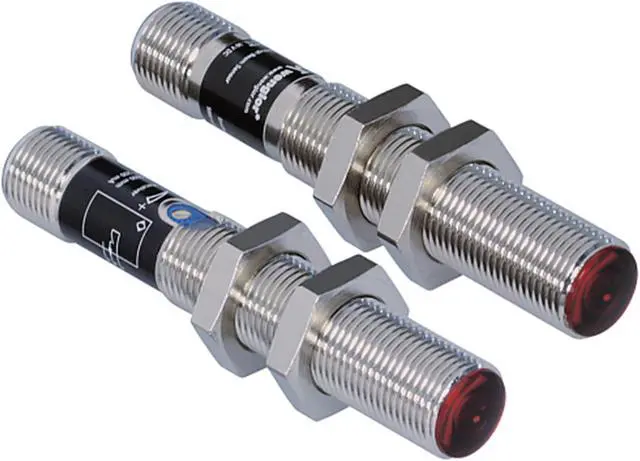

Wenglor Inductive Sensors EO95VD3N PNP New
- Wenglor Inductive Sensors EO95VD3N PNP New
+
+
Overview
Specs
Reviews
Wenglor Inductive Sensors EO95VD3N PNP New
Range 5000 mm
Switching Hysteresis < 15 %
Light Source Red Light
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Opening Angle 8 °
Sensor Type Receiver
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift < 10 %
Temperature Range -10...60 °C
Switching Output Voltage Drop < 2,5 V
Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material CuZn, nickel-plated
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NC yes
MTTFd (EN ISO 13849-1) 4259,66 a
Range 5000 mm
Switching Hysteresis < 15 %
Light Source Red Light
Service Life (T = +25 °C) 100000 h
Max. Ambient Light 10000 Lux
Opening Angle 8 °
Sensor Type Receiver
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 500 Hz
Response Time 1 ms
Temperature Drift < 10 %
Temperature Range -10...60 °C
Switching Output Voltage Drop < 2,5 V
Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit and Overload Protection yes
Reverse Polarity Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material CuZn, nickel-plated
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NC yes
MTTFd (EN ISO 13849-1) 4259,66 a
