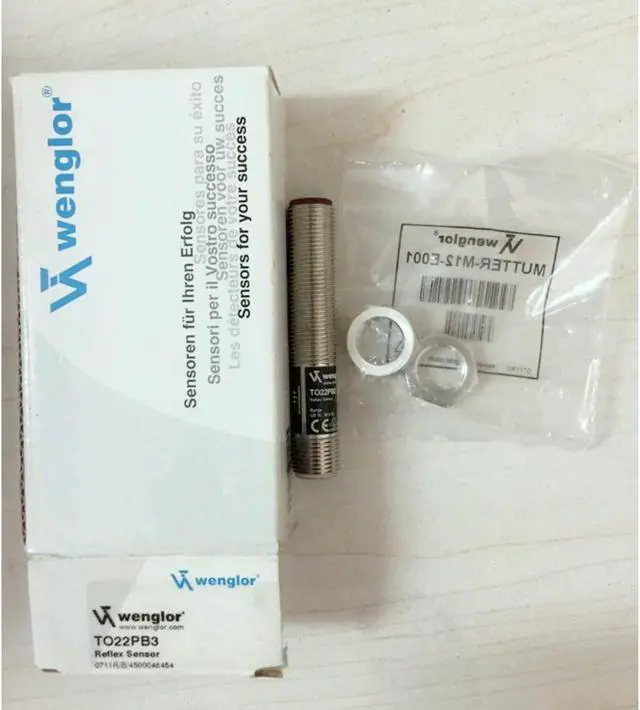

Wenglor Reflex Sensors TO22PB3 PNP New
- Wenglor Reflex Sensors TO22PB3 PNP New
+
+
Overview
Specs
Reviews
Wenglor Reflex Sensors TO22PB3 PNP New
Range 200 mm
Switching Hysteresis < 15 %
Light Source Infrared Light
Service Life (T = +25 °C) 100000 h
Risk Group (EN 62471) 1
Max. Ambient Light 10000 Lux
Opening Angle 12 °
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 800 Hz
Response Time 650 µs
Temperature Drift < 10 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material CuZn, nickel-plated
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NO yes
Range 200 mm
Switching Hysteresis < 15 %
Light Source Infrared Light
Service Life (T = +25 °C) 100000 h
Risk Group (EN 62471) 1
Max. Ambient Light 10000 Lux
Opening Angle 12 °
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 800 Hz
Response Time 650 µs
Temperature Drift < 10 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Setting Method Potentiometer
Housing Material CuZn, nickel-plated
Full Encapsulation yes
Degree of Protection IP67
Connection M12 × 1; 4-pin
PNP NO yes
