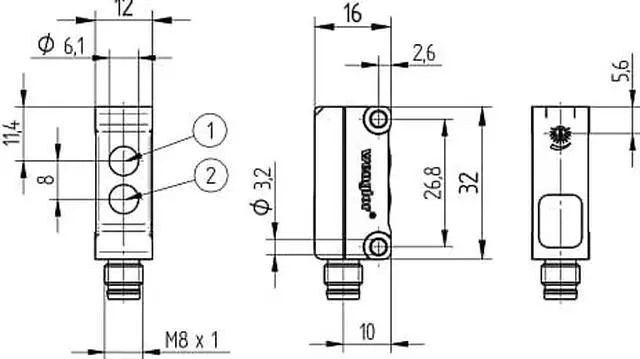

Wenglor Photoelectronic Sensors YK12NA7 NPN New
- Wenglor Photoelectronic Sensors YK12NA7 NPN New
+
+
Overview
Specs
Reviews
Wenglor Photoelectronic Sensors YK12NA7 NPN New
Range 120 mm
Adjustable Range 18...120 mm
Switching Hysteresis < 10 %
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10000 Lux
Light Spot Diameter see Table 1
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Switching Frequency 1300 Hz
Response Time 385 µs
Temperature Drift < 5 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
NPN Switching Output/Switching Current 100 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
FDA Accession Number 0820358-001
Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M8 × 1; 4-pin
NPN NO/NC antivalent yes
Range 120 mm
Adjustable Range 18...120 mm
Switching Hysteresis < 10 %
Light Source Laser (red)
Wavelength 655 nm
Service Life (T = +25 °C) 100000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10000 Lux
Light Spot Diameter see Table 1
Supply Voltage 10...30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Switching Frequency 1300 Hz
Response Time 385 µs
Temperature Drift < 5 %
Temperature Range -25...60 °C
Switching Output Voltage Drop < 2,5 V
NPN Switching Output/Switching Current 100 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
FDA Accession Number 0820358-001
Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67
Connection M8 × 1; 4-pin
NPN NO/NC antivalent yes
