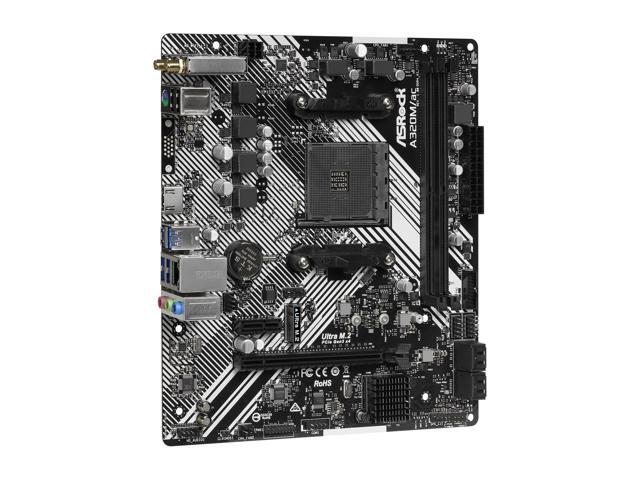

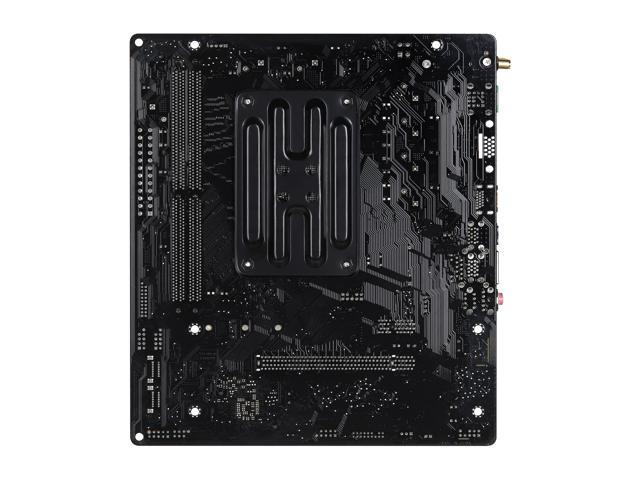

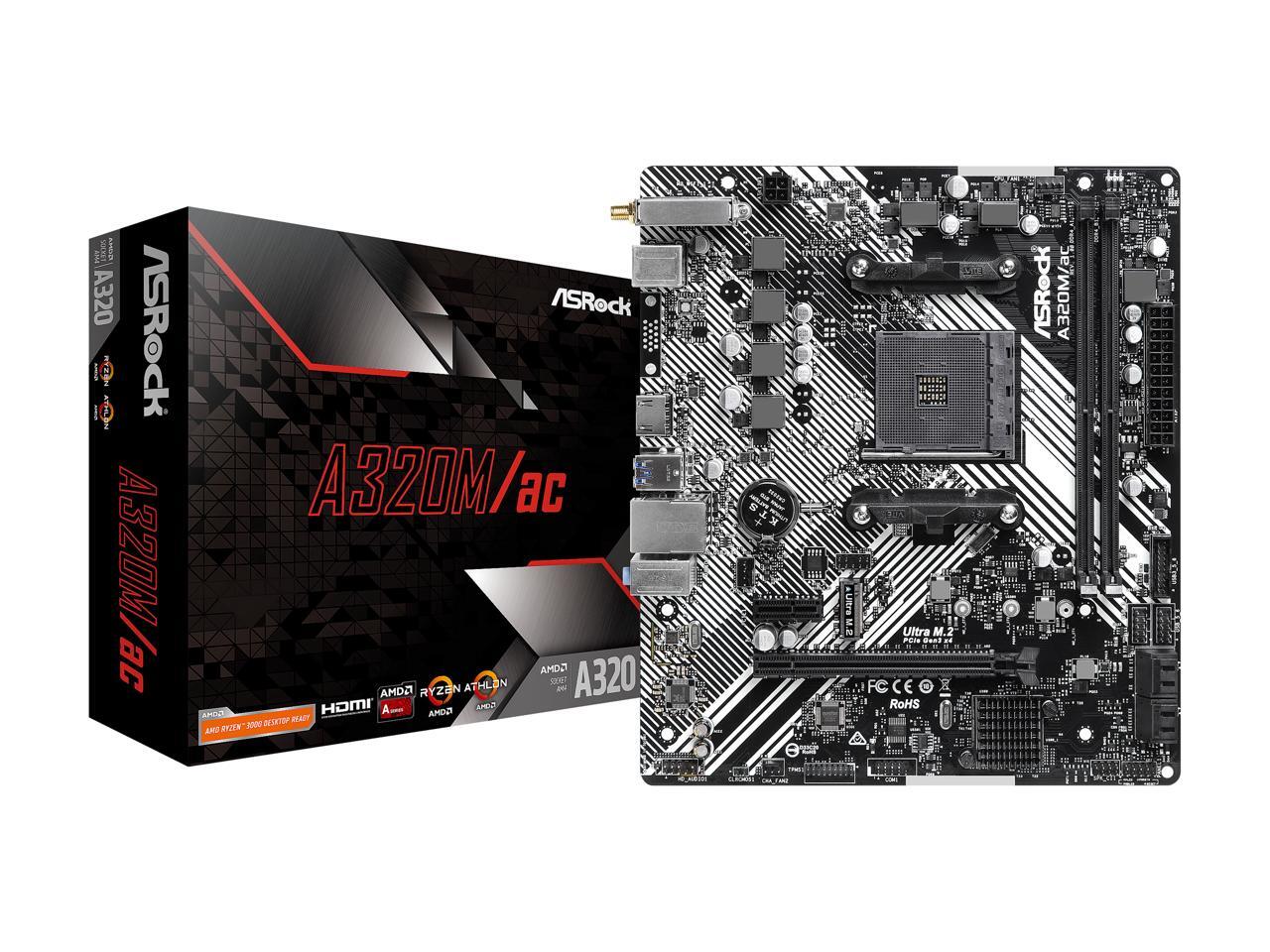

ASRock A320M/AC AM4 AMD A320 Micro ATX AMD Motherboard

Name: ASRock A320M/AC AM4 Micro ATX AMD Motherboard
Brand: ASRock
SKU: N82E16813162023
Rating: 4 (14 reviews)

AMD A320
Supports AMD A-Series APUs (Bristol Ridge) processors
Supports AMD Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) processors
DDR4 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Matisse))*
DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Raven Ridge))*
DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Pinnacle Ridge & Summit Ridge)))*
DDR4 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Picasso))*
DDR4 2400 / 2133 (AMD 7th Gen A-Series APUs)
* For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.

Specs

Reviews (14)

Learn more about the ASRock A320M/AC

Model
Brand	ASRock
Model	A320M/AC

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD A-Series APUs (Bristol Ridge) processors Supports AMD Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) processors

Chipsets
Chipset	AMD A320

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Matisse))* DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Raven Ridge))* DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Pinnacle Ridge & Summit Ridge)))* DDR4 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Picasso))* DDR4 2400 / 2133 (AMD 7th Gen A-Series APUs) * For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Maximum Memory Supported	32GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * Actual support may vary by CPU. * Supports NVMe SSD as boot disks.
PCI Express x1	1 x PCI Express 2.0 x1

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)* * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit.
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps
Wireless LAN	Intel 802.11ac WiFi Module IEEE802.11a/b/g/n/ac
Bluetooth	Bluetooth 4.2

Rear Panel Ports

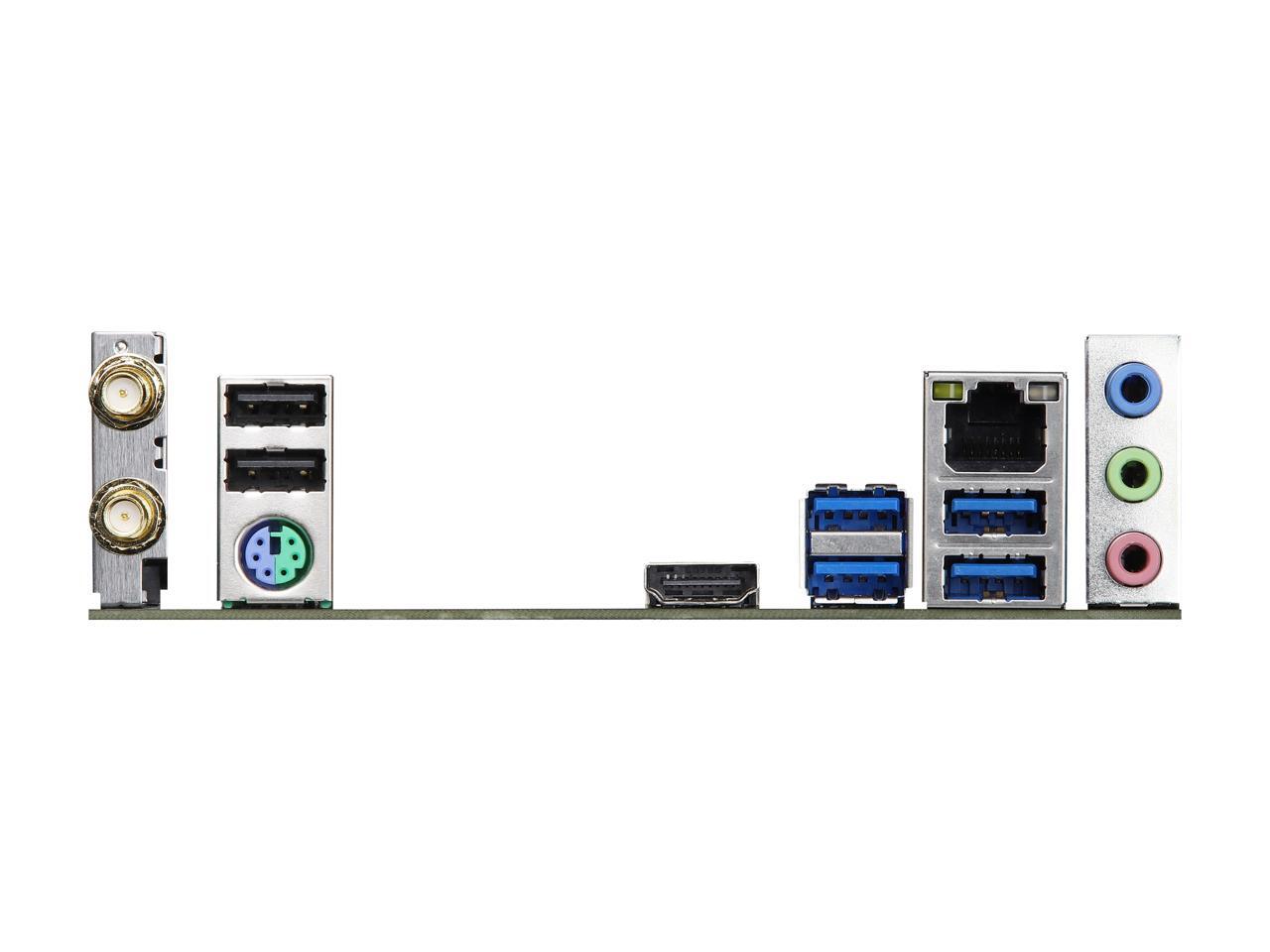

Back I/O Ports	2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x COM Port Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)** 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

Physical Spec
Form Factor	Micro ATX
LED Lighting	None RGB
Dimensions (W x L)	9.0" x 7.9"
Power Pin	1 x 24 pin ATX Power Connector 1 x 4 pin 12V Power Connector

Software Feature
Windows 11	Supported

Features
Features	Unique Feature: ASRock Super Alloy - High Density Glass Fabric PCB - Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore OS: - Microsoft Windows 10 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Packaging

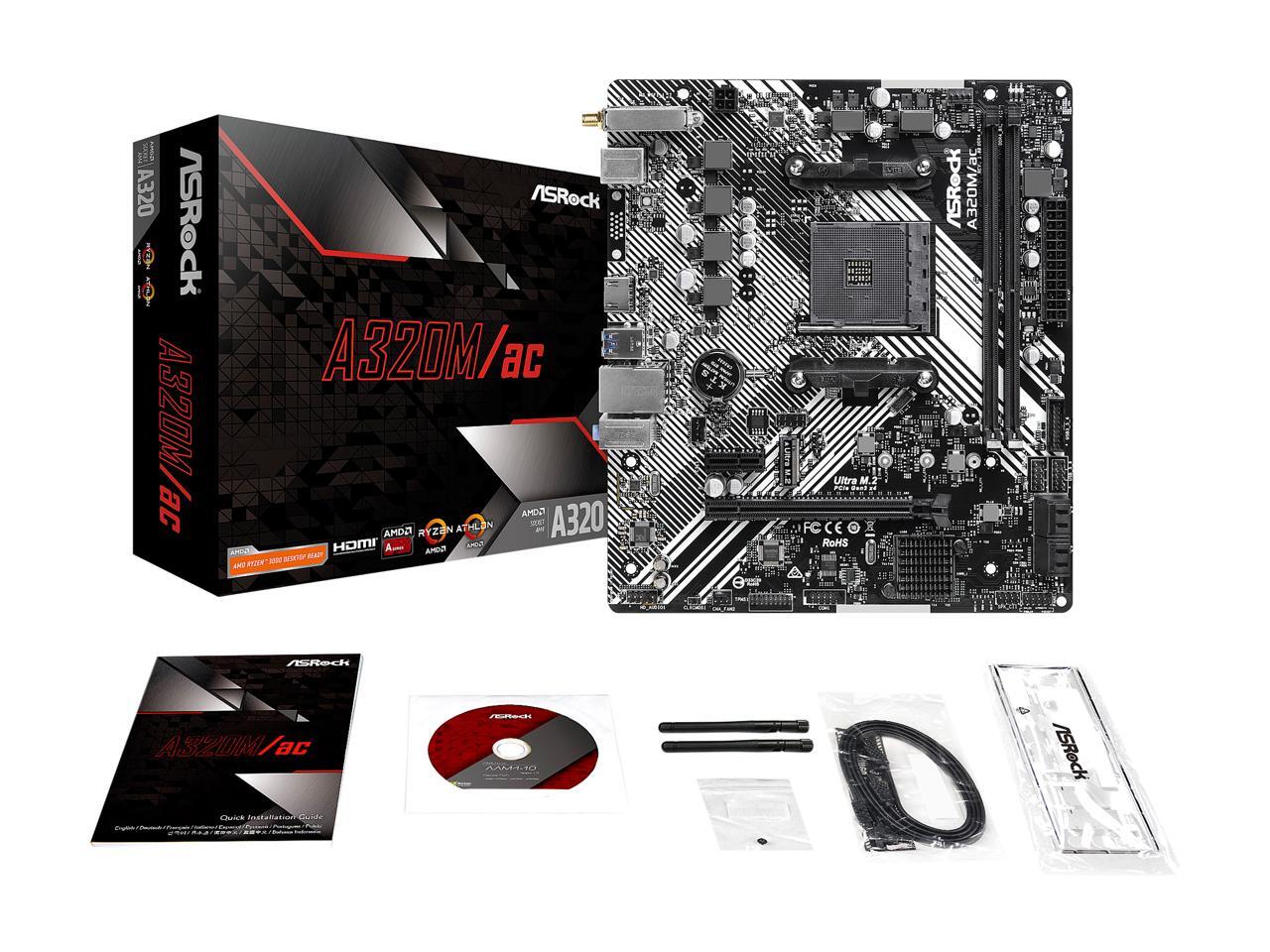

Package Contents	Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5 GHz Antennas - 1 x Screw for M.2 Socket
