ASRock H610M-HDV/M.2+ D5 LGA 1700 Micro ATX DDR5 Intel H610 SATA 6Gb/s Micro ATX Motherboard

(4)(1) Write a Review
  • Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
  • 6+1+1 Power Phase
  • Supports DDR5 5600MHz*
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
  • 1 USB 3.2 Gen1 Type-C (Rear), 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer
+
+
Specs
Reviews (4)

Learn more about the ASRock H610M-HDV/M.2+ D5

Model
Brand ASRock
Model H610M-HDV/M.2+ D5
Supported CPU
CPU Socket Type LGA 1700
CPU Type Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
Supported CPU Technologies Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Chipsets
Chipset Intel H610
Onboard Video
Onboard Video Chipset Integrated Graphics
Memory
Number of Memory Slots 2x288pin (DDR5)
Memory Standard 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600*
12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800*

* Actual support may vary by CPU
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported 96GB
Memory Feature Supports Intel Extreme Memory Profile (XMP) 3.0
Expansion Slots
PCI Express 4.0 x16 CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

* Supports NVMe SSD as boot disks
PCI Express x1 Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)*

* Supports NVMe SSD as boot disks
Storage Devices
Serial ATA (SATA) 4 x SATA 6Gb/s
M.2 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
* Supports NVMe SSD as boot disks
Onboard Audio
Audio Chipset 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek 8111H
Max LAN Speed 1Gbps

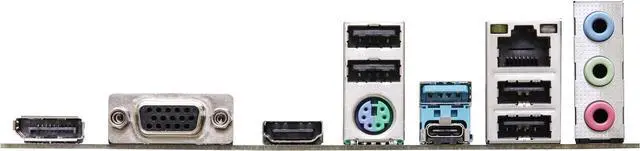

Rear Panel Ports
Back I/O Ports 1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
1 x USB 3.2 Gen1 Type-A Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Other Connectors - 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x Addressable LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x Front Panel Audio Connector

* Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1 supports the fan power up to 1A (12W).
*** CHA_FAN1/WP supports the fan power up to 2A (24W).
*** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Software Feature
Windows 11 Supported
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 8.6" x 7.6"
Power Pin - 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
Features
Features Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+1 Power Phase
EZ Update
- ASRock Auto Driver Installer
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Packaging
Package Contents - 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Additional Information
Date First Available October 05, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

  • Return for refund within: 30 days
  • This item is covered by BTE Outlet Return Policy
  • *Subject to applicable law

  • Warranty Notice:

    This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
