ASRock Rack D1749NTD4U-4Q Micro-ATX SoC Server Motherboard Intel® Xeon® D-1749NT processor PCIe4.0 4 SFP28 (Up to 25GbE)
- Micro-ATX (9.6" x 9.6")
- Support Intel® Xeon® D-1749NT processor
- Support 4 x DIMM slots (2DPC), supports DDR4 RDIMM, ECC/non-ECC UDIMM
- Support 1 x PCIe4.0 x16 or 2 SlimSAS (PCIe4.0 x8)
- Support 1 x PCIe3.0 x8 or 2 Mini-SAS HD (4 SATA 6Gb/s)
- Support 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s) or 4 SATA 7-pin
- Support up to 17 SATA 6Gb/s
- Support 4 x SFP28 (Up to 25GbE)
- Remote Management (IPMI)
+
+
Specs
Reviews
Learn more about the ASRock Rack D1749NTD4U-4Q
| Brand | AsRock Rack |
|---|---|
| Model | D1749NTD4U-4Q |
| CPU Type | Intel Xeon D-1749NT |
|---|---|
| Number of Processor Support | 1 |
| CPU Features | Thermal Design Power Up to 90W |
| Number of DDR4 Slots | 4 x 288-pin |
|---|---|
| DDR4 Standard | RDIMM: up to 2667 MHz ECC/non-ECC UDIMM: up to 2667 MHz |
| Maximum Memory Supported | Max. DIMM Frequency - RDIMM: up to 2667 MHz - ECC/non-ECC UDIMM: up to 2667 MHz |
| ECC Supported | Yes |
| Registered | Yes |
| PCI Express 4.0 x16 | SLOT7*: PCIe4.0 x16 [CPU] *SLOT7 shares lanes with 2 SlimSAS. -Slimline1 and Slimline2 will disable when SLOT7 (PCIe4.0 x16) is populated -Slimline1 will disable when SLOT7 (PCIe4.0 x8) is populated. |
|---|---|
| PCI Express x8 | SLOT6*: PCIe3.0 x8 [CPU] *SLOT6 shares lanes with 2 Mini-SAS HD by BIOS setting |
| Other Slots | 2 SlimSAS* (PCIe4.0 x8) [CPU] *SLOT7 shares lanes with 2 SlimSAS. -Slimline1 and Slimline2 will disable when SLOT7 (PCIe4.0 x16) is populated -Slimline1 will disable when SLOT7 (PCIe4.0 x8) is populated |
| SAS | 3 Mini-SAS HD*, 4 SATA 7-pin or 1 M2_2, 1 M2_1 *2 Mini-SAS HD shares lanes with SLOT6 by BIOS setting |
|---|---|
| M.2 | M2_1 (PCIe3.0 x4 or SATA 6Gb/s); support 22110/2280 form factor [CPU] M2_2* (PCIe3.0 x4 or SATA 6Gb/s); support 22110/2280 form factor [CPU] *M2_2 shares lanes with 4 SATA 7-pin; 4 SATA 7-pin will disable when M2_2 is populated |
| Number of LAN | 4 SFP28 (25GbE) |
|---|---|
| LAN Speed | 25Gbps |
| Max LAN Speed | 4 x 25Gbps |

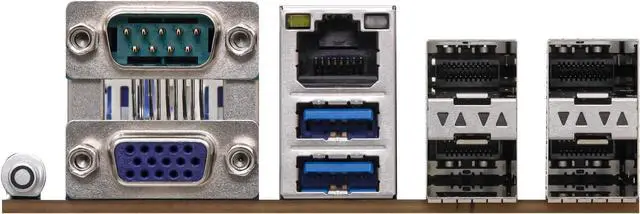

| Back I/O Ports | UID Button/LED: 1 UID button w/ LED VGA Port: 1 DB15 (VGA) Serial Port: 1 DB9 (COM) USB 3.2 Port: 2 Type-A (USB3.2 Gen1) RJ45: 1 dedicated IPMI Other network connector: 4 SFP28 (25GbE) |
|---|
| Onboard USB | USB 3.2 (Gen1) Header: 1 header (19-pin, 2 USB3.2 Gen1) |
|---|---|
| Other Connectors | Power Connector: 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 2 ( 8-pin, ATX 12V) support 12V DC-in Other Power Connectors: 1 (6-pin, SATA power) Auxiliary Panel Header: 1 (18-pin): chassis intrusion, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED VGA header: 1 (15-pin) Fan Header: 1 (4-pin, CPU fan), 5 (6-pin, SYS fans) TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI) VROC header: 1 SGPIO Header: 1 HSBP: 1 SMBus header: 1 PMBus header: 1 IPMB Header: 1 Clear CMOS: 1 NMI Header: 1 |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | November 21, 2023 |
|---|
