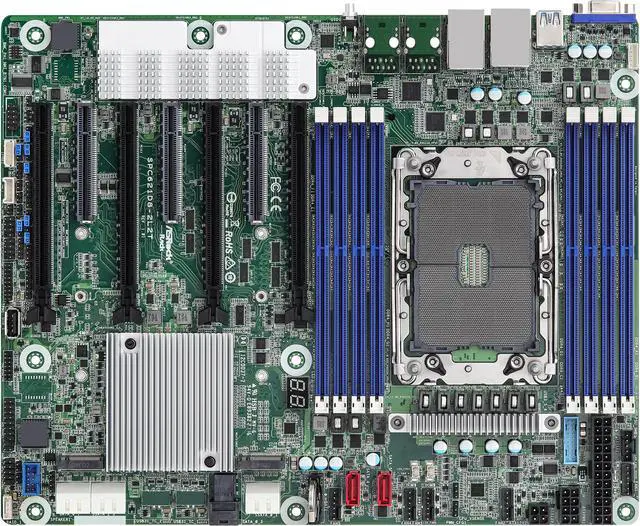

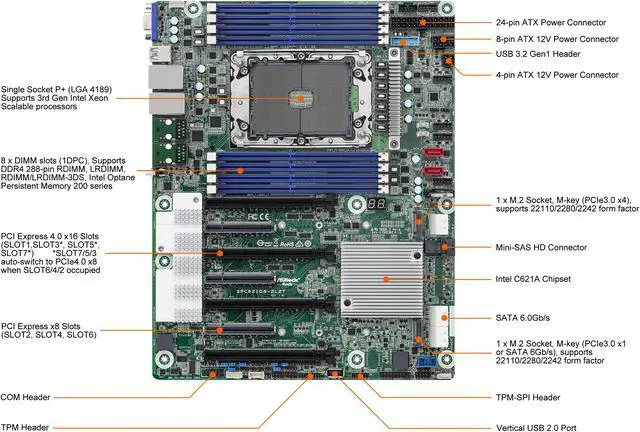

AsRock Rack SPC621D8 ATX Server Motherboard Single Socket P+ (LGA 4189) 3rd Gen Intel® Xeon® Scalable Processors C621A

Be the first to review this product...
  • ATX (12" x 9.6")
  • Supports 3rd Gen Intel Xeon Scalable Processors
  • 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel Optane Persistent Memory
  • 4 PCIe4.0 x16, 3 PCIe4.0 x8
  • Supports 1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
  • 13 SATA 6Gb/s (including 1 port from M.2)
  • 2 RJ45 (1GbE) by Intel i210
  • Remote management (IPMI)
+
+
Specs
Reviews

Learn more about the ASRock Rack SPC621D8

Model
Brand AsRock Rack
Model SPC621D8
Supported CPU
CPU Socket Type Socket P+
CPU Type Supports 3rd Gen Intel Xeon Scalable processors
Chipsets
North Bridge Intel C621A
Memory
Number of DDR4 Slots 8 x 288-pin
DDR4 Standard DDR4 3200
Expansion Slots
PCI Express 4.0 x16 SLOT7: PCIe4.0 x16*
SLOT5: PCIe4.0 x16*
SLOT3: PCIe4.0 x16*
SLOT1: PCIe4.0 x16

* SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied
PCI Express x8 SLOT6: PCIe4.0 x8
SLOT4: PCIe4.0 x8
SLOT2: PCIe4.0 x8
Storage Devices
SATA 13 x SATA 6.0Gb/s
M.2 1 M-key (PCIe3.0 x4), supports 22110/2280/2242 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard LAN
LAN Chipset Intel I210
LAN Speed 10/100/1000Mbps
Max LAN Speed 1Gbps
Rear Panel Ports

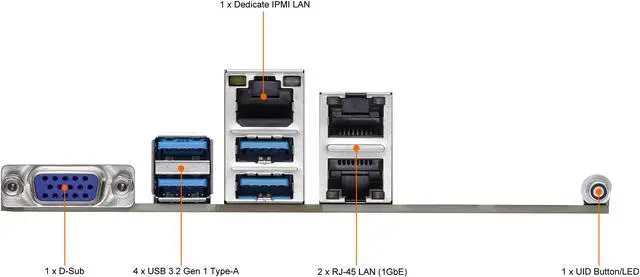

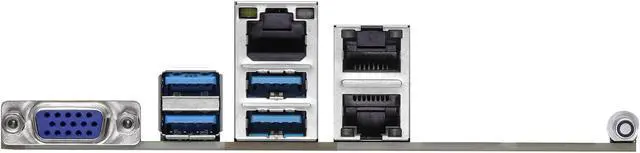

Back I/O Ports 1 x D-Sub / 2 x LAN (RJ45) / 4 x USB 3.2 Gen 1 Type-A
Onboard Ports
Other Connectors COM Header: 1
Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
TPM Header: 17-pin (LPC) or 13-pin (SPI)
Thermal Sensor Header: 1
IPMB Header: 1
VGA Header: 1
PMBus CONN: 1
Buzzer: 1
Fan Header: 5 (6-pin)
USB 3.2 (Gen1) Header: 1
USB 2.0 Header: 1
Type A USB 3.2 (Gen1) Port: 1
NMI Header: 1
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header: 1
BMC_SMB Header: 1
SGPIO Header: 1
VROC KEY: 1
Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V)
ME/SPS Recovery: 1
Clear CMOS: 1 (contact pads)
NC-SI: 1
Features
Features ATX (12" x 9.6")
Supports 3rd Gen Intel Xeon Scalable Processors
8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel Optane Persistent Memory
4 PCIe4.0 x16, 3 PCIe4.0 x8
1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
13 SATA 6Gb/s (including 1 port from M.2)
2 RJ45 (1GbE) by Intel i210
Remote management (IPMI)
Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
