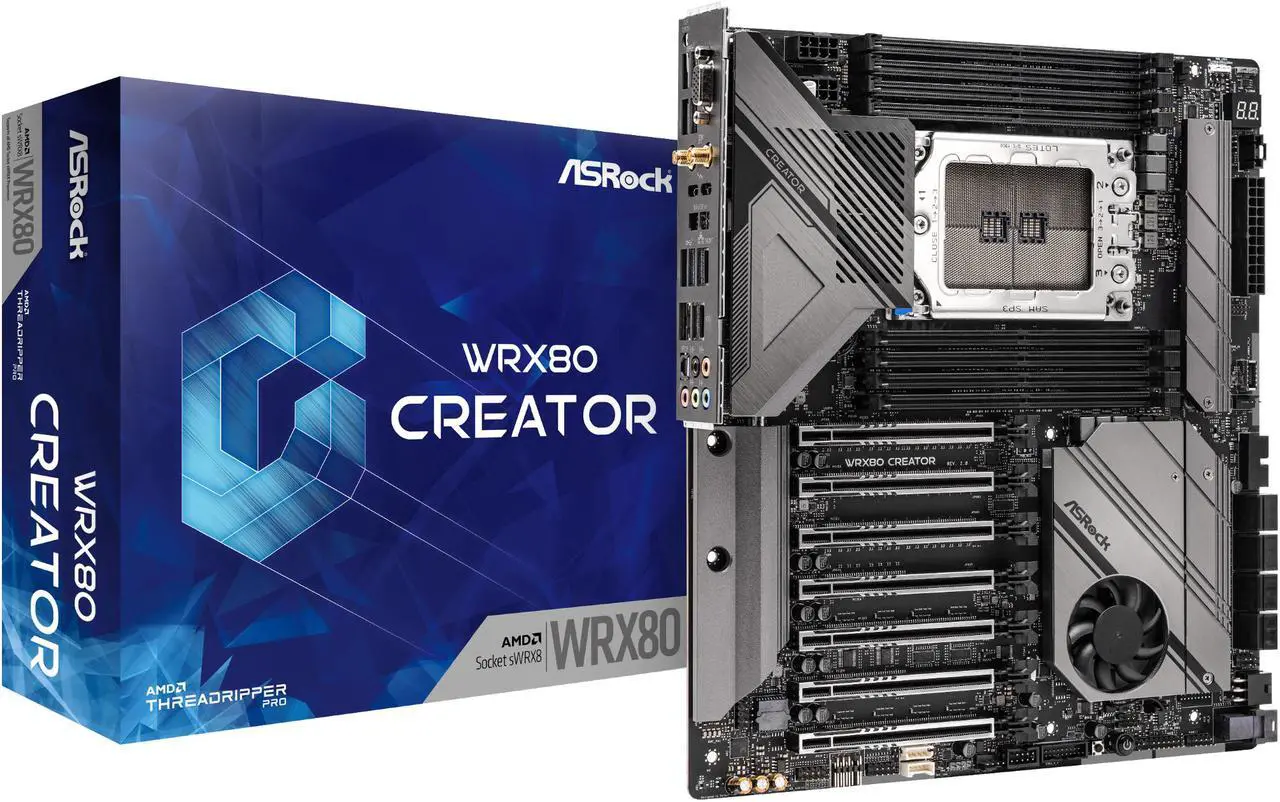

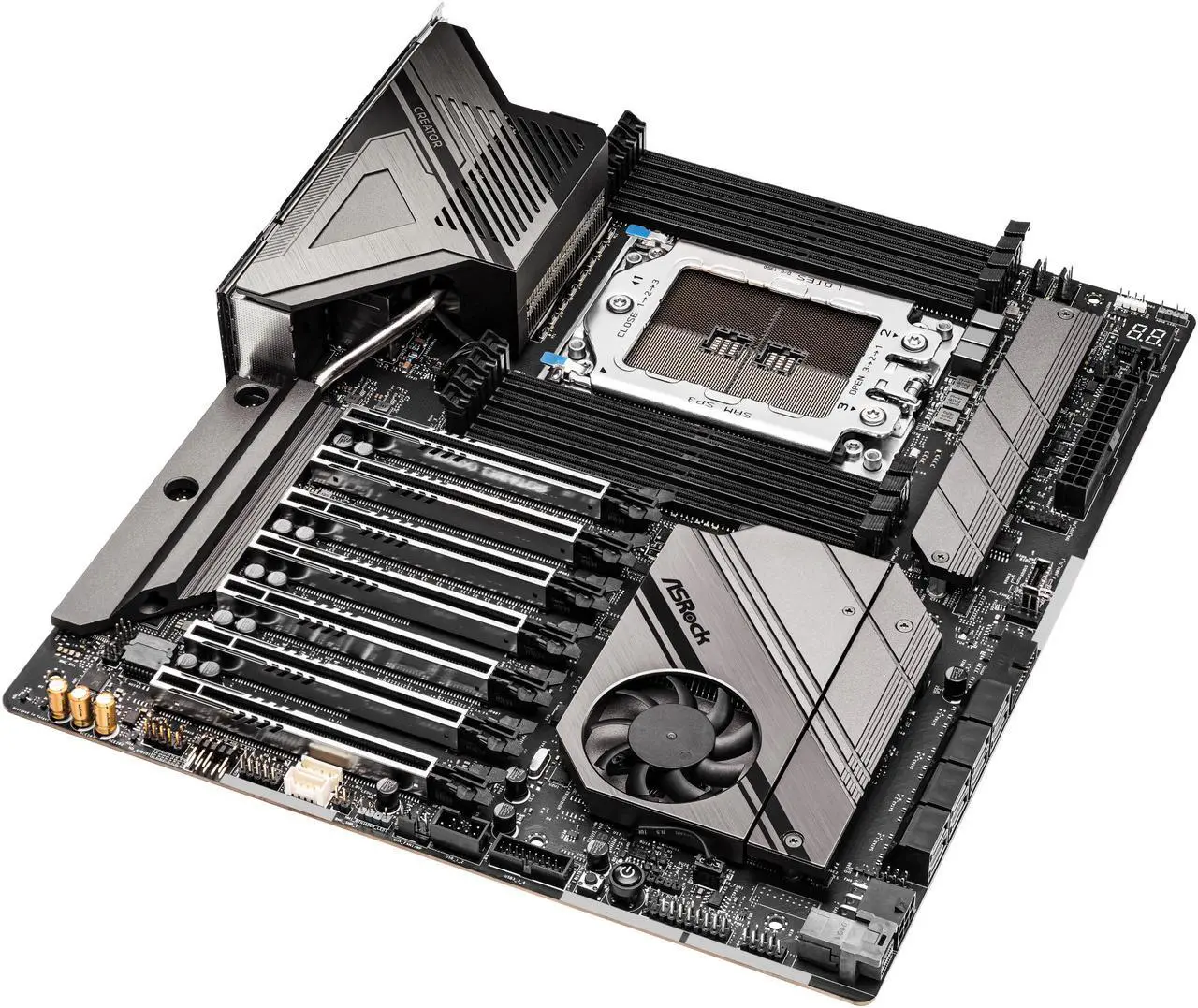

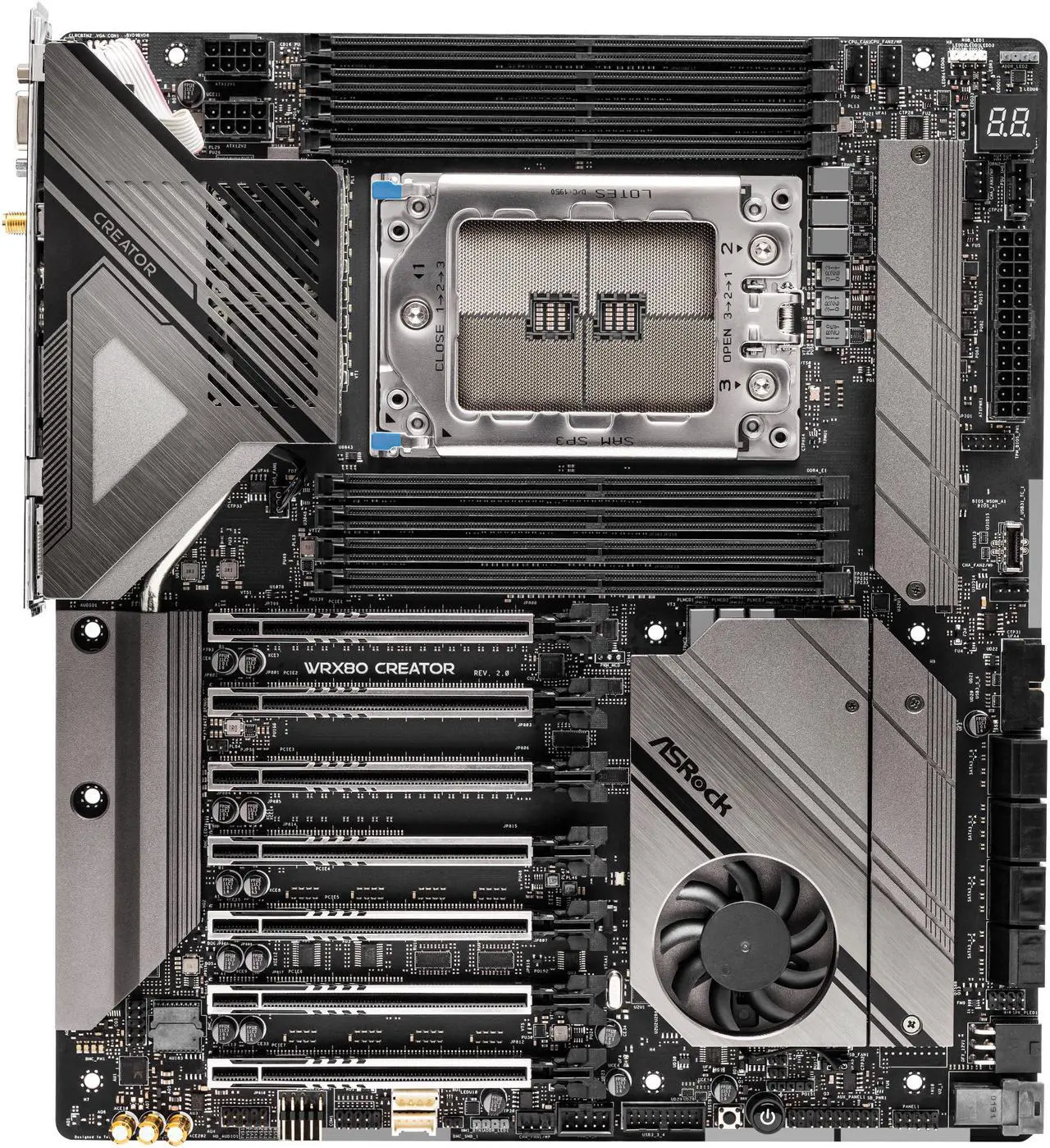

ASRock WRX80 CREATOR R2.0 AMD WRX80 SATA 6Gb/s Extended ATX AMD Motherboard EATX AMD Ryzen Threadripper PRO 3000WX/ 5000WX Dual 10Gbe LAN 1 Dedicated IPMI 2 Thunderbolt™ 4 Type-C

In stock. Limit 2 per customer.
Ships from United States.
  • Supports AMD Ryzen Threadripper PRO 3000WX/ 5000WX Series Processors.
  • 8 Power Phase Design, 105A SPS, Premium Power Choke.
  • XXL Aluminum Alloy Heatsink & Heatpipe Design.
  • 14 Layer Server-Grade Low-Loss PCB.
  • Supports DDR4 4400+(OC).
  • 7 PCIe 4.0 x16.
  • AMD 4-Way CrossFireX.
  • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4): 1 Hyper M.2 (PCIe Gen4 x4 & SATA3),1 U.2 (PCIe Gen3 x4).
  • 2 Thunderbolt 4 Type-C.
  • 5 USB 3.2 Gen2 (1 Front Type-C, 4 Rear).
  • 6 USB 3.2 Gen1 (4 Front, 2 Rear).
  • 7.1 CH HD Audio (Realtek ALC4050H+ALC1220),Nahimic Audio.
  • Dual Marvell (Aquantia) 10GbE LAN, 1 Dedicated IPMI LAN.
  • Intel® 802.11ax (WiFi 6E) + Bluetooth.

Learn more about the ASRock WRX80 CREATOR R2.0

Brand ASRock
Model WRX80 CREATOR R2.0
Supported CPU
CPU Socket Type sWRX8
CPU Type Supports AMD Socket sWRX8 for AMD Ryzen Threadripper PRO 5000WX and 3000WX Series Processors
- Intersil Digital PWM
- 8 Power Phase design
- Supports ASRock Hyper BCLK Engine III
Chipset AMD WRX80
Number of Memory Slots 8x288pin (DDR4)
Memory Standard Supports DDR4 ECC & non-ECC, buffered and un-buffered memory (U-DIMM) up to 4400+(OC)*
Supports DDR4 3200/2933/2667/2400/2133 ECC & non-ECC, buffered and un-buffered memory (R-DIMM and 3DS R-DIMM)*

* Supports DDR4 3200 natively.
* Please refer to Memory Support List on ASRock's website for more information. (
Maximum Memory Supported 2TB
Channel Supported Eight Channel
ECC Supported Yes
Memory Feature 15µ Gold Contact in DIMM Slots
Expansion Slots
PCI Express 4.0 x16 7 x PCIe 4.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE5/PCIE7 at x16; PCIE4/PCIE6 at x8)*
- 15µ Gold Contact in VGA PCIe Slots (PCIE1, PCIE2 ,PCIE3, PCIE5 and PCIE7)

* Supports NVMe SSD as boot disks
Other Slots 1 x U.2 Connector
Storage Devices
SATA 6Gb/s 8 x SATA 6Gb/s
M.2 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

2 x Hyper M.2 Sockets (Key M)
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*

* Requires additional M.2 NVMe expansion cards to support RAID 5
Onboard Video
Onboard Video Chipset Aspeed AST2500 BMC Controller
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Onboard Audio
Audio Chipset 7.1 CH HD Audio (Realtek ALC4050H+ALC1220)
Premium Blu-ray Audio support
Supports Surge Protection
NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
Pure Power-In
Direct Drive Technology
PCB Isolate Shielding
Impedance Sensing on Rear Out port
Individual PCB Layers for R/L Audio Channel
Gold Audio Jacks
15µ Gold Audio Connector
Nahimic Audio
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS)
- Support Wake-On-LAN
- Support PXE
1 x Dedicated IPMI (ASPEED AST2500)
- Supports iKVM and vMedia
Max LAN Speed 2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s

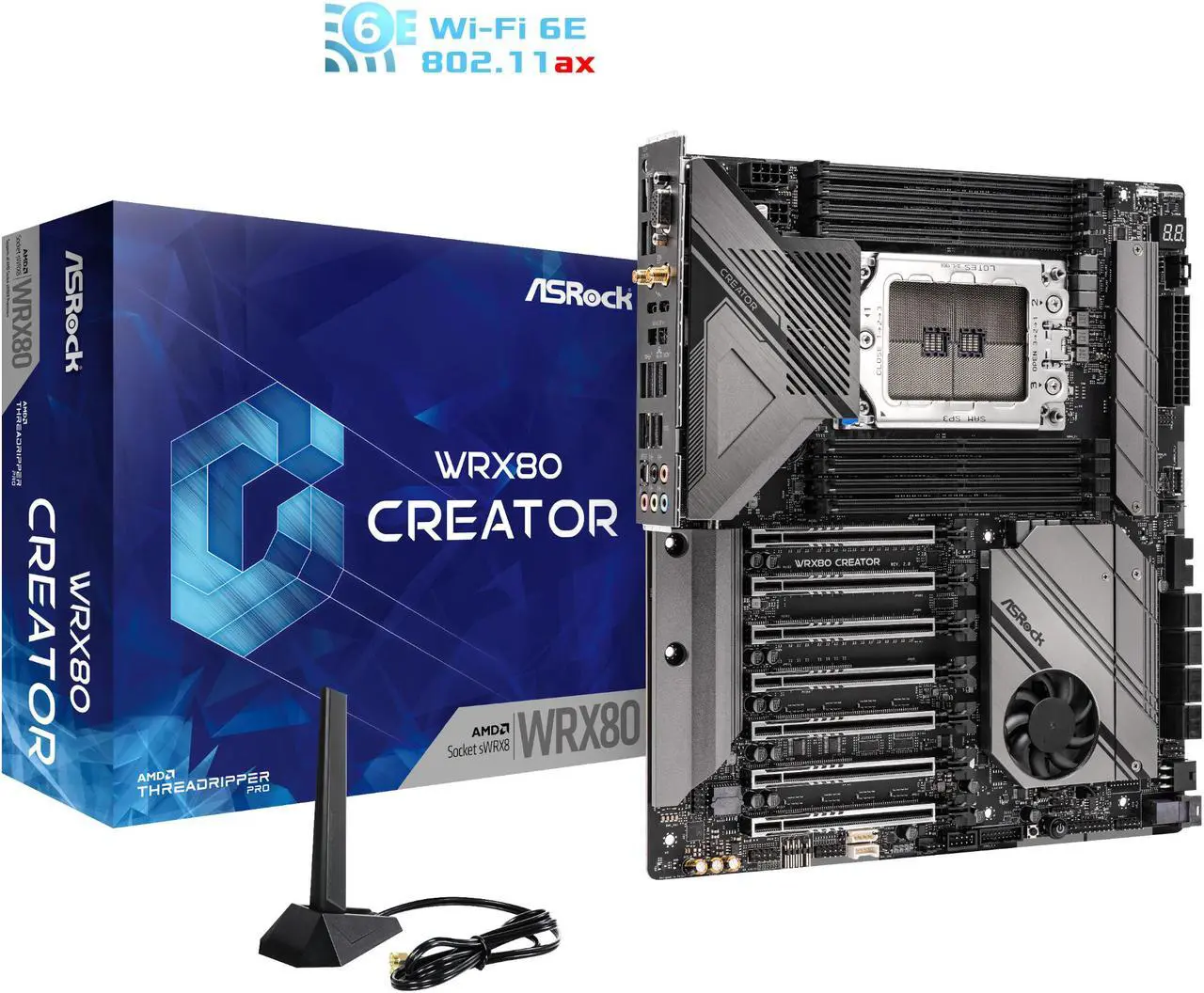

Wireless LAN 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth + High speed class II
Supports MU-MIMO

* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
* A 6GHz compatible router is required for 6E functionality.
Bluetooth Yes

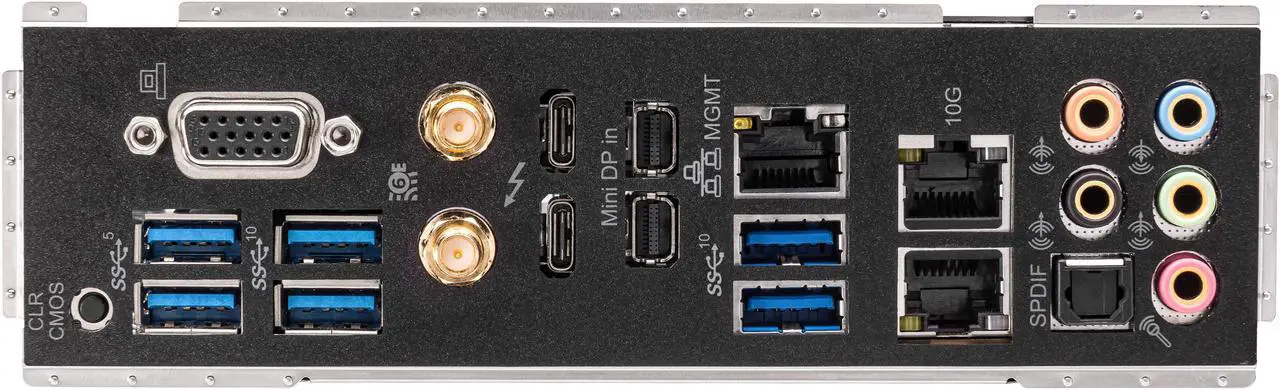

Rear Panel Ports
Back I/O Ports 2 x Antenna Ports
1 x D-Sub Port
1 x Optical SPDIF Out Port
2 x USB 4.0 Thunderbolt 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)*
2 x Mini DisplayPort Input Ports**(For Thunderbolt)
4 x USB 3.2 Gen2 Ports (10 Gb/s) (Supports ESD Protection)***
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
1 x RJ45 Dedicated IPMI LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Line in / Front Speaker / Microphone (Gold Audio Jacks)

* Supports USB-PD 3.0 9V/3A(27W) and 5V/3A(15W)
** Please choose regular mini DisplayPort to DisplayPort adapter cables instead of right angled ones if you use two mini DisplayPort input ports simultaneously.
*** Ultra USB Power is supported on USB31_1_2 ports.
*** ACPI wake-up function is not supported on USB31_1_2 ports.
Internal I/O Connectors
Other Connectors 1 x SPI TPM Header
1 x COM Port Header
1 x Intelligent Platform Management Bus Header
1 x PSU SMBus Header
1 x BMC SMBus Header
1 x Auxiliary Panel Header
1 x Power LED and Speaker Header
1 x RGB LED Header
- Supports in total up to 12V/3A, 36W LED Strip
2 x Addressable LED Headers
- Support in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
- The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
- CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
1 x Right Angle Front Panel Audio Connector
- Connect the audio device to either one of the audio connectors.
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
1 x Non Maskable Interrupt Button Header
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button
Physical Spec
Form Factor Extended ATX
- 14 Layer PCB
- 2oz Copper PCB
LED Lighting RGB
Dimensions (W x L) 12.0" x 10.7"
Power Pin 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- We recommend using a PSU with a max. current of 3A on +5VSB.
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 6 pin 12V Power Connector (Hi-Density Power Connector)
Windows 11 Compatibility
Windows 11 Supported
Additional Information
Date First Available October 13, 2022
