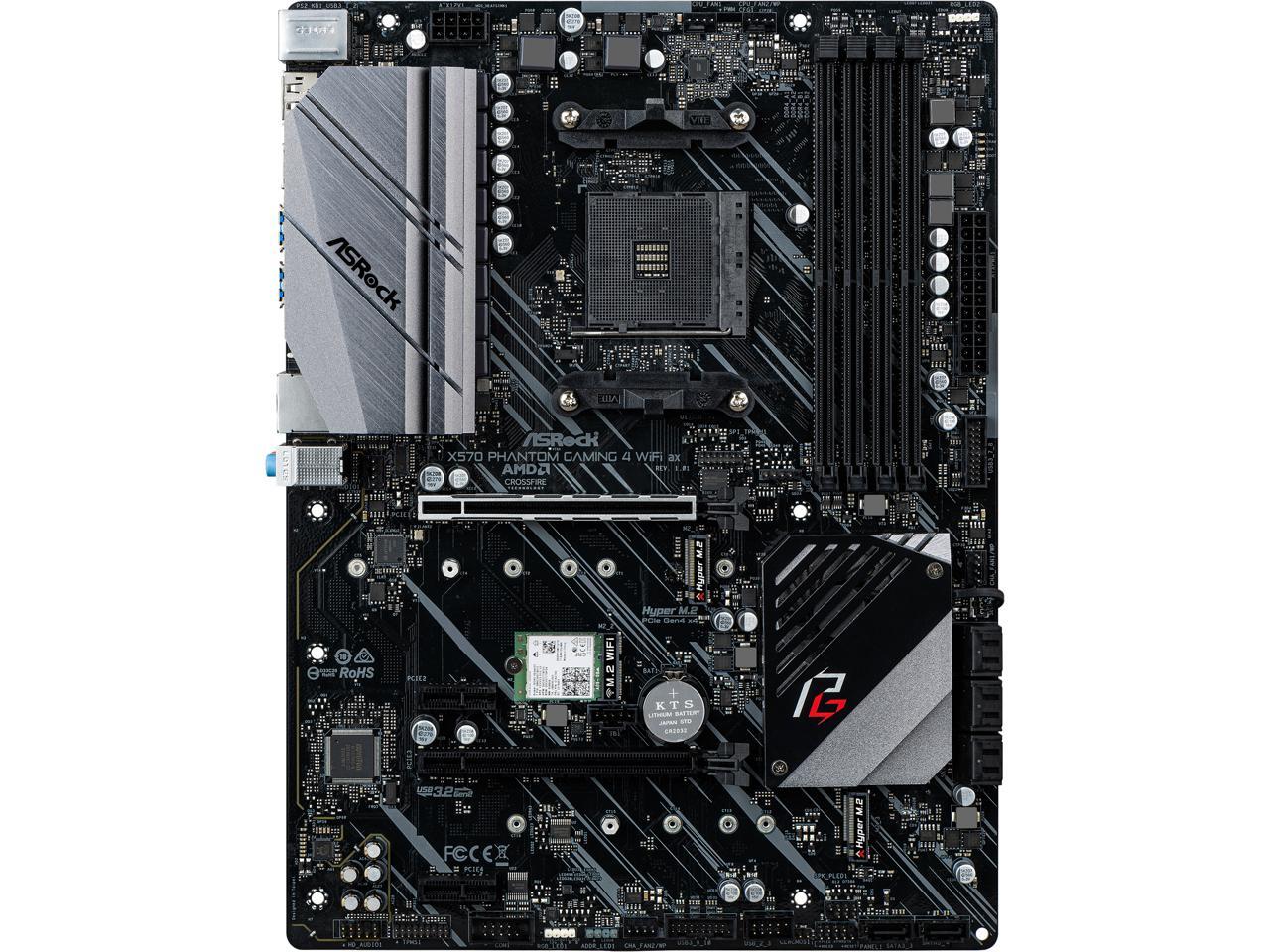

- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series Processors
- 10 Power-Phase Design
- Supports DDR4 4066+ (OC)
- 2x PCIe 4.0 x16, 2x PCIe 4.0 x1 and 1x M.2(Key E) for WiFi
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
- 8x SATA3, 1x Hyper M.2 (PCIe Gen4 x4 & SATA3) and 1x Hyper M.2 (PCIe Gen4 x4)

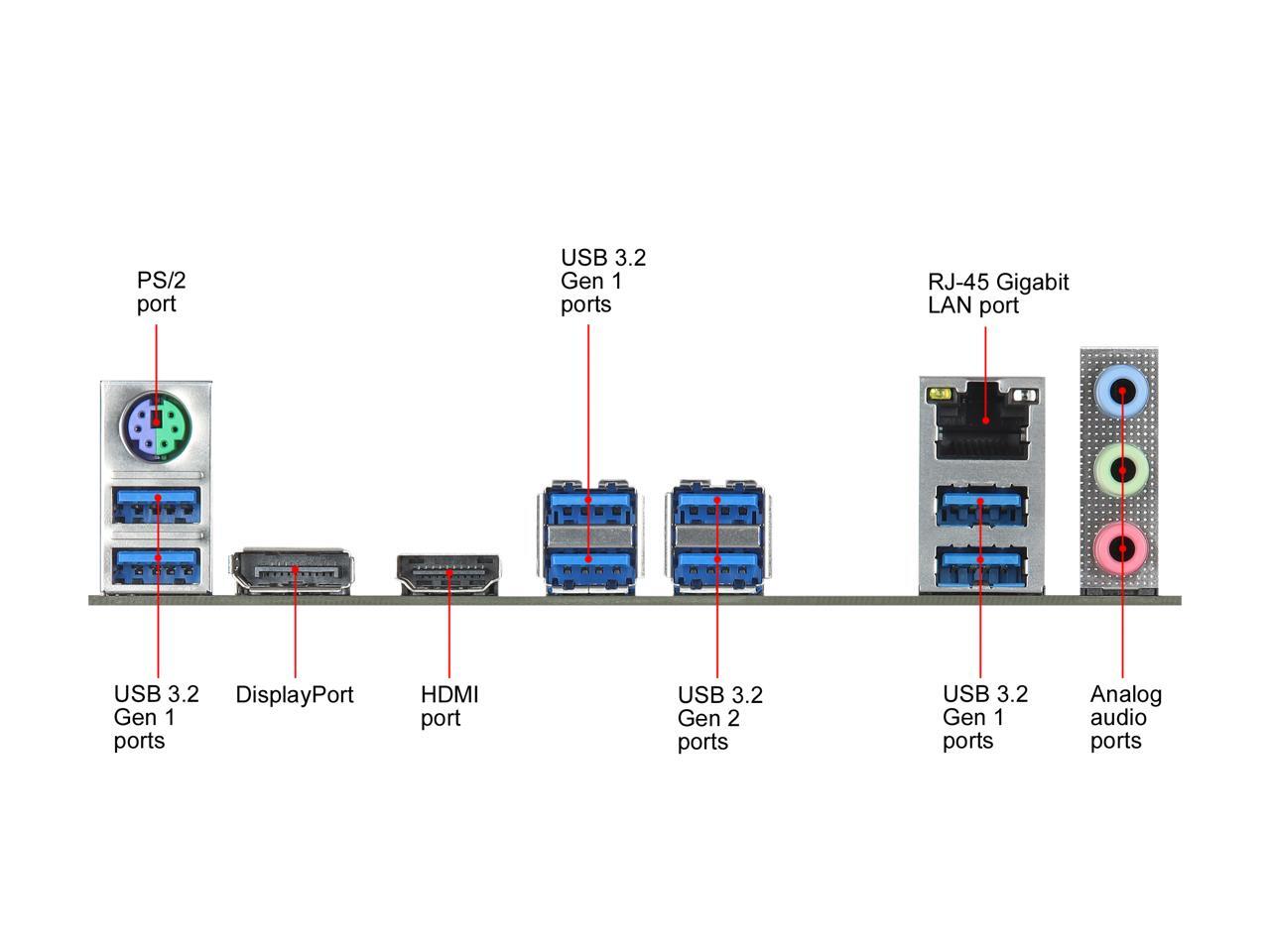

- 2x USB 3.2 Gen 2 (Rear Type-A) and 10x USB 3.2 Gen 1 (4x Front, 6x Rear)
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) + Intel® Gigabit LAN
- ASRock Polychrome SYNC
Your PC Transformed
A More Reliable Design That Delivers
The next-generation PCI Express 4.0 is capable of performing at twice the speed, compared to previous 3rd generation. ASRock's exclusive steel slot with extra anchor points are revolutionary additions that ensure signal stability and also make sure heavy graphics cards can be well-installed into the PCI-E slot safely.
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data-transferring experience.
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen 2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2x USB 3.2 Gen 2 ports onboard allows you to have a stunning data-transfer experience.
Welcome to the new Wi-Fi standard! ASRock's motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4GHz and 5GHz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver an ultimate network experience to users!
Thunderbolt 3 is no longer limited to certain chipset, ASRock is the first motherboard manufacturer to skillfully implement the Thunderbolt 3 technology onto AMD X570 motherboards. All you need is a Thunderbolt 3 AIC R2.0 card!1: Only three TB3 devices can be detected.
2: Some USB 3.2 Type-C devices will cause system reboot after wake up from S3/S4.
3: Cannot light up the TB3 monitor after wake up from S3/S4, re-plug the cable is needed.
4: Does not support Thunderbolt 3 PCIe graphics card box.
Extra-large aluminum alloy heat sinks effectively take away heat from the MOSFET and chipset so that your whole system may perform more stably.
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Using a high-density glass-fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Using only carefully selected copper materials for PCB layers, 2oz copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Who says high-quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
