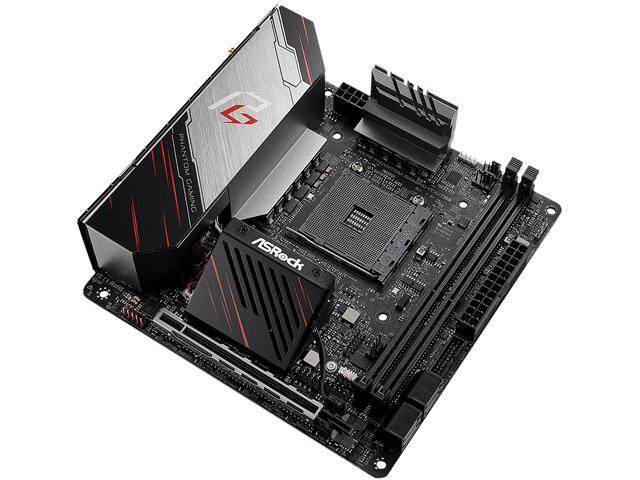

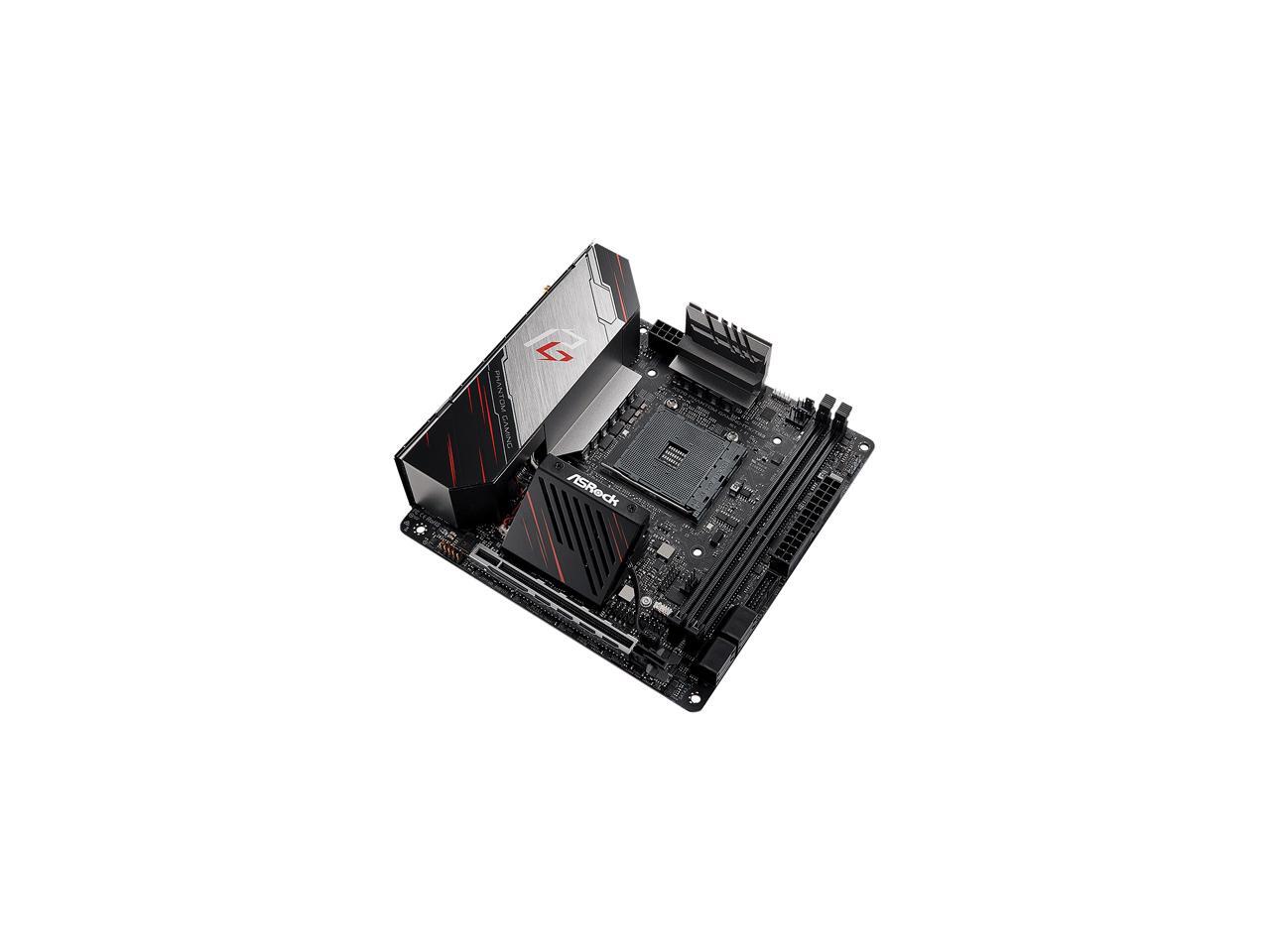

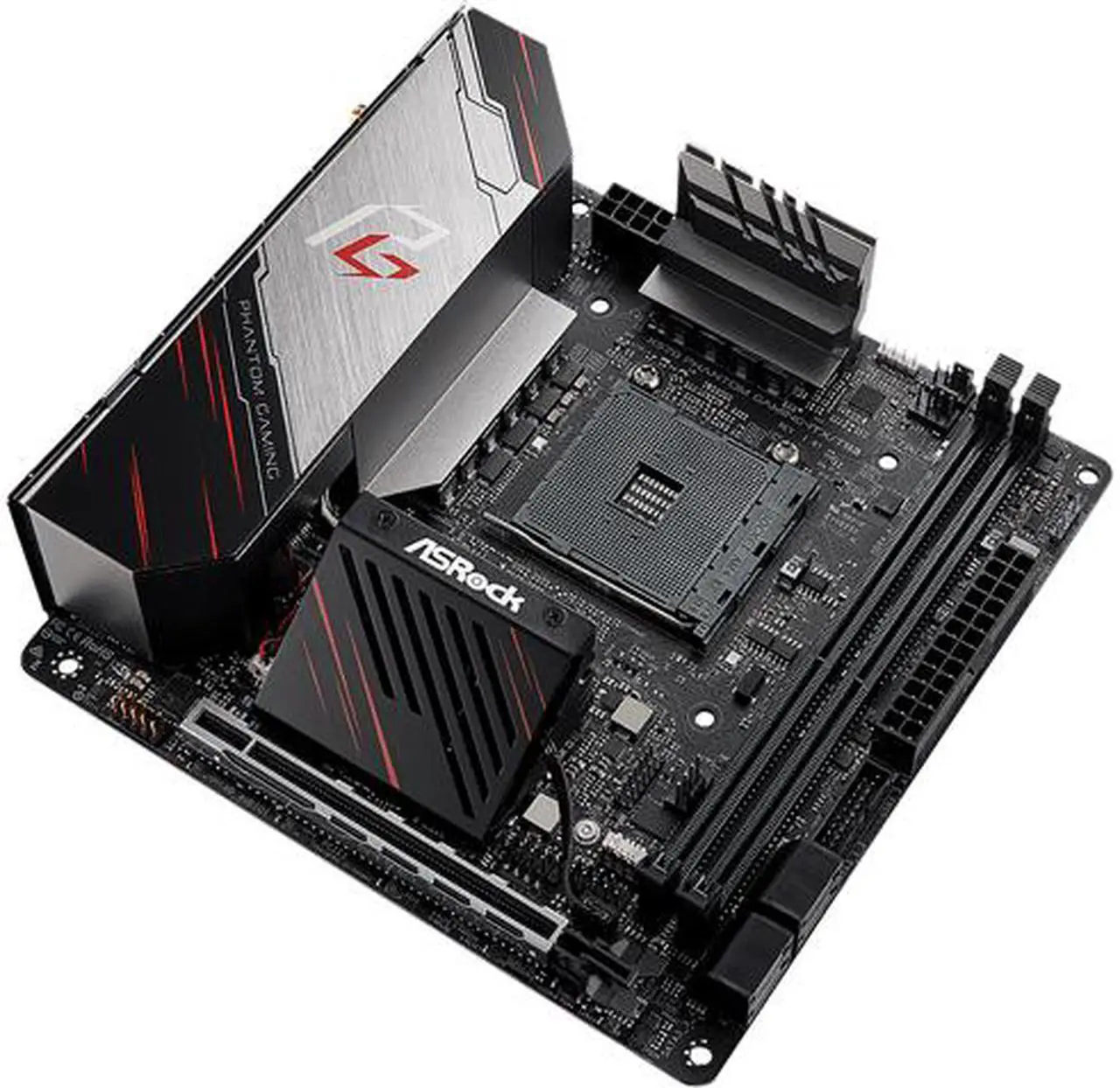

ASRock X570PHANTOMGAMING-ITX/TB3 AM4 AMD X570 SATA 6Gb/s Mini ITX AMD Motherboard

Be the first to review this product...
See more "x570 itx"
In stock. Limit 10 per customer.
Ships from United States.
  • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
  • AMD X570
  • Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
  • AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
+
+
Specs
Reviews

Learn more about the ASRock X570PHANTOMGAMING-ITX/TB3

Model
Brand ASRock
Model X570PHANTOMGAMING-ITX/TB3
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list.
Chipsets
Chipset AMD X570
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory*
* For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported 64GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 AMD Ryzen series CPUs (Matisse)
- 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series CPUs (Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD Ryzen series CPUs (Picasso)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*

* Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
* Supports NVMe SSD as boot disks
Other Slots 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Storage Devices
SATA 6Gb/s 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2 1 x Hyper M.2 Socket, supports M Key type 2280 M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with Matisse) or Gen3 x4 (32Gb/s) (with Pinnacle Ridge and Picasso)*

* Supports NVMe SSD as boot disks
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 Input with max. resolution up to 4K x 2K (4096x2160) @ 60Hz***
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.0
Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.4 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports

* Actual support may vary by CPU.
** The Max shared memory 16GB requires 32GB system memory installed.
*** DisplayPort 1.4 Input is used to connect a Type-C Monitor.
Onboard Audio
Audio Chipset Realtek ALC1220
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel i211AT
Max LAN Speed 1Gbps
Wireless LAN Intel 802.11 ax Wi-Fi Module
Supports IEEE 802.11 a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports Wi-Fi 6 802.11 ax (2.4 Gbps)
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports MU-MIMO
Bluetooth Supports Bluetooth 5.0 + High speed class II
Rear Panel Ports
Back I/O Ports 2 x Antenna Ports (on I/O Panel Shield)
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4 Input
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Thunderbolt Type-C Port (40Gb/s for Thunderbolt protocol; 10Gb/s for USB3.2 protocol) (Supports ESD Protection)
2 x USB 3.2 Gen2 Type-A Ports (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O Connectors
Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors 1 x SPI TPM Header
1 x RGB LED Header*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector (15µ Gold Audio Connector)

* Supports in total up to 12V/3A, 36W LED Strip.
** Supports in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
Physical Spec
Form Factor Mini ITX
LED Lighting RGB
Dimensions (W x L) 6.7" x 6.7"
Power Pin 1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
Windows 11 Compatibility
Windows 11 Supported
Additional Information
Date First Available April 27, 2020
