Continuing where the popular Grandia GD05 left off, the Milo ML03 HTPC case again combines the full size features of Grandia series with small form factor dimensions. The slimmer Milo ML03 has a profile of 105mm height and 340mm depth, making it extremely easy to integrate into any living room furniture. Incredibly, this case can accommodate up to three 3.5” hard drives or five 2.5” HDD/SSD through its smartly designed drive cages that can mount either size without any use of adapters. For cooling, the ML03 can be fitted with up to four 80mm fans so users can choose to build a quiet system with low power components or a powerful HTPC with 140W CPU if needed.
There are also numerous small touches including pre-cut hole for VGA (D-SUB) connector, Kensington lock support, and an additional full size expansion slot for installing extra motherboard I/O, fan controller, or accessories products such as CLEARCMOS. For those looking to build an HTPC with good expansion and cooling capability but has limited room and budget, the SilverStone Milo ML03 is the one to get.
MILO ML03B
Low Profile
Without Sacrificing Expansion Options
Continuing where the popular Grandia GD05 left off, the Milo ML03 HTPC case again combines the full size features of the Grandia series with small form factor dimensions. The slimmer Milo ML03 stands only 4.1in. (105mm) high and 13.3in. (340mm) deep, making it extremely easy to integrate into any living room. Incredibly, this case can accommodate up to three 3.5in. hard drives or five 2.5in. HDDs or SSDs through its intelligently-designed drive cages; what's more, it can mount either size without the use of adapters.
For cooling, the ML03 can be outfitted with up to four 80mm fans - that way, users can choose to build a quiet system with low power components or a powerful HTPC with a 140W CPU if needed. There are also numerous small touches including a pre-cut eyelet for VGA (D-SUB) connector, Kensington lock support, and an additional full size expansion slot for installing extra motherboard I/O, fan controller, or accessories products such as CLEARCMOS. For those looking to build an HTPC with good expansion and cooling capability but has limited room and budget, the SilverStone Milo ML03 is the one to get.
Supports up to four 80mm fans

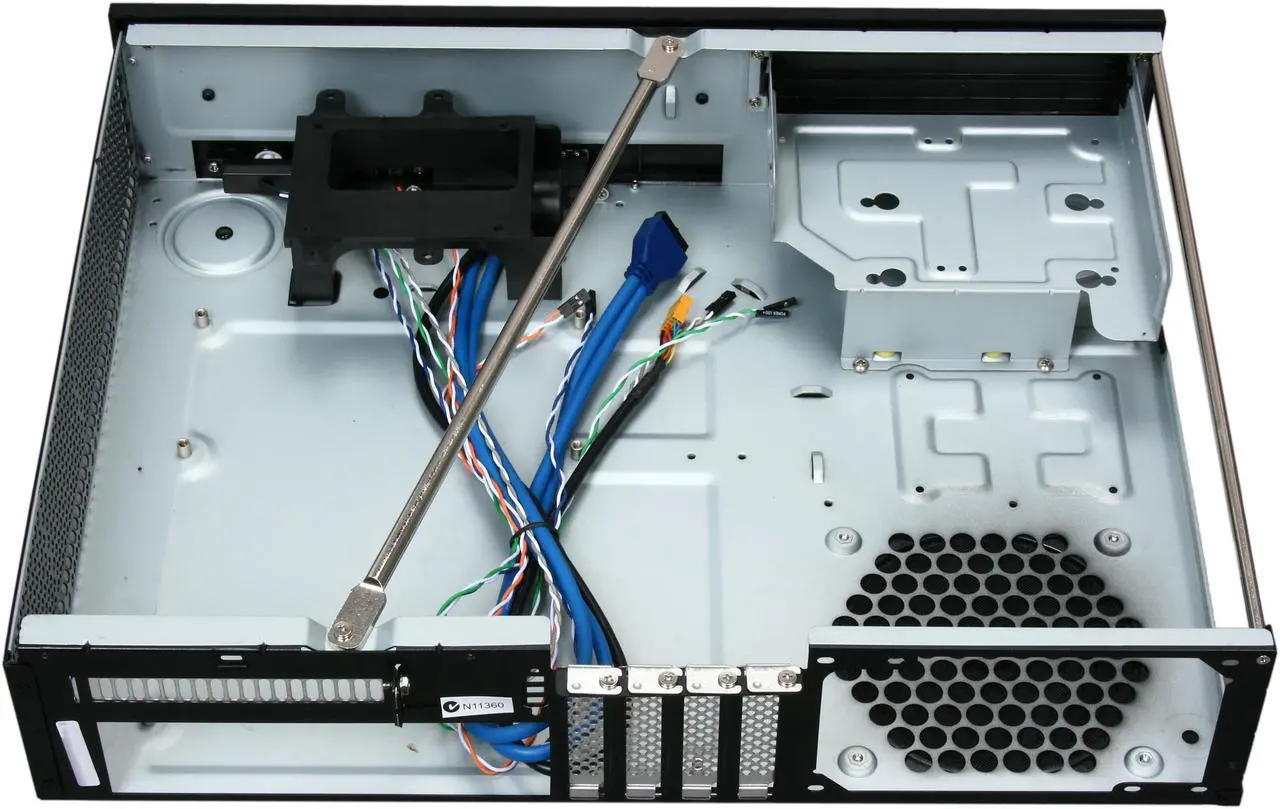

Drive cages with multi-purpose mounts eliminate need for adapters
Easy to install and route cables
Supports standard PS2 (ATX) power supplies
Supports low profile expansion cards
Includes two USB 3.0 ports
Learn more about the Silverstone ML03B
Model
Brand
SILVERSTONE
Series
MILO Series
Model
ML03B
Details
Type
Micro ATX Media Center / HTPC Case
Color
Black
Case Material
Aluminum skin reinforced plastic front panel, 0.8mm SECC body
Power Supply
No
Motherboard Compatibility
Micro ATX, Mini-DTX, Mini-ITX
Expansion
External 5.25" Drive Bays
1 (compatible with one 3.5" HDD or two 2.5" HDD/SSD)
Internal 3.5" Drive Bays
2 (compatible with one 2.5" HDD each)
Internal 2.5" Drive Bays
1
Expansion Slots
4 low profile +1 utility
Front Ports
Front USB Ports
USB 3.0 x 2
Front FireWire Ports
No
Front Audio Ports
audio x , MIC x 1
Front eSATA Ports
No
Front Card Reader
No
Remote Control Module
No
Front Display
No
Features
Features
Support up to four 80mm fans
Drive cages with multi-purpose mounts eliminate need for adapters
Easy to install and cable route
Support standard PS2(ATX) power supplies
Support low profile expansion cards
Includes two USB 3.0 ports
Dimensions & Weight
Height
4.13"
Width
17.32"
Depth
13.39"
Weight
7.28 lbs.
Manufacturer Warranty
Parts
1 year limited
Labor
1 year limited
Additional Information
Date First Available
December 14, 2010
