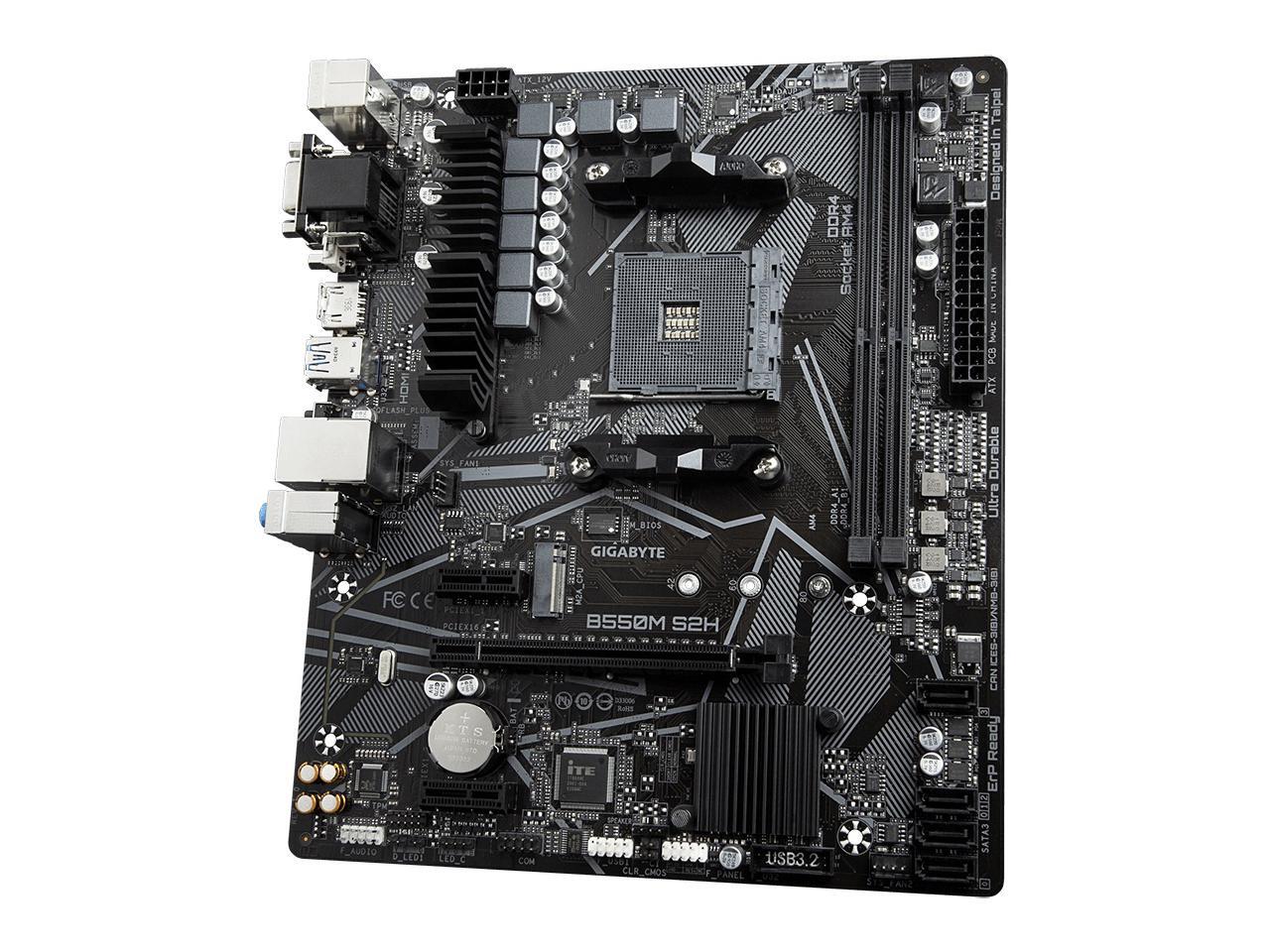

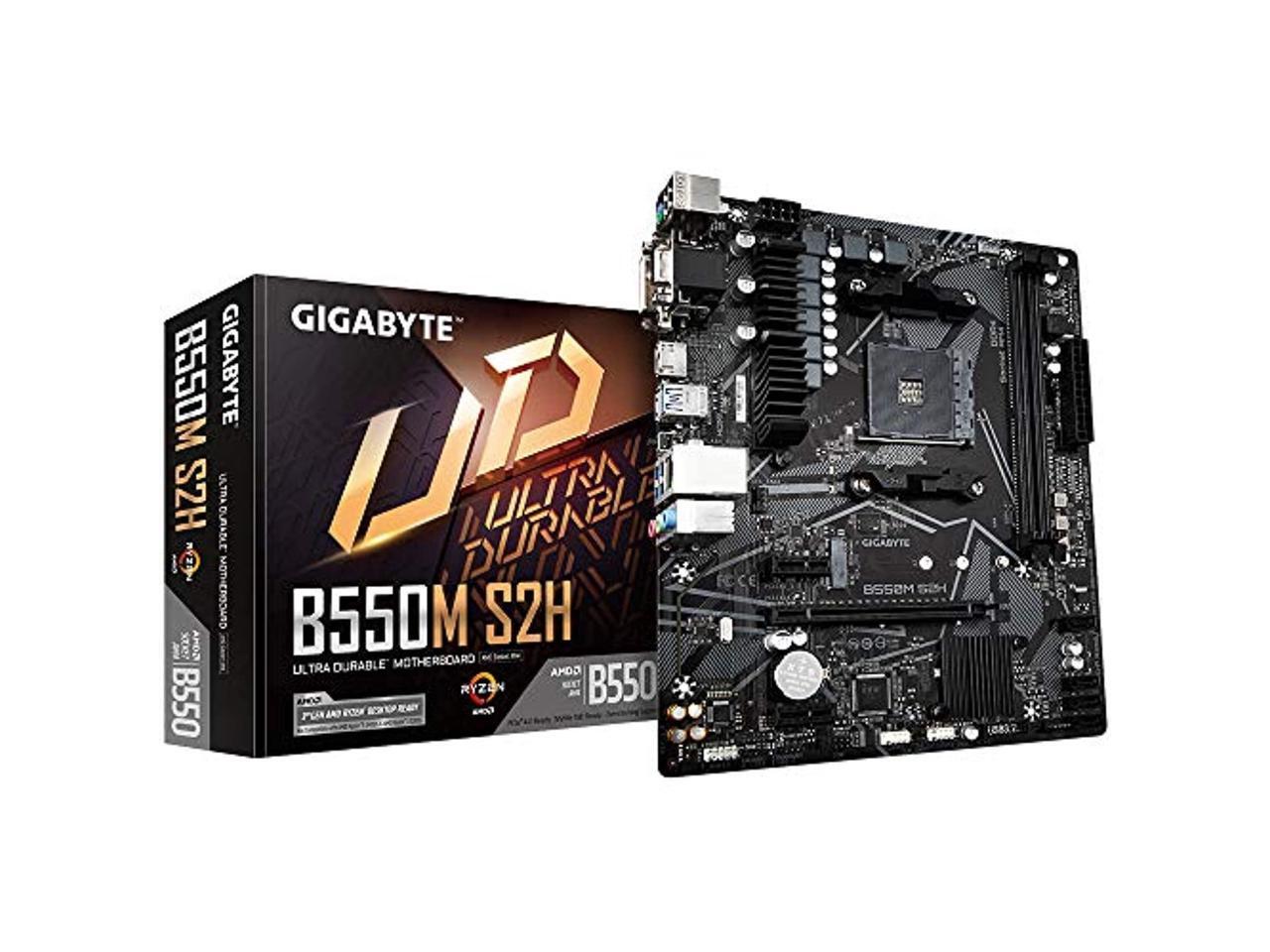

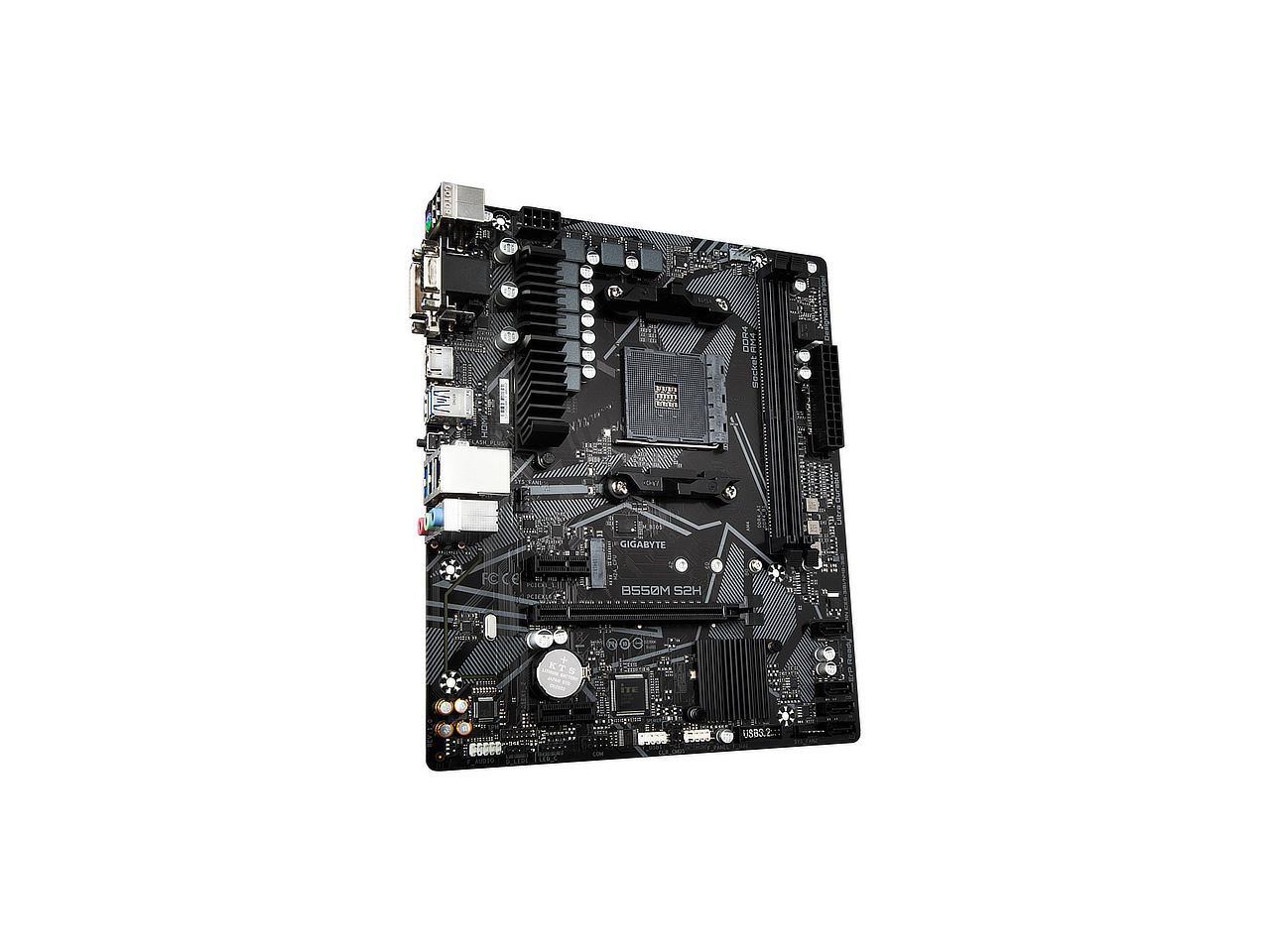

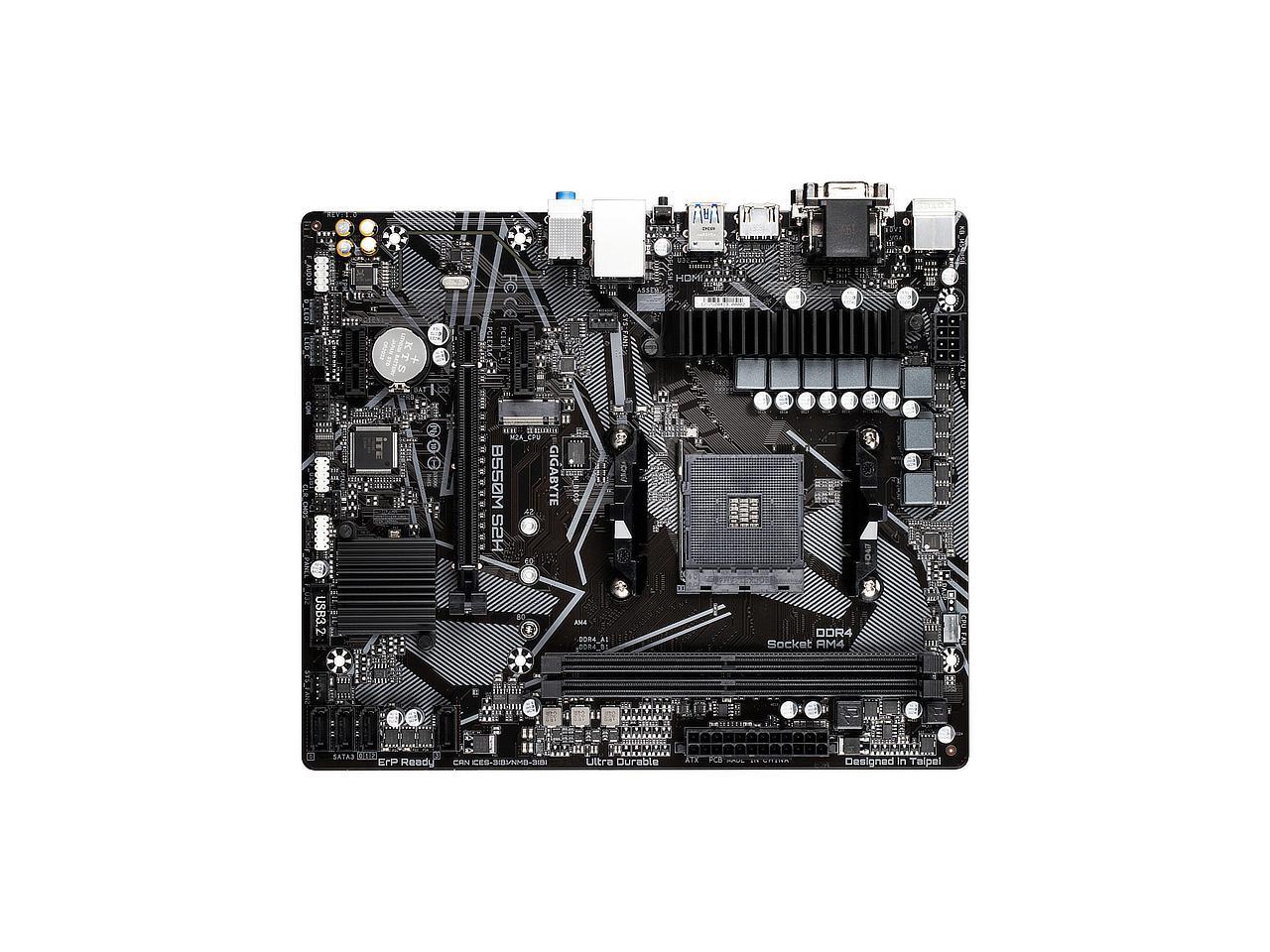

GIGABYTE B550M S2H AM4 AMD B550 SATA 6Gb/s Micro ATX AMD Motherboard

Be the first to review this product...
See more "gigabyte am4"
In stock.
Ships from Australia.
Most customers receive within 3-6 days.
  • AMD B550
  • Supports AMD Ryzen 5000 Series / 3rd Gen / 3rd Gen with Radeon Grapphics Processor
  • AMD Ryzen 5000 series processors:
  • Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133
  • AMD Ryzen 3rd Gen / 3rd Gen with Radeon Graphics Processors:
  • Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133
+
+
Specs
Reviews

Learn more about the GIGABYTE B550M S2H

Model
Brand GIGABYTE
Model B550M S2H
Supported CPU
CPU Socket Type AM4
CPU Type Supports AMD Ryzen 5000 Series / 3rd Gen / 3rd Gen with Radeon Grapphics Processor
Chipsets
Chipset AMD B550
Memory
Number of Memory Slots 2x288pin (DDR4)
Memory Standard AMD Ryzen 5000 series processors:
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133

AMD Ryzen 3rd Gen / 3rd Gen with Radeon Graphics Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133
Maximum Memory Supported 64GB
Channel Supported Dual Channel
ECC Supported Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory Feature Support for Extreme Memory Profile (XMP) memory modules
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express x16 slot, integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
PCI Express x1 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
SATA RAID 0/1/10
Onboard Audio
Audio Chipset Realtek ALC887
Audio Channels 7.1 Channels
Onboard LAN
Max LAN Speed 1Gbps
Rear Panel Ports

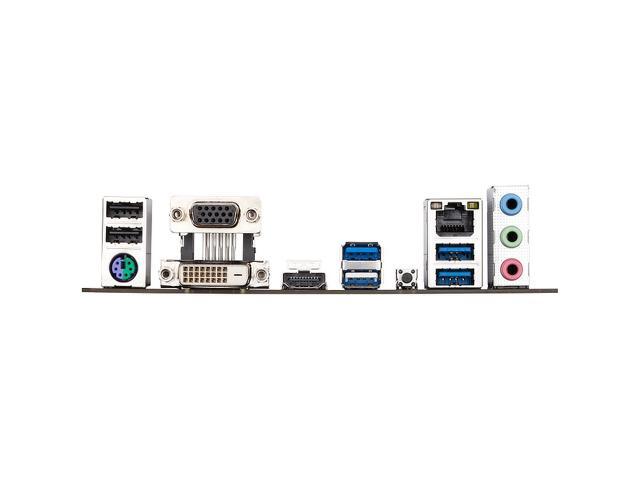

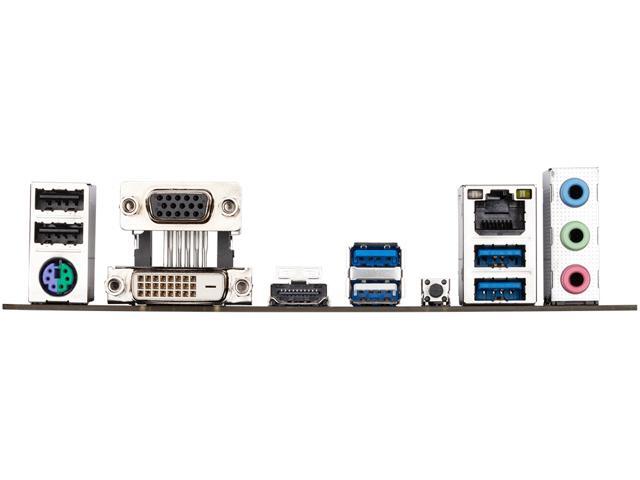

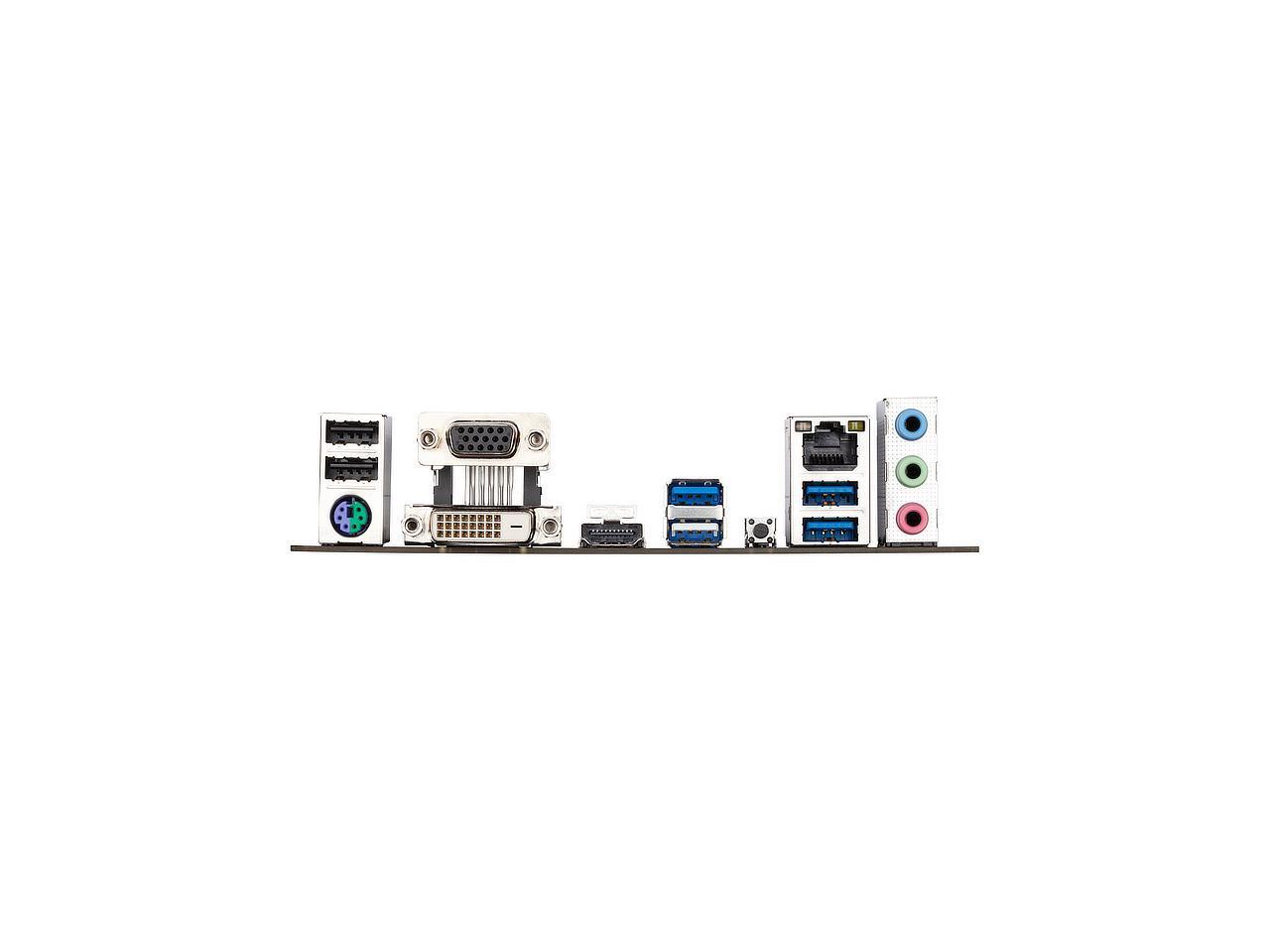

Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x CPU fan header
2 x System fan headers
1 x Addressable LED strip header
1 x RGB LED strip header
1 x Front panel header
1 x Front panel audio header
1 x Speaker header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Serial port header
1 x Chassis intrusion header
1 x Clear CMOS jumper
Physical Spec
Form Factor Micro ATX
Power Pin 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
Features
Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Additional Information
Date First Available May 29, 2022
