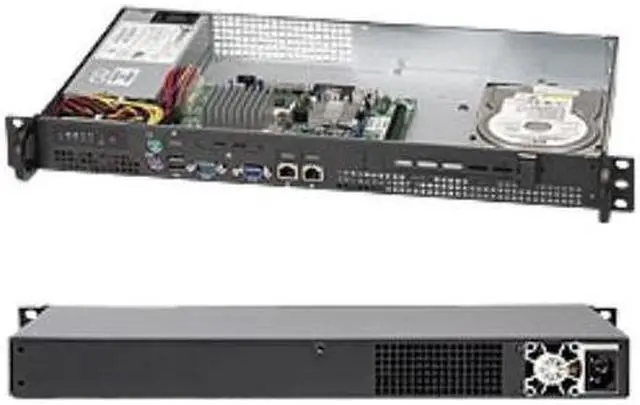

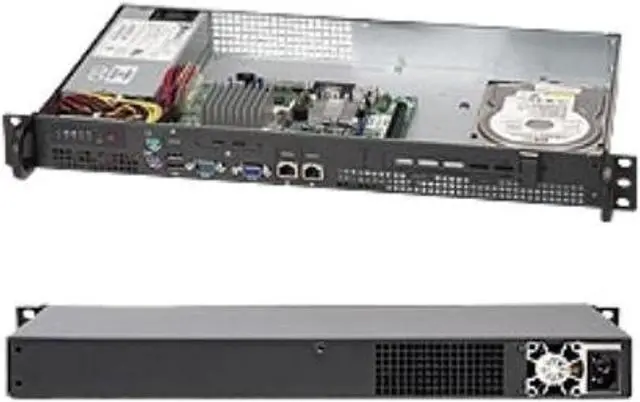

Supermicro Superchassis 503l-200b Rackmount Enclosure - Rack-mountable - Black - 1u - 1 X Bay - 1 X 200 W - Micro Atx Motherboard Supported (106286)

1. Mini 1U Chassis optimized for Intel® Atom™ Platform


2. 200W Low Noise Power Supply


3. Front I/O Ports


4. 1x 3.5" Internal Drive Bay


5. OR 2x 2.5" Internal Drive Bay (opt. )


6. OR 1x Full-height, Half-length PCI (opt. )


7. OR 1x 2.5" Internal Drive & 1x FH, HL PCI


8. Power Switch, Reset Button & 5 LED Indicators
Form Factor:
9.8" -Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6"
Processor Support:
Single Processor Support: Intel Atom series processor, Celeron 400 series up to 35W
Dimensions:
Height
1.7" (43mm)
Width
17.2" (437mm)
Depth
9.8" (249mm)
Packaging
25.8" (W) x 6.1" (H) x 18.3" (L)
Gross Weight
10 lbs ( 4.5 kg)
Available Colors
Black
Expansion Slots:
1x full-height half-length PCI expansion slot (Optional) Riser Card Required
Drive Bays:
Internal Bay:
1x 3.5" Internal Drive Bay (Standard)
OR 2x 2.5" Internal Drive (Optional)
OR 1x 2.5" (Optional)
SAS or enterprise SATA HDD only recommended
Front Panel:
Buttons:
Power On/Off button
System Reset button
LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
I/O Ports:
Standard System I/O
(Mouse, Keyboard, 2x USB Video, COM, LPT, LAN) Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage:
100 - 240V, 50-60Hz, 3- 1.5 Amp Max
+5V:
16.0 Amp
+5V standby:
2.0 Amp
+12V:
15.0 Amp
-12V:
0.8 Amp
+ 3.3V:
17.0 Amp Regulatory (Power Supply)
Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
CCC Certification
EN 60950/IEC 60950-Compliant
Europe/CE Mark
Germany - TUV Certified
Warranty Information:
1 Year

Package Contents:

• Super
  Chassis 503L-200B Rackmount Enclosure
• 1 x US Power Cord 18AWG 6ft, PBF
• 1 x 77.5 cm, 16-pin to 16-pin Front Cable
• 1 x Front Panel Control Board
