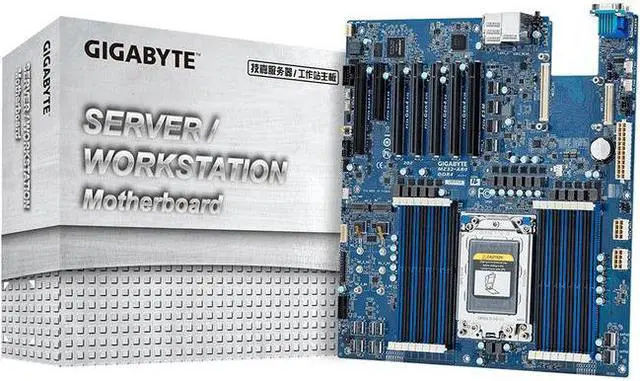

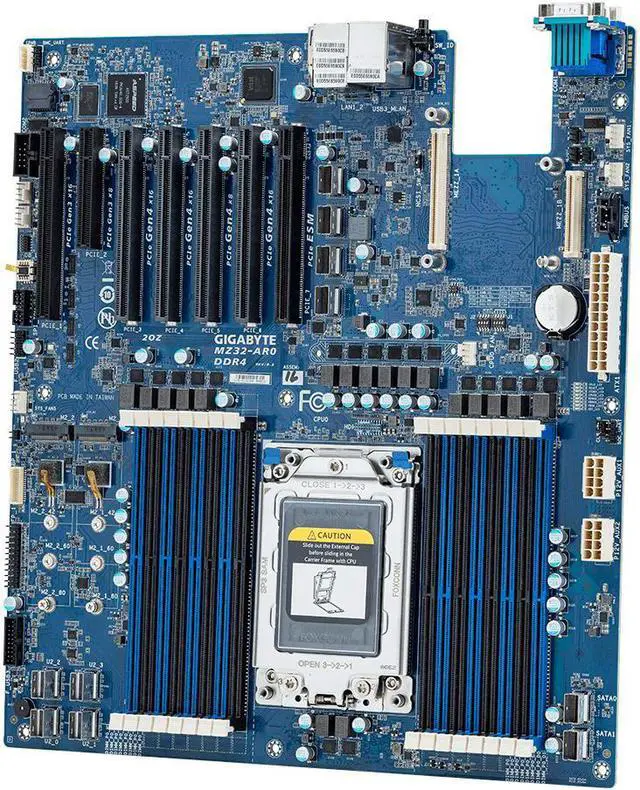

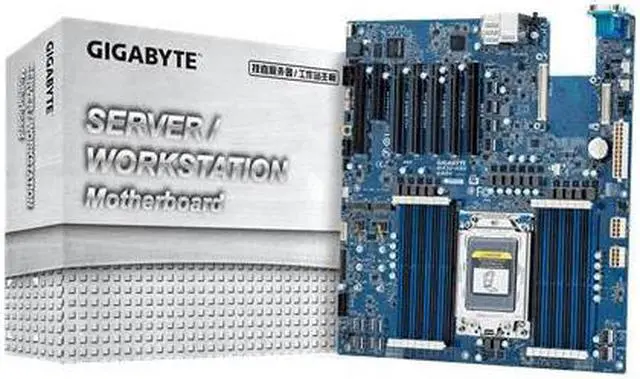

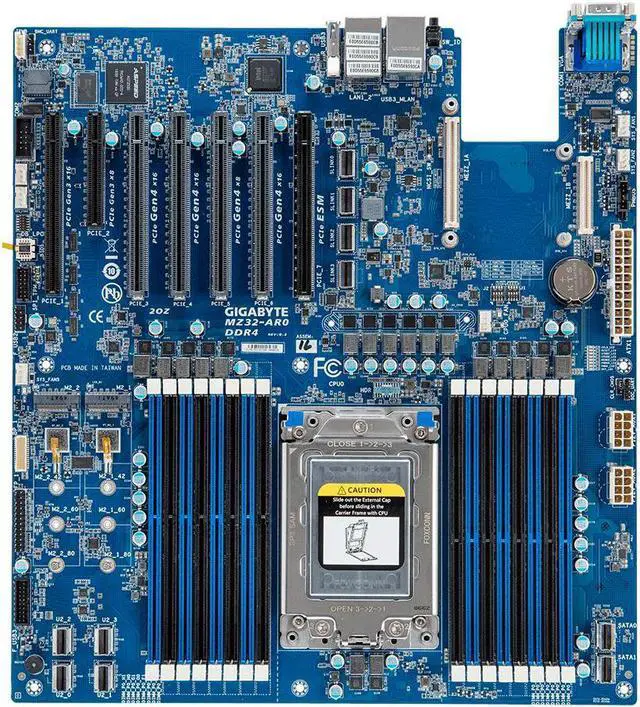

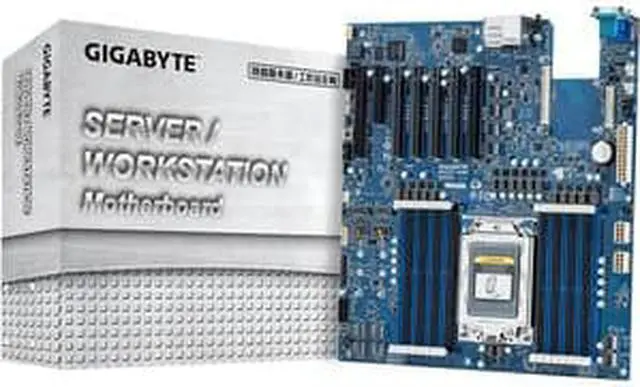

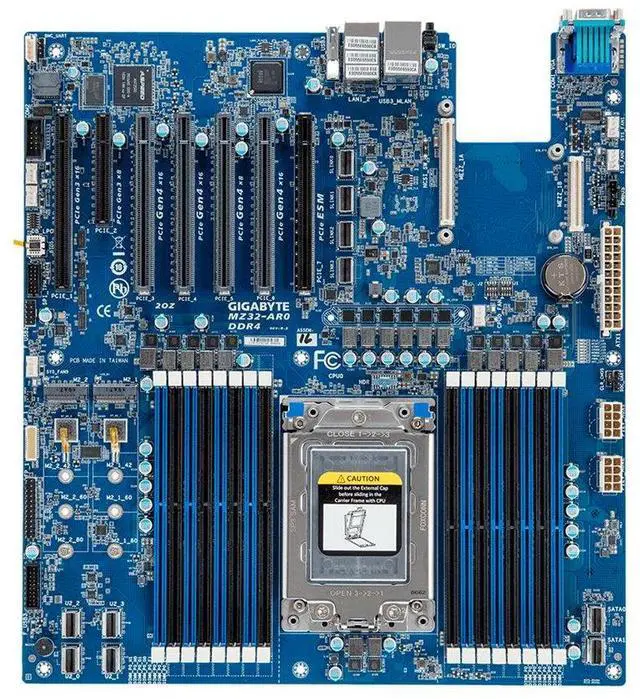

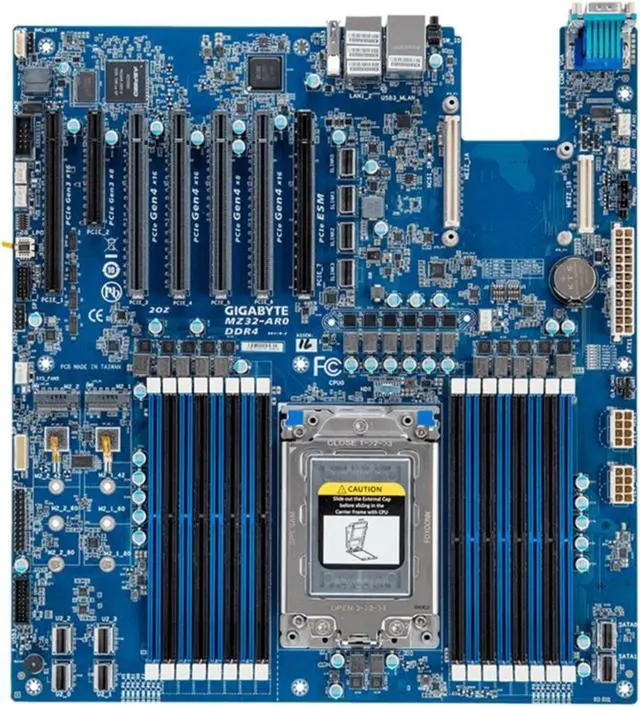

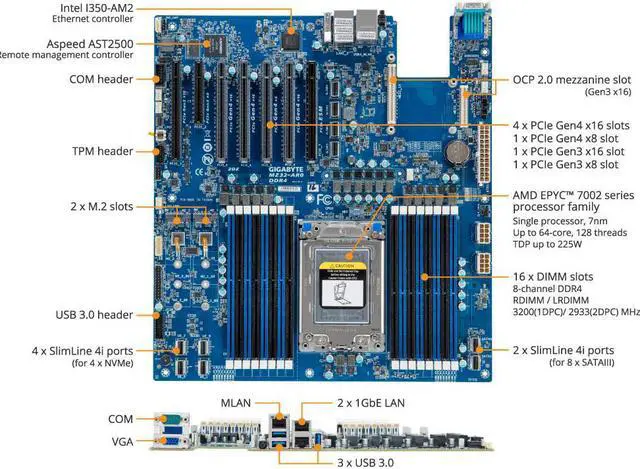

Gigabyte MZ32-AR0 Server Motherboard AMD Chipset Socket SP3 MZ32AR0

• Single AMD EPYC™ 7002 series processor family
• 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
• 2 x 1Gb/s LAN ports (Intel® I350-AM2)
• 1 x Dedicated management port
• 2 x SlimSAS (with 8 x SATA 6Gb/s) ports
• 4 x SlimSAS (with 4 x NVMe) ports
• Ultra-Fast M.2 with PCIe Gen3 x4 interface
• Up to 5 x PCIe Gen4 x16 slots and 2 x PCIe Gen3 slots
• 1 x OCP 2.0 Gen3 x16 mezzanine slot
• Aspeed® AST2500 remote management controller

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on 7nm advanced process technology - the best the industry has to offer, allowing for denser compute capabilities with lower power consumption
• The world's first 64 core data center CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
• The world's first mainstream PCIe Gen 4.0 data center CPU with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
• Embedded security protection to help defend your CPU, applications, and data

PCIe Gen 4.0 Ready

AMD EPYC Rome is the world's first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE's AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD's Radeon MI50 GPGPU.

Higher Memory Speed

AMD EPYC's Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

More M.2 Storage

GIGABYTE's AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage - both onboard M.2 slots and extra capacity via optional riser cards.

Max TDP Support

GIGABYTE's AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (cTDP)

Data Security

TPM 2.0 Module

GIGABYTE's AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors).

GIGABYTE BMC Interface

Easy BIOS Upgrade

GIGABYTE has developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:

• No need to install core components such as CPUs, memory, drives and OS
• No need to power on the system (NB. PSU must be connected)
• Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line)

GIGABYTE Server Management (GSM)

GIGABYTE Server Management (GSM) is GIGABYTE's proprietary multiple server remote management software platform, available as a free download from each GIGABYTE server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

• GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple GIGABYTE servers via each server node's BMC.
