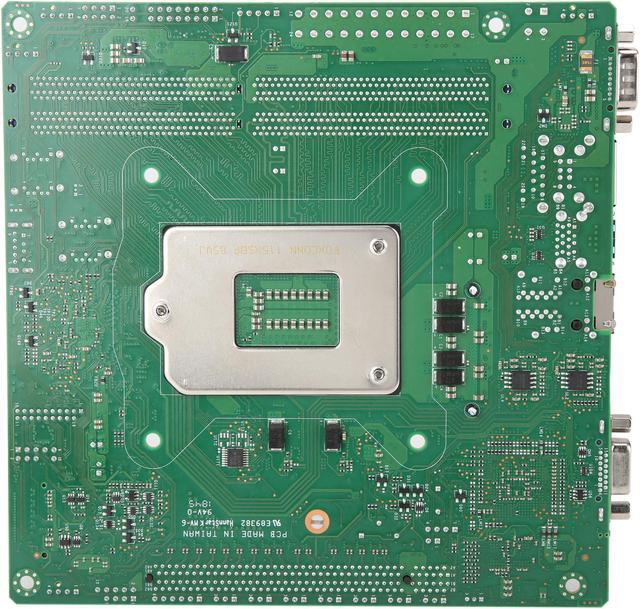

SUPERMICRO MBD-X11SCL-IF-O Mini ITX Server Motherboard LGA 1151 Intel C242

(2) Write a Review
  • LGA 1151
  • Intel C242
Specs
Reviews (2)

Learn more about the Supermicro MBD-X11SCL-IF-O

Model
Brand SUPERMICRO
Model MBD-X11SCL-IF-O
Supported CPU
CPU Socket Type LGA 1151
CPU Type Supports:
Intel Xeon E-2100 Processor
Intel Xeon E-2200 Processor
8th/9th Generation Intel Core i3 / Pentium / Celeron Processor
Chipsets
North Bridge Intel C242
Memory
DDR4 Standard DDR4 2667 / 2400 / 2133 MHz ECC SDRAM 72-bit
Maximum Memory Supported Up to 64GB Unbuffered ECC UDIMM, DDR4-2666 MHz, in 2 DIMM slots
Expansion Slots
PCI Express 3.0 x16 1 x PCI-E 3.0 x16 (in x16 slot)
Storage Devices
SATA 4 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset Aspeed AST2500 BMC
Onboard LAN
LAN Chipset Intel I210
LAN Speed 10/100/1000Mbps
Second LAN Chipset Intel I210
Second LAN Speed 10/100/1000Mbps
Max LAN Speed 2 x 1Gbps

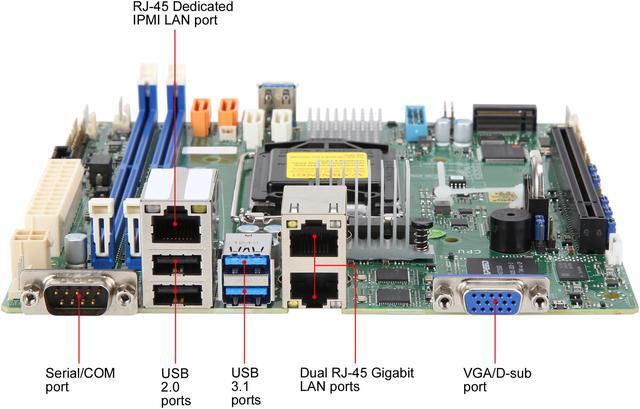

Rear Panel Ports
COM 1
RJ45 2 x RJ45
1 x IPMI
USB 1.1/2.0 2 x USB 2.0
USB 3.1 2 x USB 3.1
Features
Features Single socket H4 (LGA 1151) supports Intel Xeon processor E-2100, Intel 8th Gen. Core i3 series, Intel Celeron and Intel Pentium

Intel C242 chipset

Up to 64GB DDR4 2666 MHz ECC UDIMM; 2 x DIMM slots

Dual GbE LAN with Intel i210-AT

4 x SATA3 (6 Gbps); RAID 0, 1, 5, 10

M.2 NGFF connector

M.2 Interface: 1 x PCI-E 3.0 x4
Form Factor: 2280
Key: M-Key
Double Height Connector
Dimensions
Form Factor Mini ITX

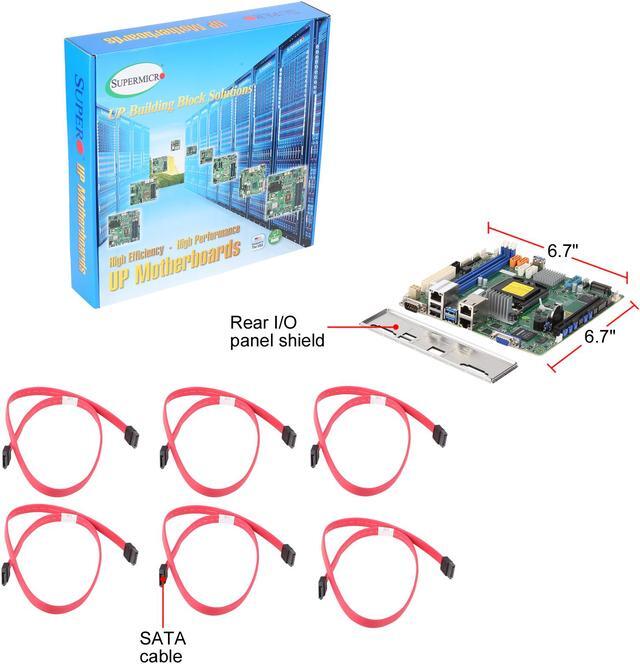

Dimensions (W x L) 6.7" x 6.7"
Additional Information
Date First Available February 19, 2019
