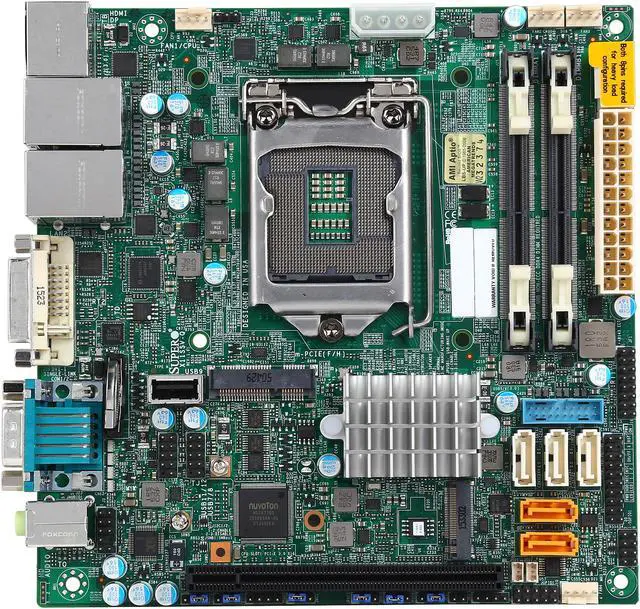

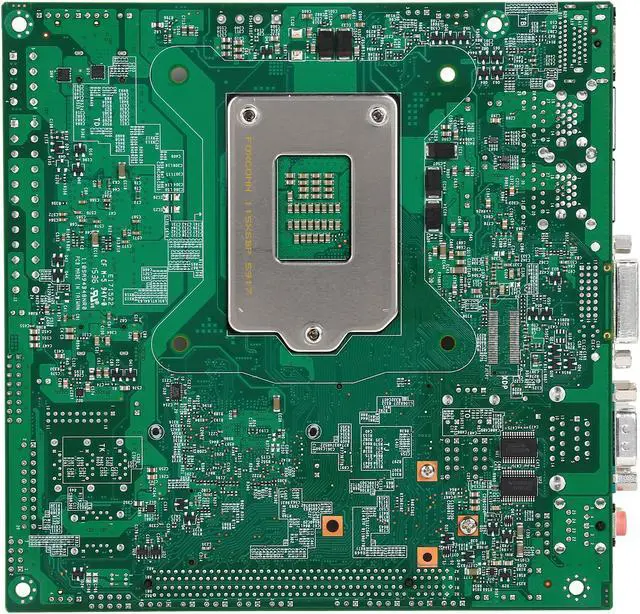

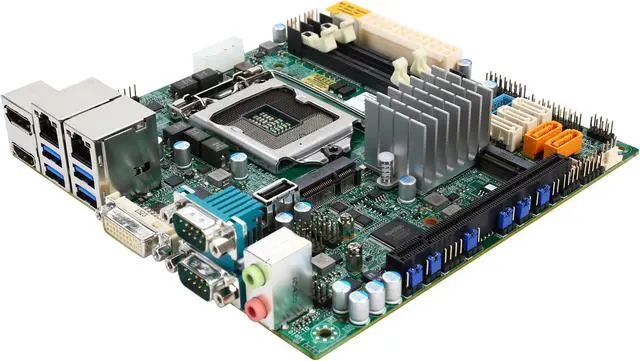

SUPERMICRO MBD-X11SSV-Q-O Mini ITX Server Motherboard LGA 1151 Intel Q170
- Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
- Intel Q170 Express chipset
- Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2400 MHz; 2 x DIMM slots
- Dual GbE LAN w/ Intel i219LM + i210AT
- Supports 12V DC power input
+
+
Overview
Specs
Reviews (3)
Q170 chipset / Socket H4 BoardsSupermicro's single processor Socket H4 designs feature the Intel Q170 embedded chipset which support the Intel 6th Gen Core i3/i5/i7 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0, PCI-E 3.0 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, VGA and DVI ports. Designed with performance, reliability, manageability and long life in mind Supermicro's single processor motherboards are the perfect solution for ATM, Kiosk, NVR/DVR Surveillance, Medical, Storage or Server appliance and many other embedded applications.Chipset Manufacturer: IntelChipset Model: Q170Total Processor Supported: 1Processor Socket: Socket H4 LGA-1151Processor Supported: Core i7Processor Supported: Core i5Processor Supported: Core i3Processor Supported: PentiumProcessor Supported: CeleronNumber of Memory Slots: 2Memory Form Factor: DIMMMemory Form Factor: UDIMMMaximum Memory: 32 GBMemory Speed Supported: 2.13 GHzMemory Speed Supported: 1.87 GHzMemory Speed Supported: 1.60 GHzMemory Technology: DDR4 SDRAMController Type: Serial ATA/600RAID Supported: YesRAID Levels: 0RAID Levels: 1RAID Levels: 5RAID Levels: 10Onboard Video: CPU Dependent VideoGraphics Controller Manufacturer: IntelGigabit Ethernet: YesNumber of Total Expansion Slots: 1Total Number of PCI Express Slots: 1Number of PCI Express x16 Slots: 1Total Number of USB Ports: 4Number of USB 3.0 Ports: 4HDMI: YesDisplayPort: YesDVI: YesNumber of SATA Interfaces: 5Number of mSATA Interfaces: 1Number of M.2 Interfaces: 1Total Number of Onboard USB Ports: 7Number of Onboard USB 3.0 Ports: 2Form Factor: Mini ITXWidth: 6.7Depth: 6.7"Compatibility: Supermicro ChassisMid/Mini Tower Chassis: SC731i-300B Mini-ITX Chassis: SC101i SuperServer Model: SYS-5029S-TN2 "
SUPERMICRO MBD-X11SSV-Q-O Mini ITX Server Motherboard
Key Features
- 1. Single socket H4 (LGA 1151) supports Intel® 6th Gen. Core i7/i5/i3 series, Intel® Celeron® and Intel® Pentium® processors
- 2. Intel® Q170 Express chipset
- 3. Up to 32GB Unbuffered Non-ECC UDIMM DDR4 2133MHz; 2 DIMM slots
- 4. 1x PCI-E 3.0 x16, Mini-PCIe with mSATA support, M.2 PCIe 3.0 x4 with SATA support, 2242/2280
- 5. 1x GbE LAN w/ Intel® i210-AT, 1x GbE LAN w/ Intel® PHY i219LM
- 6. 5x SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
- 7. HDMI, DP, DVI-I, Intel HD Graphics, 3x independent displays
- 8. 2x SATA DOM, 2x COM ports, TPM header, ALC 888S HD Audio
- 9. 6x USB 3.0 (4 rear + 2 via header) 5x USB 2.0 (4 via headers + 1 Type A)
Specifications
| Product SKUs | |
| MBD-X11SSV-Q -B |
|
|---|---|
| Physical Stats | |
| Form Factor |
|
| Dimensions |
|
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| DIMM Sizes |
|
| Memory Voltage |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| Audio |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Audio |
|
| Video/Display |
|
| Serial Port / Header |
|
| SuperDOM |
|
| TPM |
|
| Others |
|
Gallery

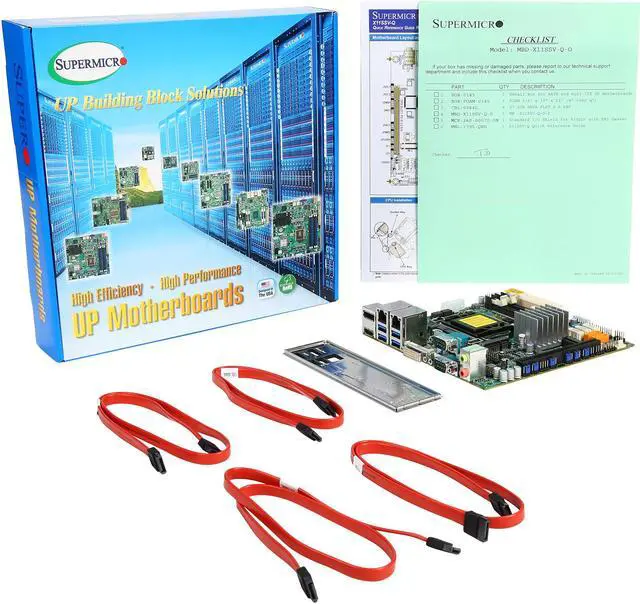

What's in the Box
