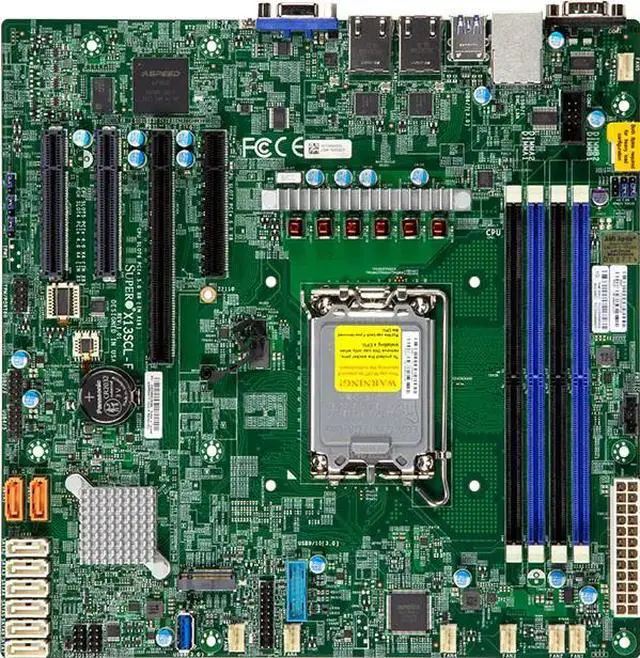

Supermicro MBD-X13SCL-F-O, Intel LGA 1700 Single Socket mATX Server Motherboard

Intel Xeon 6300-series/E-2400 Series Processor, Pentium Processor, Single Socket LGA-1700 (Socket V0) supported, CPU TDP supports Up to 95W TDP
Intel C262 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Up to 128GB ECC Unbuffered DIMM, DDR5-4400MHz, in 4 DIMM slots
1 PCIe 5.0 x8
1 PCIe 5.0 x8 (in x16)
2 PCIe 4.0 x4 (in x8)
Dual LAN with Intel® i210 Gigabit Ethernet Controller
M.2 Interface: 1 PCIe 4.0 x4
M.2 Form Factor: 2280/22110
M.2 Key: M-Key
4 USB 3.2 Gen1 ports (2 rear + 2 via header)
6 USB 2.0 ports (2 rear+ 4 via header)
1 USB 3.2 Gen1 Type-A header

Specs

Reviews

Learn more about the Supermicro MBD-X13SCL-F-O

Model
Brand	SUPERMICRO
Model	MBD-X13SCL-F-O

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel Xeon 6300-series/ E-2400/Pretium Processor
Number of Processor Support	1
CPU Features	Up to 95W TDP

Chipsets
North Bridge	Intel C262

Expansion Slots
PCI Express x8	1 x PCIe 5.0 x8 1 x PCIe 5.0 x8 (in x16 slot)
PCI Express x4	2 x PCIe 4.0 x4 (in x8 slot)

Storage Devices
SATA	8 x SATA 6.0Gb/s
SATA RAID	0/1/5/10
M.2	M.2 Interface: 1 PCIe 4.0 x4 Form Factor: 2280/22110 Key: M-Key

Onboard Video
Onboard Video Chipset	Aspeed AST2600

Rear Panel Ports
Back I/O Ports	1 x COM (Serial Port) / 1 x D-Sub / 2 x LAN (RJ45) / 2 x USB 2.0/1.1 / 3 x USB 3.2 Gen 1

Features
BIOS Feature	AMI 32MB AMI UEFI ACPI 6.4 SMBIOS 3.5 UEFI 2.8 Plug and Play (PnP) PCI FW 3.3

Dimensions
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"

Additional Information
First Listed on Newegg	March 26, 2025
