airMAX® BaseStation

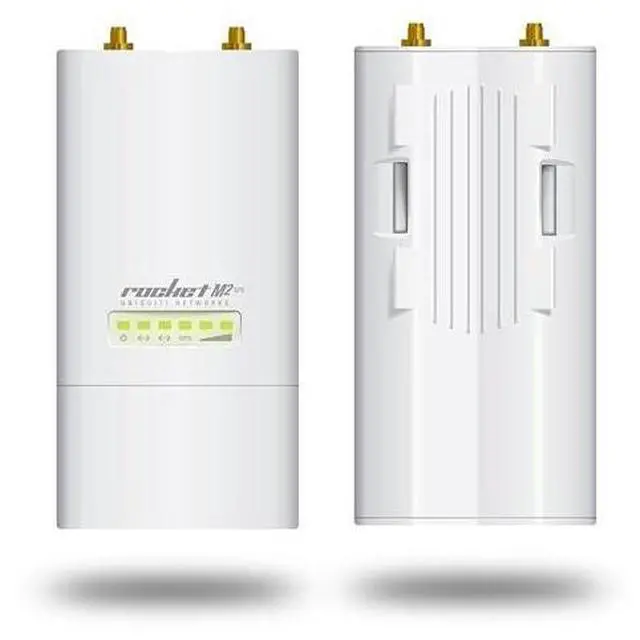

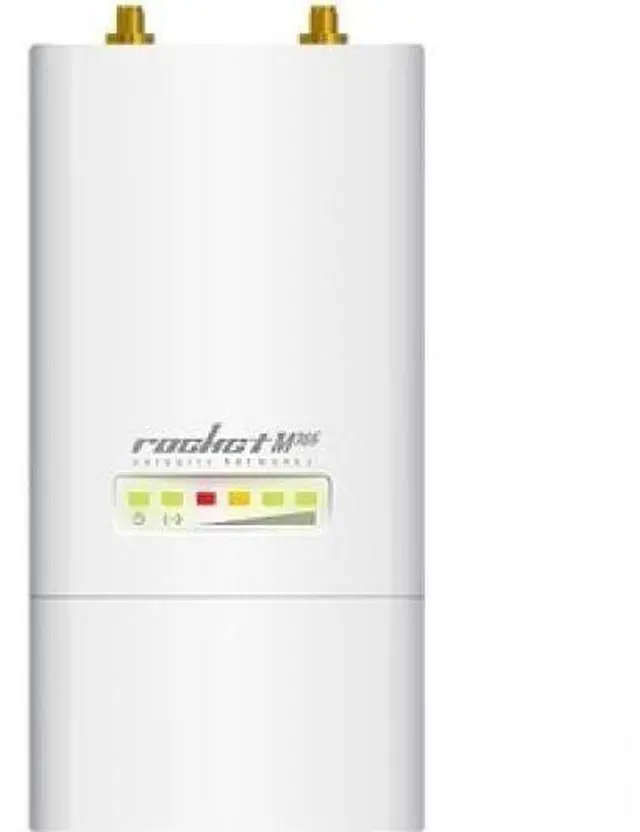

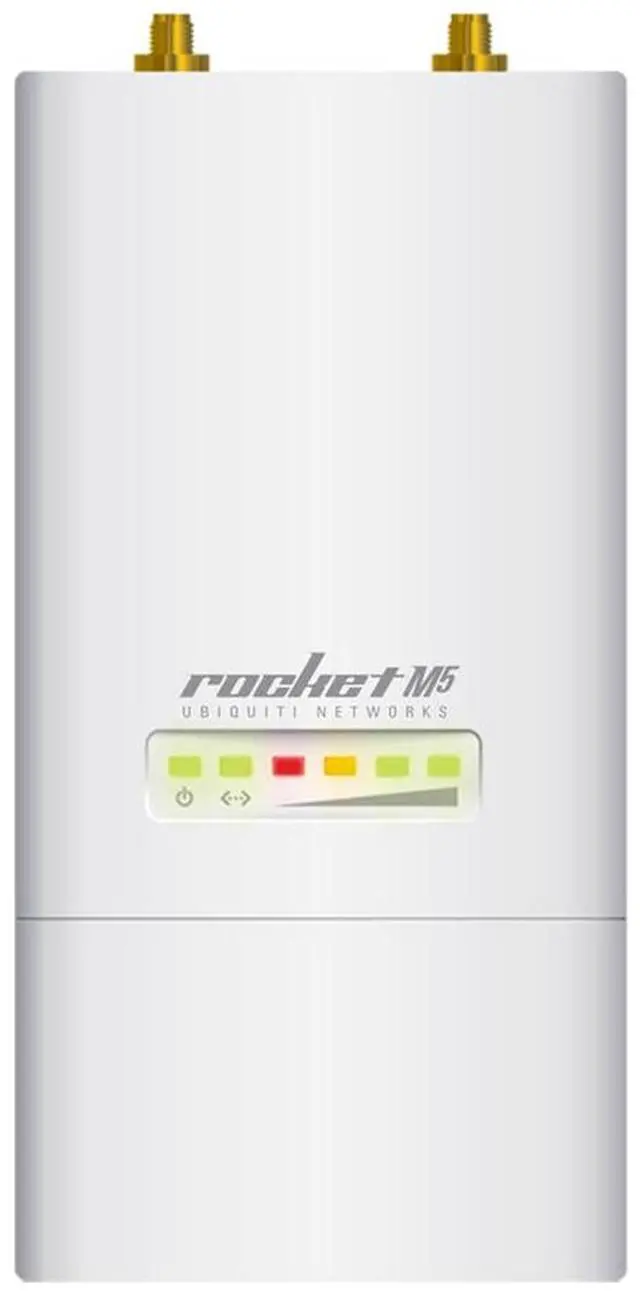

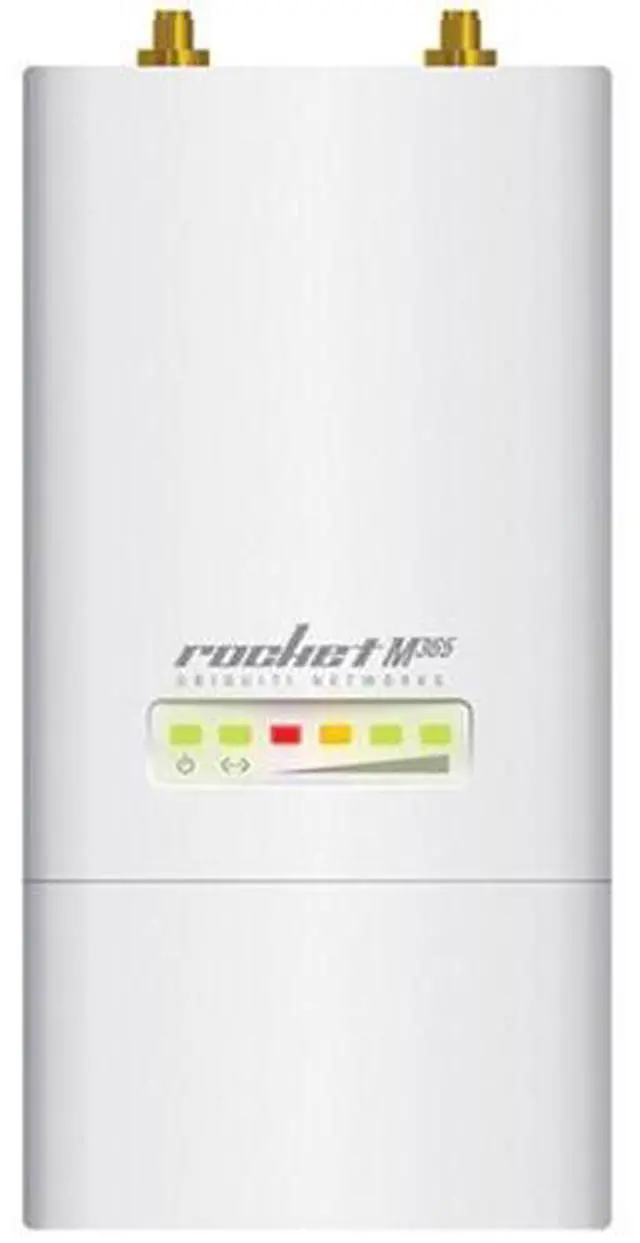

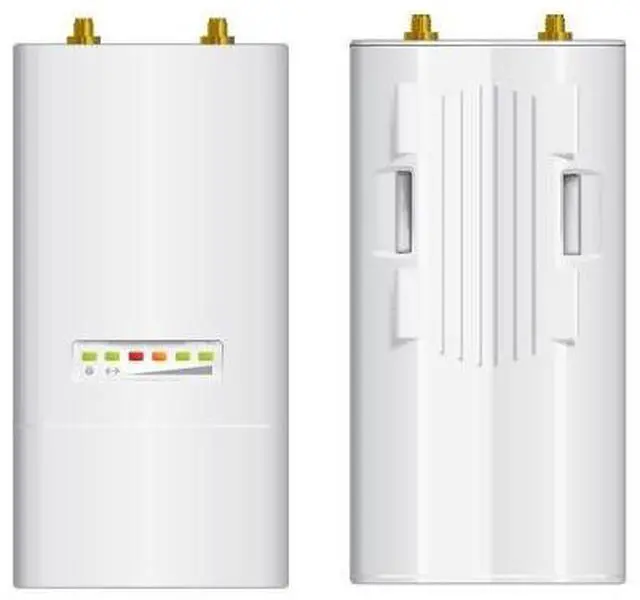

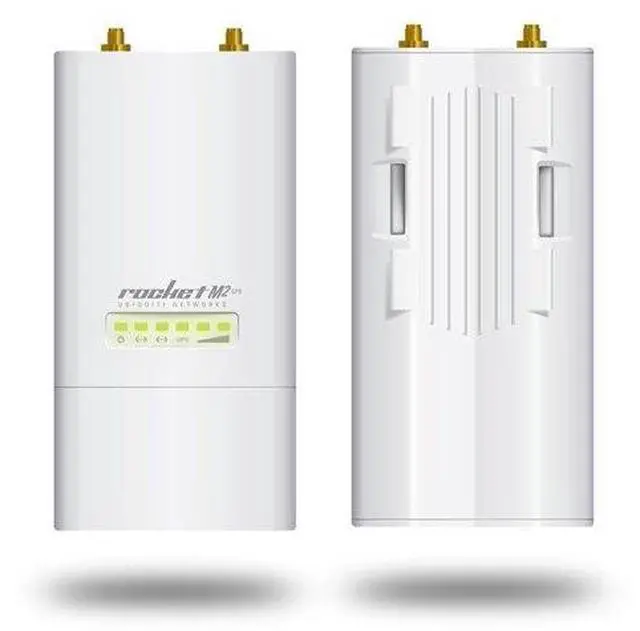

Featuring enhanced radio performance and mix-and-match industrial design, the Rocket™M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.
Featuring enhanced radio performance and mix-and-match industrial design, the Rocket™M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.
Rocket™ radios seamlessly work together with airMAX® Sector, RocketDish™, Omni and Yagi antennas for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Built to survive harsh environments, the Rocket™M is available in several frequency models and supports multiple channel bandwidths, depending on the specific model and local country regulations.
The airView® Spectrum Analyzer allows operators to identify noise signatures and analyze frequency usage and activity levels onsite, so new access points can be set up on the least-used channels to optimize wireless performance.
![]() |
![]() |
![]() |
![]() |
|
M900 | M2 | RM2-Ti | M3 | |
Frequency | 900 MHz | 2.4 GHz | 2.4 GHz | 3 GHz |
Throughput | 150+ Mbps | 150+ Mbps | 150+ Mbps | 150+ Mbps |
Ports | (1) 10/100 Ethernet | (1) 10/100 Ethernet | (1) 10/100/1000 Ethernet (1) 10/100 Ethernet |
(1) 10/100 Ethernet |
![]() |
![]() |
![]() |
![]() |
|
M365 | M5 | R5AC-Lite | R5AC-PTP | |
Frequency | 3.65 GHz | 5 GHz | Full-Band 5 GHz | Mid-Band 5 GHz |
Throughput | 150+ Mbps | 150+ Mbps | 500+ Mbps (Max. 80 MHz) | 500+ Mbps (Max. 80 MHz) |
Ports | (1) 10/100 Ethernet | (1) 10/100 Ethernet | (1) 10/100/1000 Ethernet | (1) 10/100/1000 Ethernet |
![]() |
|
RM5-Ti | |
Frequency | 5 GHz |
Throughput | 150+ Mbps |
Ports | (1) 10/100/1000 Ethernet (1) 10/100 Ethernet |
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
