Its unique design, array of drop extensions, and cable management allow the mount to adapt to almost any installation.
Small projectors - use 3 arms instead of 4 provided If mounting points are smaller than universal spider, simply rotate the arm(s) under the universal spider plate.
Large projectors - use 4 arms provided Simply rotate the arms to suit.
Very Large projectors (with mounting points over 12 inches apart) - use the optional extension arms (AMRP10057) to extend the arms from 12 inches up to 15.7 inch reach.

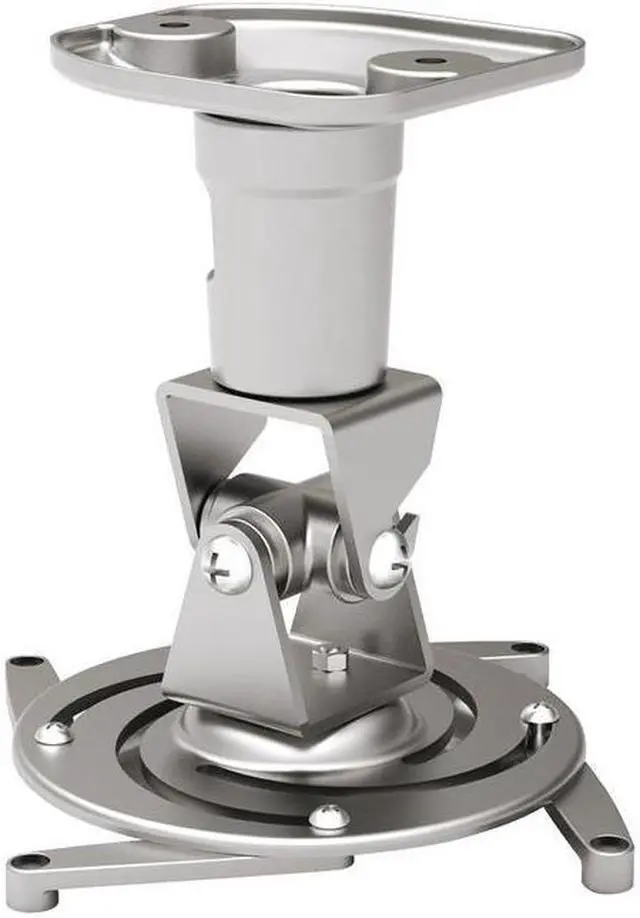

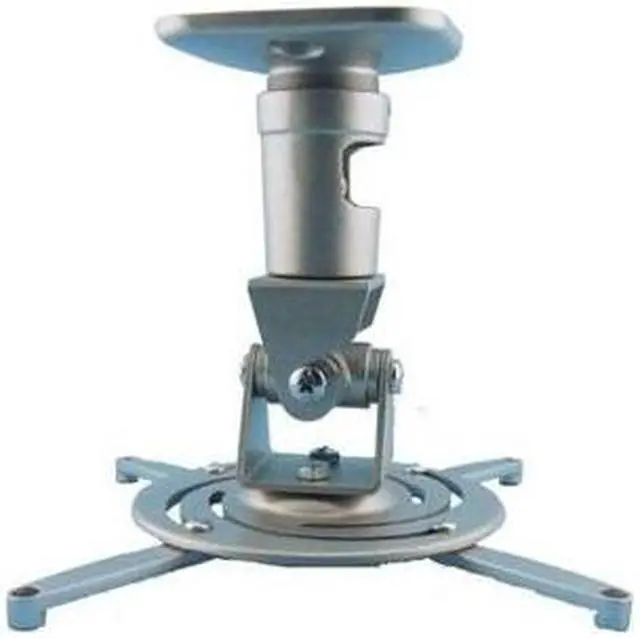

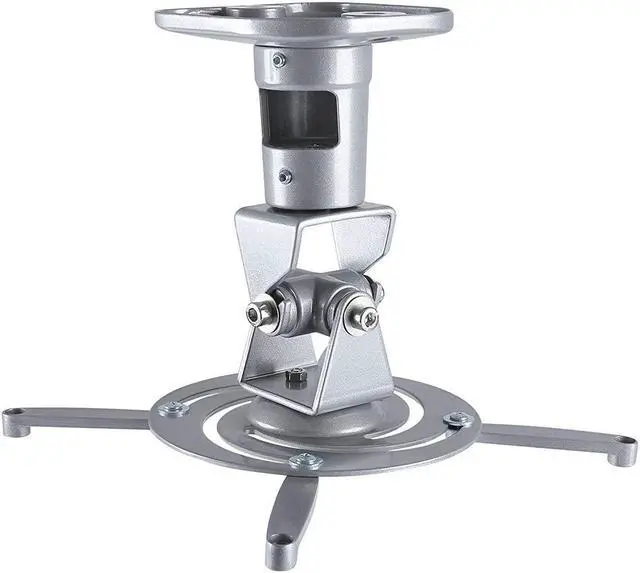

Featuring a reinforced steel plate and cast aluminum mounting head, this lightweight mount can support projectors up to 30 lbs. Its cast aluminum construction provides a strong, lightweight, heat-dissipating platform that is perfectly suited for mounting any A-V projector in a suspended ceiling.
180? pitch & yaw, 360? rotation with lock-down for perfect A-V projector alignment.
Choose from any extension tube or combination that's right for you. Available in white, silver, and black color variations:
AMRE5003(B) 3" extension
AMRE5006(B) 6" extension
AMRE5012(B) 12" extension
AMRE5024(B) 24" extension
AMRE5048(B) 48" extension
AMREADJ1626(S)(B) 16-26" adjustable extension pole
Tubes allow internal cable management and can be combined to form lengths. eg. 6 inch +12 inch = 18 inch tube.
| Dimensions | 6.7" x 8.6" x 6.7" (170 x 218 x 170mm) |
|---|---|
| Material | Cast Aluminum |
| Weight | 2.65lbs (1.2kg) |
| Support Weight | 30lbs (13.61kg) |
| Tilt | 180 Degree |
| Swivel | 180 Degree |
| Rotate | 360 Degree |
