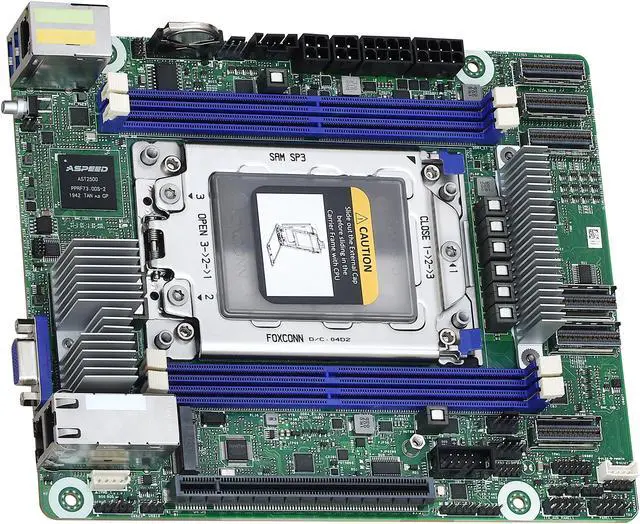

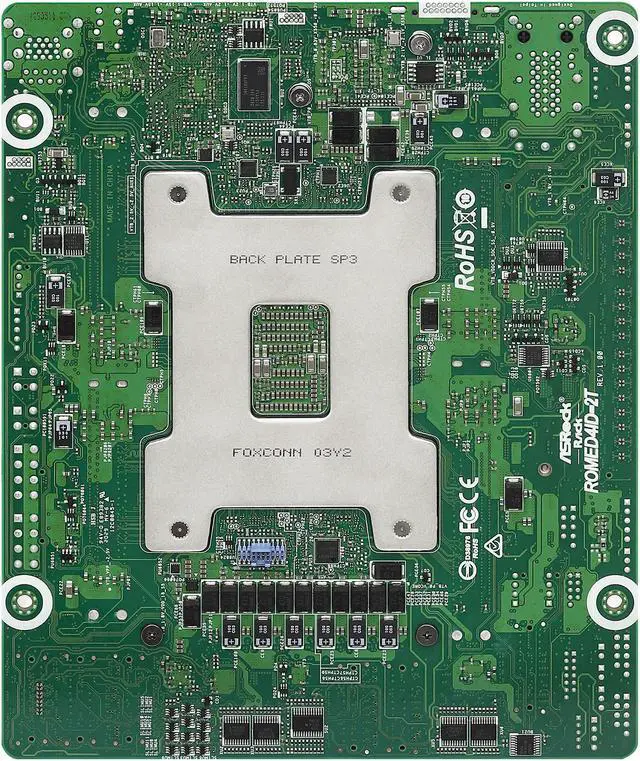

AsRock Rack ROMED4ID-2T Proprietary (Deep mini-ITX) Server Motherboard Socket SP3

(5)(4) Write a Review
  • Deep mini-ITX (6.7" x 8.2")
  • Single Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
  • 4 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
  • 1 PCIe4.0 x 16
  • 2 low-profile Slimline (PCIe 4.0 x8 or 8 SATA 6Gb/s), 4 Slimline (PCIe 4.0 x8)
  • Supports 1 M.2 (PCIe4.0 x4/SATA)
  • 17 SATA 6Gb/s
  • 2 RJ45 (10GbE) by Intel® X550-AT2
  • Remote Management (IPMI)
+
+
Specs
Reviews (5)

Learn more about the ASRock Rack ROMED4ID-2T

Model
Brand AsRock Rack
Model ROMED4ID-2T
Supported CPU
CPU Socket Type Socket SP3
CPU Type Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*) / 7002 Series Processors

*A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology
Memory
Number of DDR4 Slots 4 x 288-pin
DDR4 Standard DDR4 3200
Registered Yes
Expansion Slots
PCI Express 4.0 x16 SLOT 7: PCIe 4.0 x16
Storage Devices
M.2 1 x M-key (PCIe4.0 x4/SATA); Form factor: 2280
Onboard Video
Onboard Video Chipset Aspeed AST2500
Onboard LAN
LAN Chipset Intel X550-AT2
LAN Speed 10Gbps
Max LAN Speed 2 x 10Gbps

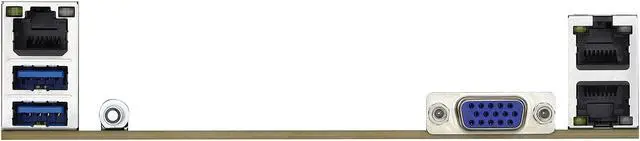

Rear Panel Ports
Video Ports D-Sub
RJ45 2 x RJ45 (10 GbE)
1 x RJ45 Dedicated IPMI LAN port
USB 3.2 2 x USB 3.2 Gen 1
Onboard Ports
Other Connectors COM Header: 1
Auxiliary Panel Header: 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED
TPM Header: 1 (13-pin, LPC)
Thermal Sensor Header: 1
IPMB Header: 1
PMBus CONN: 1
Fan Header: 3 (4-pin)
HDD PWR: 1 (4-pin, 12V and 5V) for using 12V DC-in PSU
USB 2.0 Header: 1 (support 2 USB2.0)
NMI Header: 1
System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
Speaker Header: 1
BMC_SMB Header: 1
Power Connector: 1 (4-pin, ATX PSU signal and 5Vsb), 2 (8-pin, ATX 12V) support 12V DC-in
Clear CMOS: 1 (contact pads)
Features
Features Proprietary, 6.7" x 8.2"
Single Socket SP3 AMD EPYC 7002 series Processors
4 DIMMs
1 PCIe4.0 x 16
2 Slimline (PCIe 4.0 x8 or 8 SATA 6Gb/s), 4 Slimline (PCIe 4.0 x8)
1 M-key (PCIe4.0 x4/SATA)
Dimensions
Form Factor Proprietary (Deep mini-ITX)

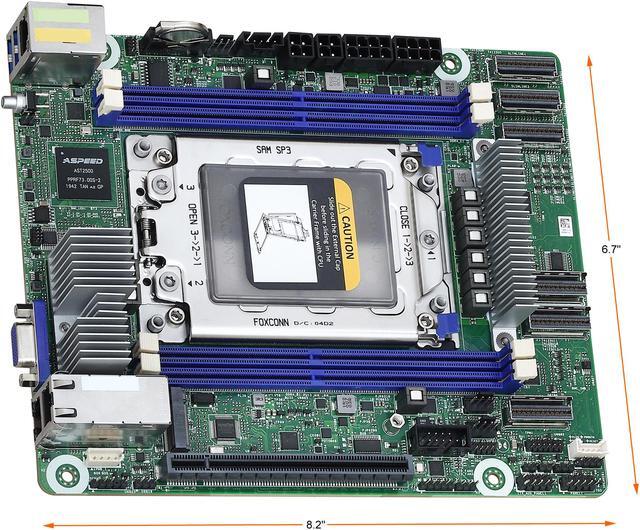

Dimensions (W x L) 6.7" x 8.2"
Additional Information
First Listed on Newegg February 16, 2021
