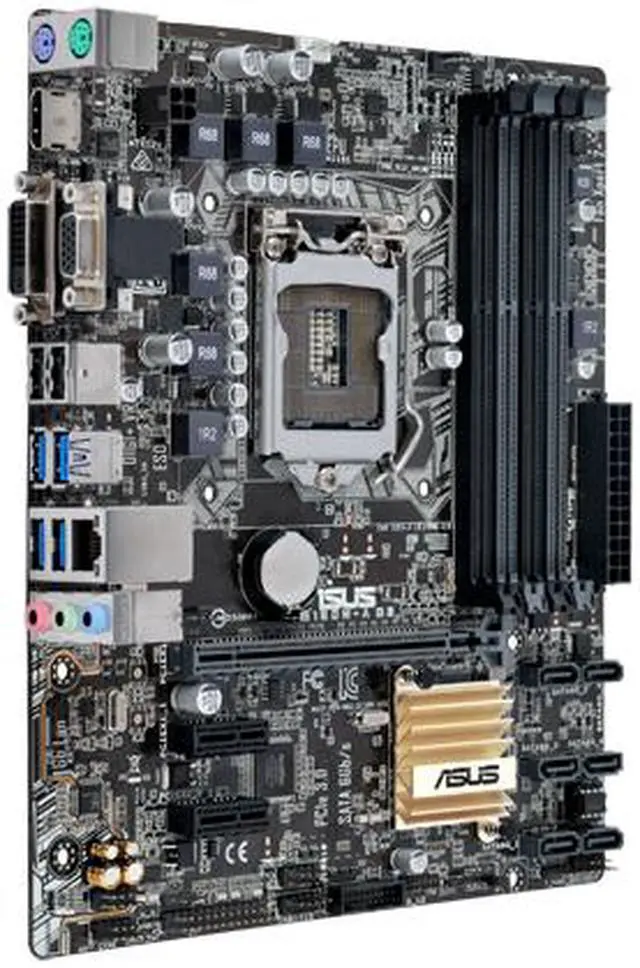

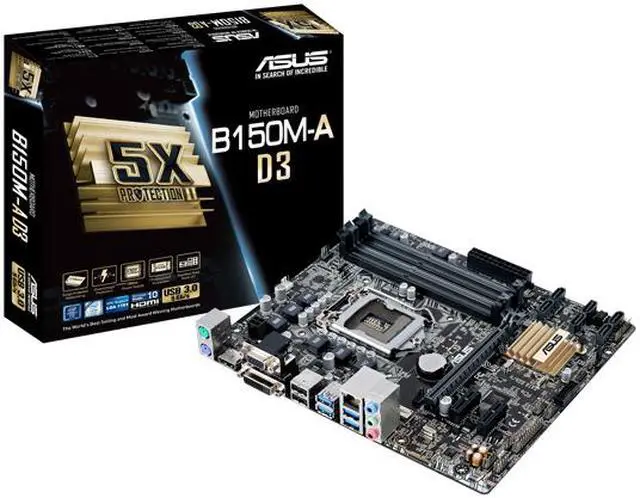

ASUS B150M-A D3 LGA 1151 Intel B150 HDMI USB 3.0 Micro ATX Intel Motherboard
- CSM Model
- 5X Protection II
- DDR3 memory support
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Easy PC DIY with safe motherboard-mounting design
- Fan Xpert 2+ advanced fan controls
Specs
Reviews (42)
Learn more about the ASUS B150M-A D3
| Brand | ASUS |
|---|---|
| Model | B150M-A D3 |
| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Chipset | Intel B150 |
|---|
| Number of Memory Slots | 4x240pin |
|---|---|
| Memory Standard | DDR3 1866(O.C.)/1600/1333 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCIe 3.0/2.0 x16 (x16 mode, gray) |
|---|---|
| Other Slots | 2 x PCIe 3.0/2.0 x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Realtek RTL8111H |
|---|---|
| Max LAN Speed | 1Gbps |

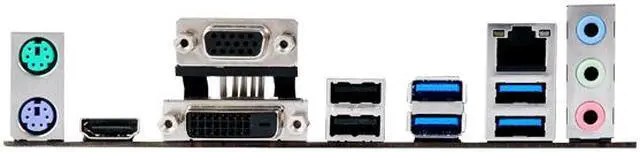

| Back I/O Ports | 1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.0 |
|---|---|
| PS/2 | 2 |
| Video Ports | 1 x VGA 1 x DVI-D |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| USB 3.0 | 4 x USB 3.0 |
| USB 1.1/2.0 | 2 x USB 2.0 |
| Audio Ports | 3 Ports |
| Other Connectors | 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) 2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 0 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.20" x 7.90" |
| Power Pin | 24 Pin |
| Features | ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DIGI+ VRM - 6 Phase digital power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability ASUS EPU : - EPU ASUS Exclusive Features : - AI Suite 3 - Ai Charger - Anti-Surge - ESD Guards - USB 3.0 Boost - Mobo Connect - PC Cleaner ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode - Push Notice ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM Media Streamer |
|---|

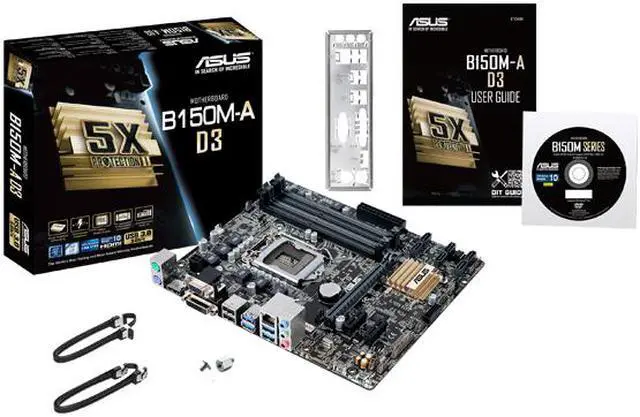

| Package Contents | User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD |
|---|
| First Listed on Newegg | December 09, 2015 |
|---|
