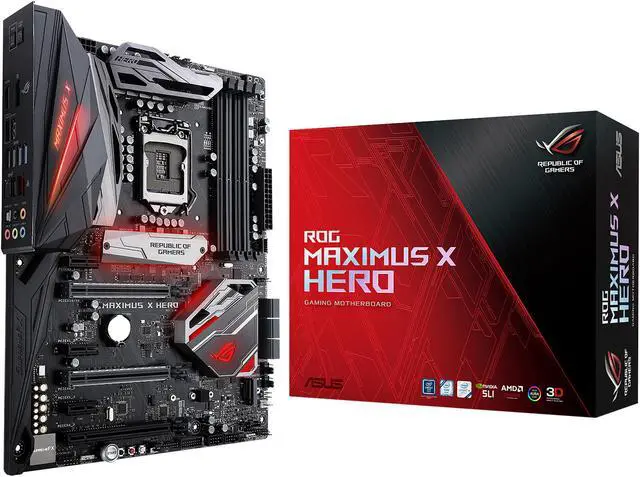

ASUS ROG Maximus X Hero LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

Name: ASUS ROG Maximus X Hero LGA 1151 (300 Series) ATX Intel Motherboard
Brand: ASUS
SKU: N82E16813119040
Rating: 4 (443 reviews)

Intel Z370
Intel LGA1151 socket only for 8th Gen Intel Core Processors
* Not backward compatible with older generation of LGA 1151 CPUs
* Refer to www.asus.com for CPU support list
DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Overview

Specs

Reviews (443)

Warranty & Returns

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel LGA1151 socket only for 8th Gen Intel Core Processors * Not backward compatible with older generation of LGA 1151 CPUs * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* *Intel Turbo Boost Technology 2.0 support depends on the CPU types

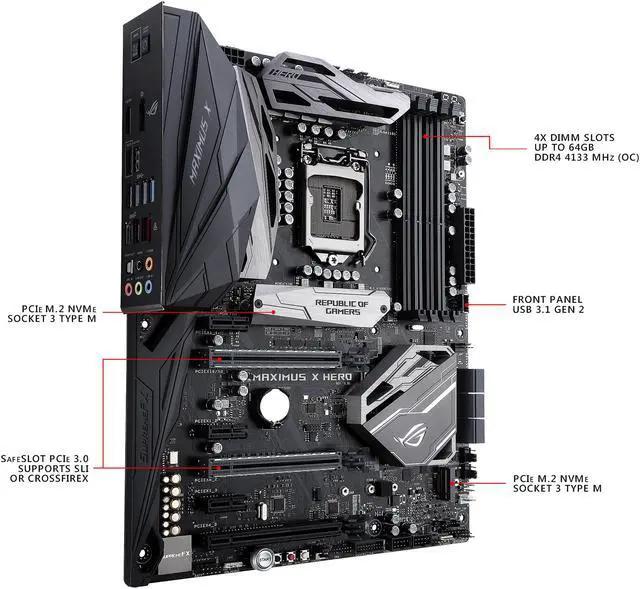

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	New 8th Gen Intel Core Processors: 2 x PCIe 3.0 x16 slots (supports x16, x8/x8) Intel Z370 Chipset: 1 x PCIe 3.0 x16 slot (max. at x4 mode)* * The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 runs x2 mode by default.
PCI Express x1	3 x PCIe 3.0/2.0 x1

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIE 3.0 x4 and SATA modes)* 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280 (supports PCIE 3.0 x4 mode)** * When the M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. ** When the M.2_2 Socket 3 is operating in PCIEX4 mode, SATA port 5. 6 will be disabled.
SATA RAID	0/1/5/10

Audio Chipset	ROG SupremeFX High Definition Audio CODEC S1220
Audio Channels	8 Channels

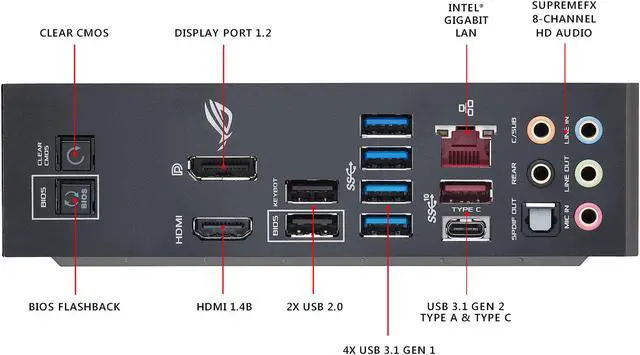

HDMI	1 x HDMI
RJ45	1 x RJ45
DisplayPort	1 x DisplayPort
USB 3.1	4 x USB 3.1 Gen 1 ports [blue] 2 x USB 3.1 Gen 2 ports (1 x Type-A [red] and 1 x Type-C [black])
USB 1.1/2.0	2 x USB 2.0 ports [black]
S/PDIF Out	1 x Optical
Audio Ports	5 x Gold-plated audio jacks

Onboard USB	1 x USB 3.1 Gen2 front panel connector 1 x USB 3.1 Gen1 header supports additional 2 USB 3.1 Gen1 ports 2 x USB 2.0 header support additional 4 USB 2.0 ports

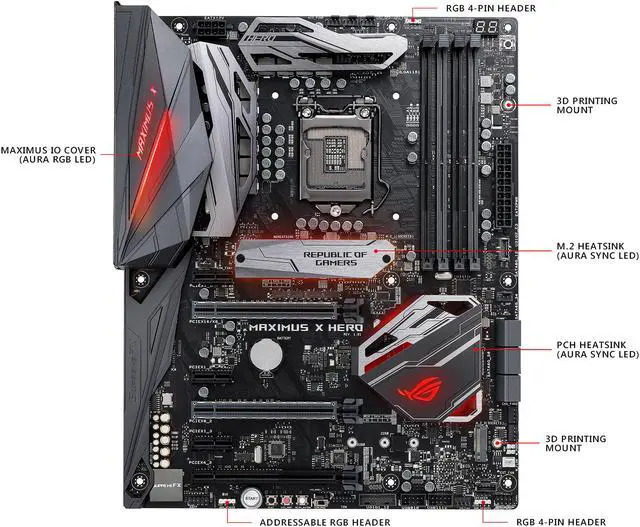

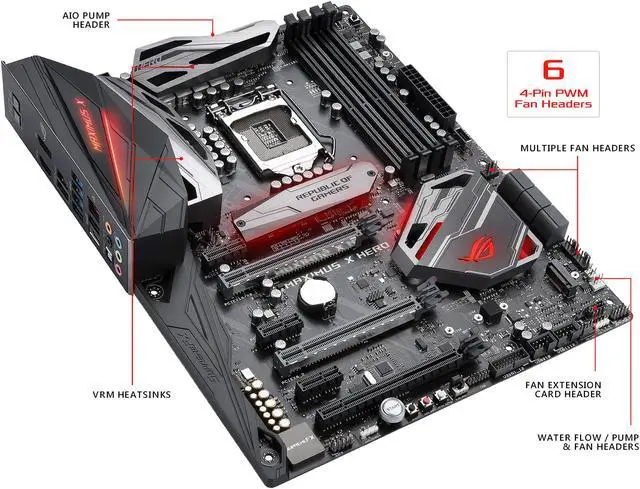

Other Connectors	1 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x TPM connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 3 x 3D Mount screw port(s) 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps
