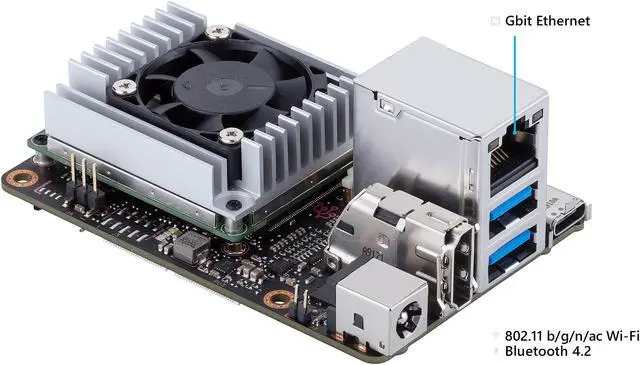

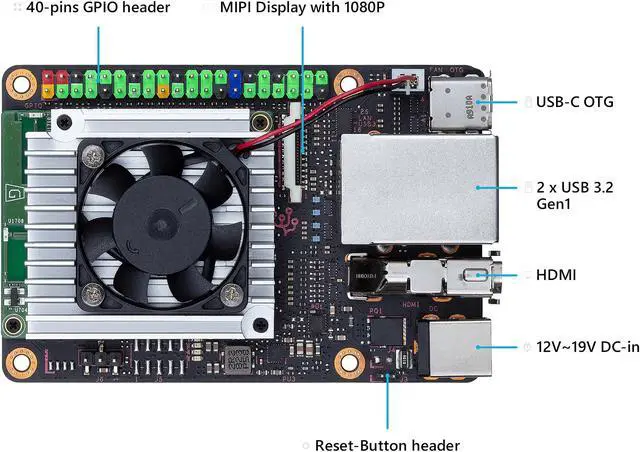

ASUS Tinker Edge T Soc 1.5 Ghz QuadCore CPU, GC7000 Lite Graphics, 1GB LPDDR4, 8GB EMMC Mini Motherboard (90ME0140-M0AAY0)
- Quad-core ARM Cortex-A53 @ 1.5 GHz
+
+
Specs
Reviews
Learn more about the ASUS TINKER EDGE T (90ME0140-M0AAY0)

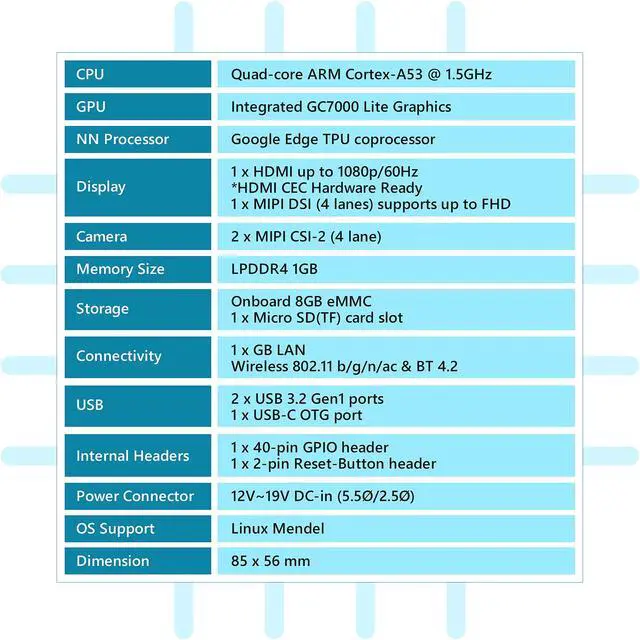

| Brand | ASUS |
|---|---|
| Model | TINKER EDGE T (90ME0140-M0AAY0) |
| Combo Type | Motherboard / CPU / Memory Combo |
| CPU | Quad-core ARM Cortex-A53 @ 1.5 GHz |
|---|---|
| Memory | Dual-CH LPDDR4 1GB |
| CPU Type | Quad-core ARM Cortex-A53 @ 1.5 GHz |
|---|
| Channel Supported | Dual Channel |
|---|
| LAN Chipset | RTL8211F-CG GbitLAN |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Yes |
| Video Ports | 1 x MIPI DSI |
|---|---|
| HDMI | 1 x HDMI |
| USB 3.0 | 3 x USB 3.1 Gen 1 |
| Features | AI accelerator (Edge TPU) Tinker Edge T is a single-board computer (SBC) specially designed for AI applications. It features the Google Edge TPU, a machine learning (ML) accelerator that speeds up processing efficiency, lowers power demands and makes it easier to build connected devices and intelligent applications. With this onboard ML accelerator, Tinker Edge T is capable of performing four tera-operations per second (TOPS) using only 0.5 watts per unit of computation. It is also optimized for TensorFlow Lite models, making it easy to compile and run common ML models. NXP i.MX 8M processor With its powerful and modern quad-core ARM-based NXP i.MX 8M processor, Tinker Edge T offers a powerful solution for graphics, machine vision, video, audio, voice and safety-critical applications. Tinker Edge T features 1GB of LPDDR4 dual-channel memory, the 4th generation of low-power DDR DRAM technology, offering faster speeds and even lower power consumption for improved system performance and efficiency. Tinker Edge T also comes equipped with an onboard 8GB eMMC and SD 3.0 interface that offers significantly faster read and write speeds for the OS, applications and file storage. Advanced power design Most SBC motherboards only offer a 15W (5V 3A) power design, which can cause device and system instability when there are multiple connected devices. Other SBCs have power designs that lower the performance of their I/O ports. Tinker Edge T has a special power design that, together with a DC head power supply, delivers up to 45W of power, enabling stable system operation and full I/O performance, even with multiple connected devices. Additionally, an exclusive power-protection design activates automatically if the supplied current and voltage change significantly, effectively protecting the board and all connected devices. |
|---|
| First Listed on Newegg | August 25, 2025 |
|---|
