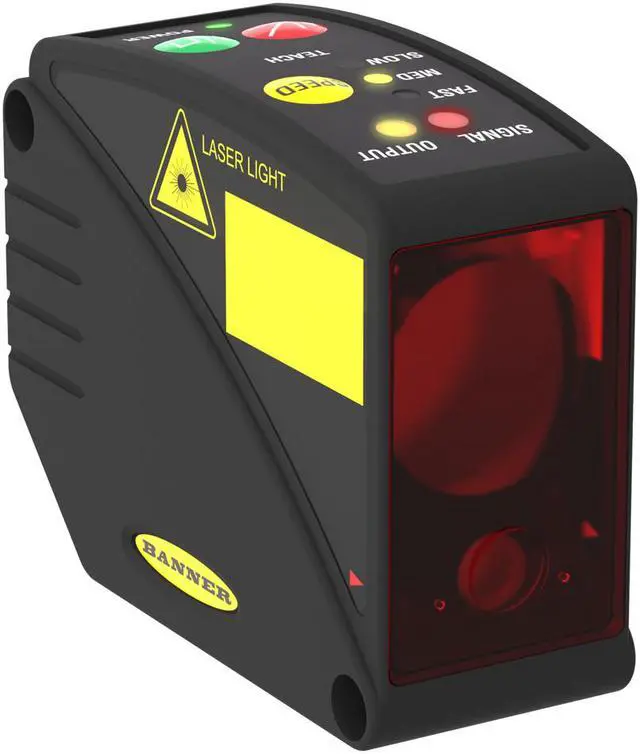

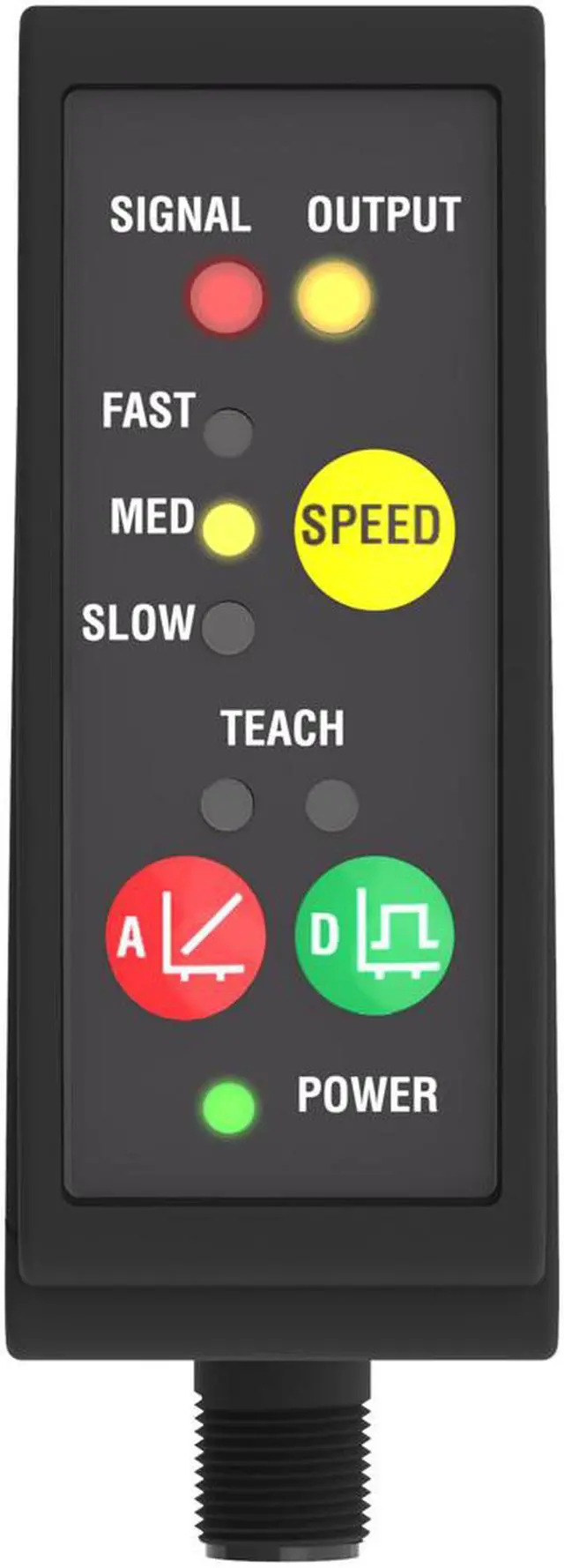

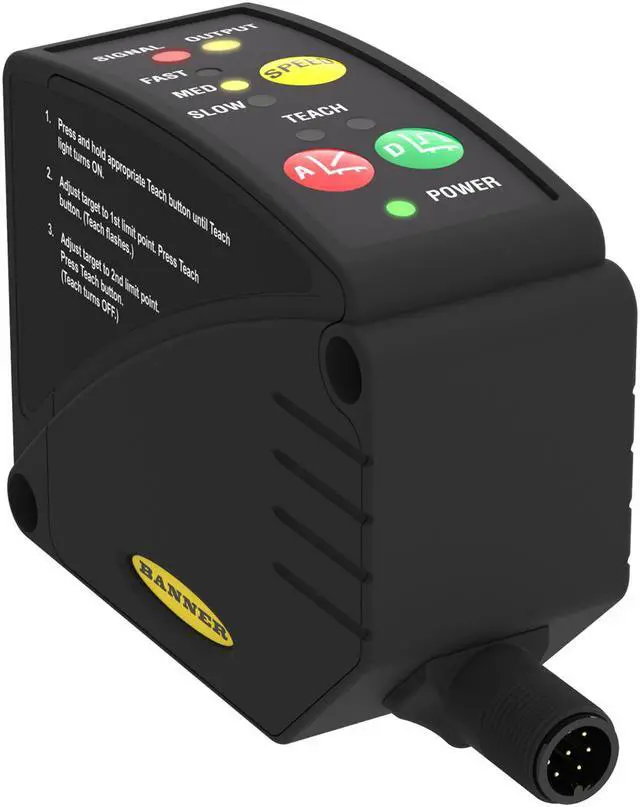

BANNER LT3PIQ 50 M Range Time-Of-Flight Laser Sensor New
- BANNER LT3PIQ 50 M Range Time-Of-Flight Laser Sensor New
+
+
Overview
Specs
Reviews
LT3 Series: Diffuse T.O.F. Laser Distance Measurement
Range: 0.3-5.0 m; Input: 12-24 V dc
Analog Output: 4 to 20 mA; Discrete Output: PNP
Euro 8-pin Quick-Disconnect
Part Number: 65513
Sensing Beam Visible Red Laser
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Time of Flight
Housing Style Rectangular
Device Type Sensor
Primary Housing Material ABS
Laser Classification Class 2
Input/Output Analog & Discrete
Indicator LED(s)
Connection Integral QD
Analog Output Configuration 4-20 mA
Analog Resolution/Discrete Repeatability 1 to 1.25 at slow response speed
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 5000
Minimum Sensing Distance (mm) 300
Sensing Beam Visible Red Laser
Power Supply 12-24 V dc
Delay at Power-up (ms) 1000
Sensing Beam Wavelength (nm) 658
Adjustments Push Button; Remote Teach
Temperature Effect (mm/°C) 2 mm/°C
Number of Pins 8
Output Saturation Voltage PNP Outputs < 1.2 V at 10 mA; < 1.6 V at 100 mA
Analog Current Output Rating 1 k? max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] ?
Max Discrete (Switched) Output (mA) 100
Discrete (Switched) Outputs 1 PNP
Output Protection Protected against short circuit conditions
IP Rating IP67
NEMA Rating NEMA 6
Max Operating Temperature (°C) 50
Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
Window Material Acrylic
Warm-up Time (minutes) 30
Minimum Response Time (ms) 1
Spot Size (@ Reference Distance) 6 mm
Analog Linearity (mm) +/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
Minimum Window Size (mm) 20
Color Sensitivity (Typical) 90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
Remote Teach and Laser Control Input Impedence 18 k? min. (65 k? min at 5 V dc)
Discrete Output Hysteresis (mm) 3
Laser Control Yes
Max Ambient Light (Lux) 5000
Max Off-state Leakage Current (µA) 5
Power/Current Consumption (exclusive of load) 108 mA max @ 24 V dc
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
Typical Laser Lifetime (Hours) 75000
Feature: Remote Teach Yes
Feature: Timing (Hold/Delay) No
Feature: Chemical Resistant No
Common Ethernet Protocol No
IO Link No
PROFINET No
RS-232 No
RS-422 No
RS-485 No
SSI No
Wireless No
1-wire Serial Interface No
Profibus No
Range: 0.3-5.0 m; Input: 12-24 V dc
Analog Output: 4 to 20 mA; Discrete Output: PNP
Euro 8-pin Quick-Disconnect
Part Number: 65513
Sensing Beam Visible Red Laser
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Time of Flight
Housing Style Rectangular
Device Type Sensor
Primary Housing Material ABS
Laser Classification Class 2
Input/Output Analog & Discrete
Indicator LED(s)
Connection Integral QD
Analog Output Configuration 4-20 mA
Analog Resolution/Discrete Repeatability 1 to 1.25 at slow response speed
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 5000
Minimum Sensing Distance (mm) 300
Sensing Beam Visible Red Laser
Power Supply 12-24 V dc
Delay at Power-up (ms) 1000
Sensing Beam Wavelength (nm) 658
Adjustments Push Button; Remote Teach
Temperature Effect (mm/°C) 2 mm/°C
Number of Pins 8
Output Saturation Voltage PNP Outputs < 1.2 V at 10 mA; < 1.6 V at 100 mA
Analog Current Output Rating 1 k? max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] ?
Max Discrete (Switched) Output (mA) 100
Discrete (Switched) Outputs 1 PNP
Output Protection Protected against short circuit conditions
IP Rating IP67
NEMA Rating NEMA 6
Max Operating Temperature (°C) 50
Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
Window Material Acrylic
Warm-up Time (minutes) 30
Minimum Response Time (ms) 1
Spot Size (@ Reference Distance) 6 mm
Analog Linearity (mm) +/- 30 mm from 0.3 to 1.5 m; +/- 20 mm from 1.5 to 5 m
Minimum Window Size (mm) 20
Color Sensitivity (Typical) 90% white to 18% gray: < 10 mm; 90% white to 6% black: < 20 mm
Remote Teach and Laser Control Input Impedence 18 k? min. (65 k? min at 5 V dc)
Discrete Output Hysteresis (mm) 3
Laser Control Yes
Max Ambient Light (Lux) 5000
Max Off-state Leakage Current (µA) 5
Power/Current Consumption (exclusive of load) 108 mA max @ 24 V dc
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
Typical Laser Lifetime (Hours) 75000
Feature: Remote Teach Yes
Feature: Timing (Hold/Delay) No
Feature: Chemical Resistant No
Common Ethernet Protocol No
IO Link No
PROFINET No
RS-232 No
RS-422 No
RS-485 No
SSI No
Wireless No
1-wire Serial Interface No
Profibus No
