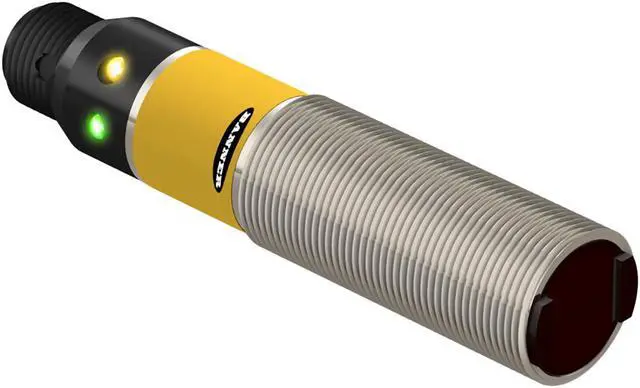

ANNER M18SP6FF25Q 18mm Metal Barrel-Mount Sensor New
- ANNER M18SP6FF25Q 18mm Metal Barrel-Mount Sensor New
+
+
Overview
Specs
Reviews
EZ-BEAM M18 Series: Fixed Field
Range: 25 mm; Input: 10-30 V dc
Complementary PNP
Euro M12 4-pin Integral QD
Part Number: 58433
Sensing Beam Infrared LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Barrel
Primary Housing Material Stainless Steel
Input/Output Discrete
Max Sensing Distance (mm) 25
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 3
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 750
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP69
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant Yes
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
IO Link No
Range: 25 mm; Input: 10-30 V dc
Complementary PNP
Euro M12 4-pin Integral QD
Part Number: 58433
Sensing Beam Infrared LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Barrel
Primary Housing Material Stainless Steel
Input/Output Discrete
Max Sensing Distance (mm) 25
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -40
Max Op. Temp. (°C) 70
Output response time (ms) 3
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 750
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP69
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Washdown Rated Yes
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant Yes
Feature: Health/ Marginal Signal Output Yes
DeviceNet No
IO Link No
