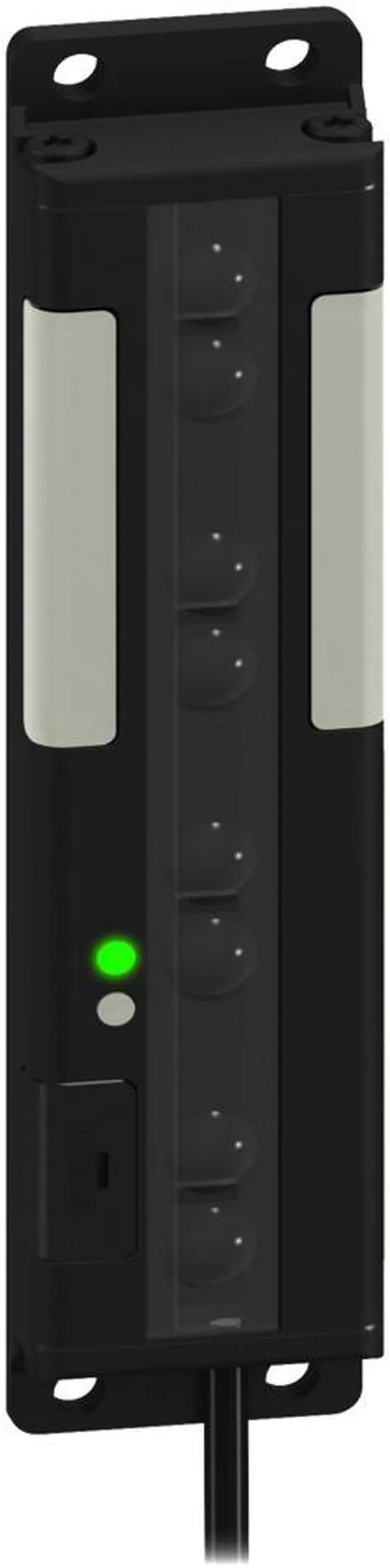

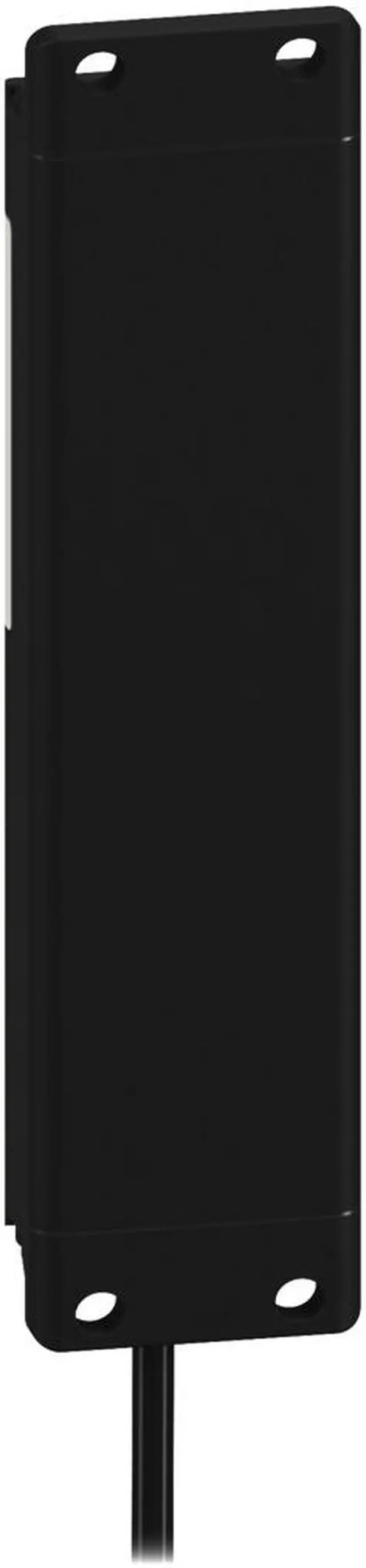

BANNER PVD100Q Part Verification Array Optical Sensor New
- BANNER PVD100Q Part Verification Array Optical Sensor New
+
+
Overview
Specs
Reviews
PVD Series: Parts Verification
100 mm 4 channel; Range; up to 2 m,
Input:12-30 V dc
Outputs: Selectable NPN/PNP
5-pin 2 m Quick-Disconnect Pigtail
Part Number: 70989
Cable Length (m) 2
Sensing Mode (General) Retroreflective or Proximity
Sensing Mode (Detailed) Diffuse/Non-Polarized
Housing Style Flat Mount - Array
Primary Housing Material Aluminum
Actuation Yes
Activation Function Optical
Mounting Thread No Thread
Color Input Control Individual (One wire/color, same number of colors as input wires)
Number of Colors / Segments 2
Product Size (mm) Other
Color Technology Standard LED
Color Option 1 Green
Animation Option 1 Solid On
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Lumens Color 1 12.0
Color 1 - Wavelength/Color Temp/Coordinates 525 nm
Color Option 2 Red
Lumens Color 2 2.5
Color 2 - Wavelength/Color Temp/Coordinates 625 nm
Max Current Color (mA) 88
Mis-Pick Light Red
Number of Input Pins/Conductors 5
Operation Normally Open/Normally Closed
Supply Voltage 12-30 V dc
Output Type Bipolar (NPN or PNP - user selectable)
Input Type Bimodal (PNP/NPN)
Max Input Response Time (ms) 400
Maximum Sensing Distance (mm) 400/2000
Sensing Array Length (mm) 100
Array Length (mm) 100.0
Physical Dimensions (LxWxH or DxH mm) 137.8 x 30.0 x 15.0
Beam Spacing (mm) 28.6
Number of Beams 4
Environmental Rating IP62
NEMA Type and UL Type Rating NEMA 2
Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
Max Op. Temperature (°C) 50
Primary Housing Color Black
Button Operation Momentary
Primary Window Material Acrylic Clear
Sensing Resolution (mm) 51
100 mm 4 channel; Range; up to 2 m,
Input:12-30 V dc
Outputs: Selectable NPN/PNP
5-pin 2 m Quick-Disconnect Pigtail
Part Number: 70989
Cable Length (m) 2
Sensing Mode (General) Retroreflective or Proximity
Sensing Mode (Detailed) Diffuse/Non-Polarized
Housing Style Flat Mount - Array
Primary Housing Material Aluminum
Actuation Yes
Activation Function Optical
Mounting Thread No Thread
Color Input Control Individual (One wire/color, same number of colors as input wires)
Number of Colors / Segments 2
Product Size (mm) Other
Color Technology Standard LED
Color Option 1 Green
Animation Option 1 Solid On
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Lumens Color 1 12.0
Color 1 - Wavelength/Color Temp/Coordinates 525 nm
Color Option 2 Red
Lumens Color 2 2.5
Color 2 - Wavelength/Color Temp/Coordinates 625 nm
Max Current Color (mA) 88
Mis-Pick Light Red
Number of Input Pins/Conductors 5
Operation Normally Open/Normally Closed
Supply Voltage 12-30 V dc
Output Type Bipolar (NPN or PNP - user selectable)
Input Type Bimodal (PNP/NPN)
Max Input Response Time (ms) 400
Maximum Sensing Distance (mm) 400/2000
Sensing Array Length (mm) 100
Array Length (mm) 100.0
Physical Dimensions (LxWxH or DxH mm) 137.8 x 30.0 x 15.0
Beam Spacing (mm) 28.6
Number of Beams 4
Environmental Rating IP62
NEMA Type and UL Type Rating NEMA 2
Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
Max Op. Temperature (°C) 50
Primary Housing Color Black
Button Operation Momentary
Primary Window Material Acrylic Clear
Sensing Resolution (mm) 51
