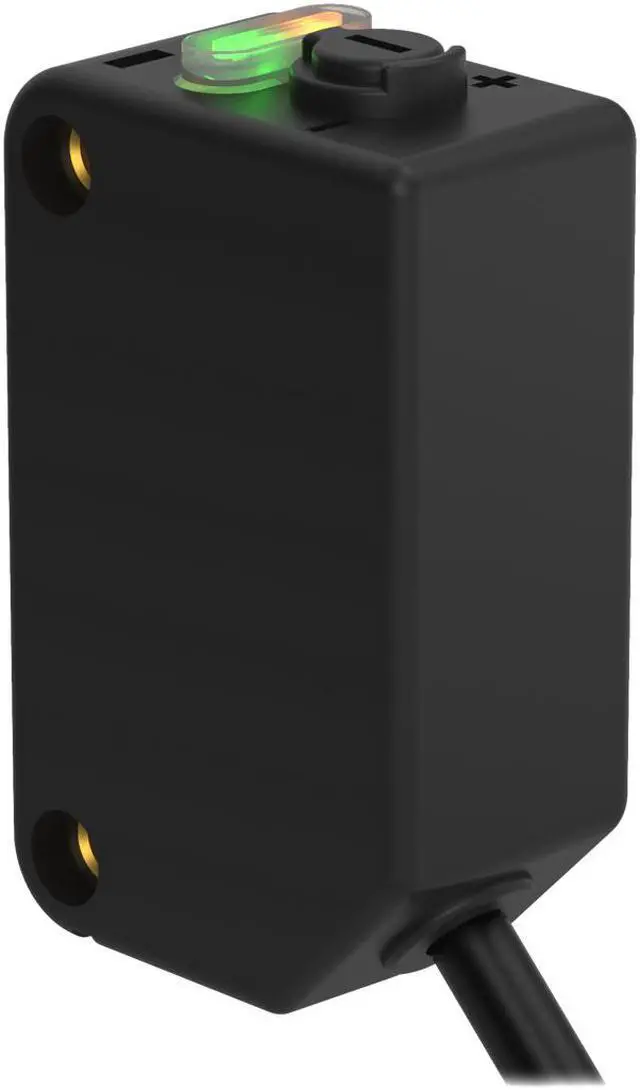

BANNER Q20PDQ5 Sensor New
- BANNER Q20PDQ5 Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM Q20 Series: Diffuse (Red)
Range: 250 mm; Input 10-30V dc
Output: Complementery Solid State PNP
6 in pigtail Euro-style Quick Disconnect Connector
Part Number: 78191
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 250
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 60
Output response time (ms) 0.8
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 655
Delay at Power-up (ms) 100
Repeatability (µs) 155
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Range: 250 mm; Input 10-30V dc
Output: Complementery Solid State PNP
6 in pigtail Euro-style Quick Disconnect Connector
Part Number: 78191
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 250
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 60
Output response time (ms) 0.8
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 655
Delay at Power-up (ms) 100
Repeatability (µs) 155
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
