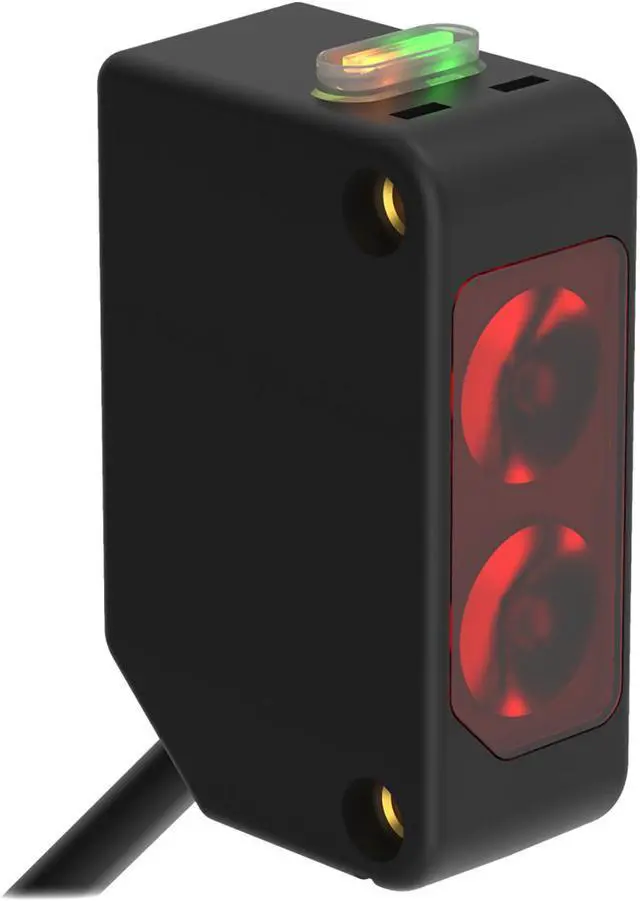

BANNER Q20PFF150Q Sensor New
- BANNER Q20PFF150Q Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM Q20 Series: Fixed-Field
Range: 150 mm; Input 10-30 V dc
Output: Complementery Solid State PNP
Pico 4-pin 150 mm (6 in) Pigtail
Part Number: 78221
Sensing Beam Visible Red LED
Cable Length (m) 0.15
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 150
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 60
Output response time (ms) 0.8
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 655
Delay at Power-up (ms) 100
Repeatability (µs) 155
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Range: 150 mm; Input 10-30 V dc
Output: Complementery Solid State PNP
Pico 4-pin 150 mm (6 in) Pigtail
Part Number: 78221
Sensing Beam Visible Red LED
Cable Length (m) 0.15
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 150
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M8 (Pico)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 60
Output response time (ms) 0.8
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 655
Delay at Power-up (ms) 100
Repeatability (µs) 155
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
