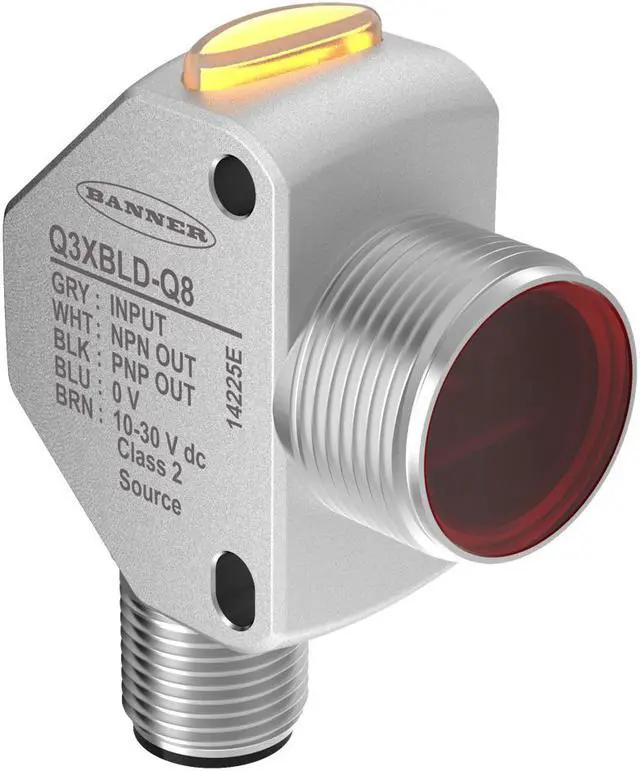

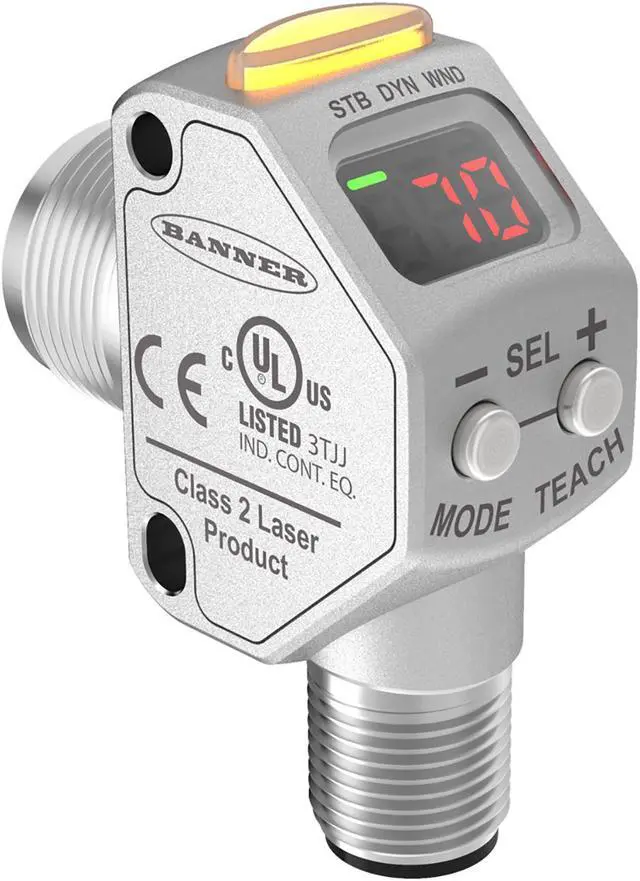

BANNER Q3XTBLD150-Q8 Laser Contrast Sensor New
- BANNER Q3XTBLD150-Q8 Laser Contrast Sensor New
+
+
Overview
Specs
Reviews
Sensing Beam
Visible Red Laser
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Diffuse/Background Suppression
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
Nickel-Plated
Laser Classification
Class 2
Small Visible Spot
Laser
Input/Output
Discrete
Max Sensing Distance (mm)
150
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12 (Euro)
Operation
Light/Dark Operate
Min Op. Temp. (°C)
-10
Max Op. Temp. (°C)
50
Output response time (ms)
0.25
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
Yes
Special Feature: Water Detection
No
Sensing Beam Wavelength
655
Delay at Power-up (ms)
1000
Repeatability (µs)
60
Number of Pins
5
NEMA Rating
N/A
IP Rating
IP67, IP68, IP69
Max Op. Relative Humidity [%]
95% @ 55°C
Lens Material
Acrylic
Adjustments
Teach Button
Barrel Diameter (mm)
18
Indicator
LEDs
Opposed Mode Emitter/Receiver
N/A
Feature: Washdown Rated
Yes
Visible Red Laser
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Diffuse/Background Suppression
Housing Style
Rectangular w/M18 Mount
Primary Housing Material
Nickel-Plated
Laser Classification
Class 2
Small Visible Spot
Laser
Input/Output
Discrete
Max Sensing Distance (mm)
150
Outputs
Bipolar (NPN & PNP)
Power Supply/Supply Voltage
10-30 V dc
Connection
Integral QD
Quick Disconnect Type
M12 (Euro)
Operation
Light/Dark Operate
Min Op. Temp. (°C)
-10
Max Op. Temp. (°C)
50
Output response time (ms)
0.25
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
Yes
Special Feature: Water Detection
No
Sensing Beam Wavelength
655
Delay at Power-up (ms)
1000
Repeatability (µs)
60
Number of Pins
5
NEMA Rating
N/A
IP Rating
IP67, IP68, IP69
Max Op. Relative Humidity [%]
95% @ 55°C
Lens Material
Acrylic
Adjustments
Teach Button
Barrel Diameter (mm)
18
Indicator
LEDs
Opposed Mode Emitter/Receiver
N/A
Feature: Washdown Rated
Yes
