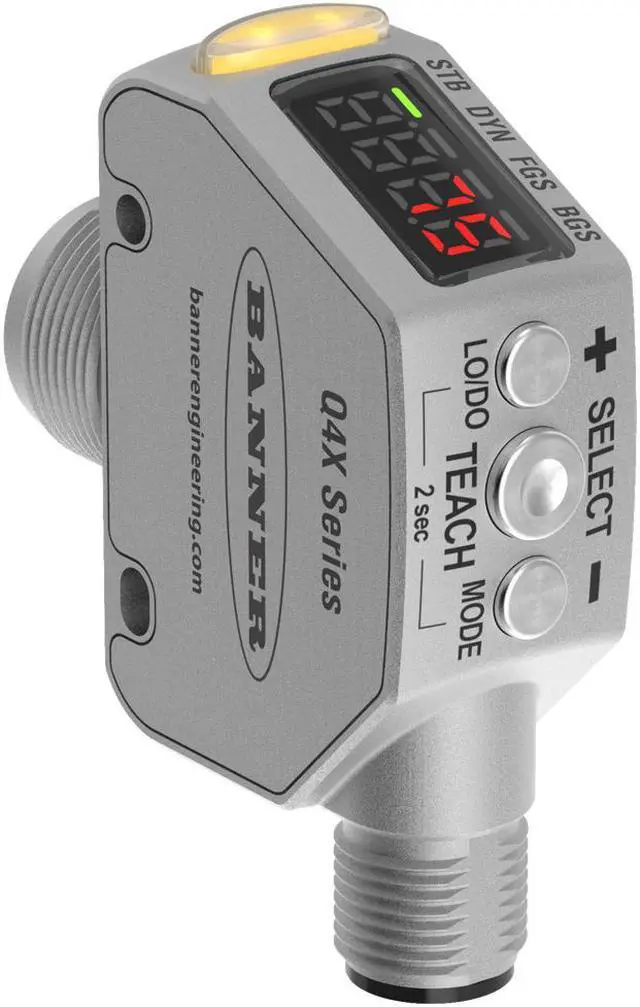

BANNER Q4XTKLAF100-Q8 Rugged Laser Distance Sensor New
- BANNER Q4XTKLAF100-Q8 Rugged Laser Distance Sensor New
+
+
Overview
Specs
Reviews
Q4X Series: Laser Adjustable Field
Range: 100 mm; Input 10-30 V dc
Output: 1 PNP/NPN with IO-Link Communication; 1 PNP
Connection: Euro M12 4-Pin Integral Connector
Sensing Beam Visible Red Laser
PFM Output Yes
PC Configurable No
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background/Foreground Suppression
Housing Style Rectangular w/M18 Mount
Device Type Sensor
Primary Housing Material Stainless Steel
Laser Classification Class 1
Input/Output Discrete
Indicator Display; LED(s)
Connection Integral QD
Analog Resolution/Discrete Repeatability +/- 0.2
Quick Disconnect Type M12 (Euro)
Max Sensing Distance (mm) 100
Minimum Sensing Distance (mm) 25
Sensing Beam Visible Red Laser
Power Supply 10-30 V dc
Delay at Power-up (ms) 750
Sensing Beam Wavelength (nm) 655
Adjustments Push Button; Remote Teach
Temperature Effect (mm/°C) +/- 0.05 mm/°C
Number of Pins 4
Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Output Saturation Voltage PNP Outputs <2 V
Max Discrete (Switched) Output (mA) 100
Discrete (Switched) Outputs 1 NPN/PNP Configurable; 1 PNP
Output Protection Protected against continuous overload and short circuit
IP Rating IP67; IP68; IP69
Storage Temperature (°C) -25 to 75
Max Operating Temperature (°C) 50
Min Operating Temperature (°C) -10
Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
Window Material Acrylic
Warm-up Time (minutes) 10
Minimum Response Time (ms) 1.5
Spot Size (@ Reference Distance) 1.8 mm x 0.7 mm @ 100 mm
Barrel Diameter (mm) 18
Minimum Window Size (mm) 0.2
Discrete Output Hysteresis (mm) Automatically adjusted
Laser Control Yes
Alarm Output (mA) 100
Max Ambient Light (Lux) 5000
Max Off-state Leakage Current (µA) PNP: <50 @ 30 V dc; Push/Pull: N/A
Power/Current Consumption (exclusive of load) < 700 mW
Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
