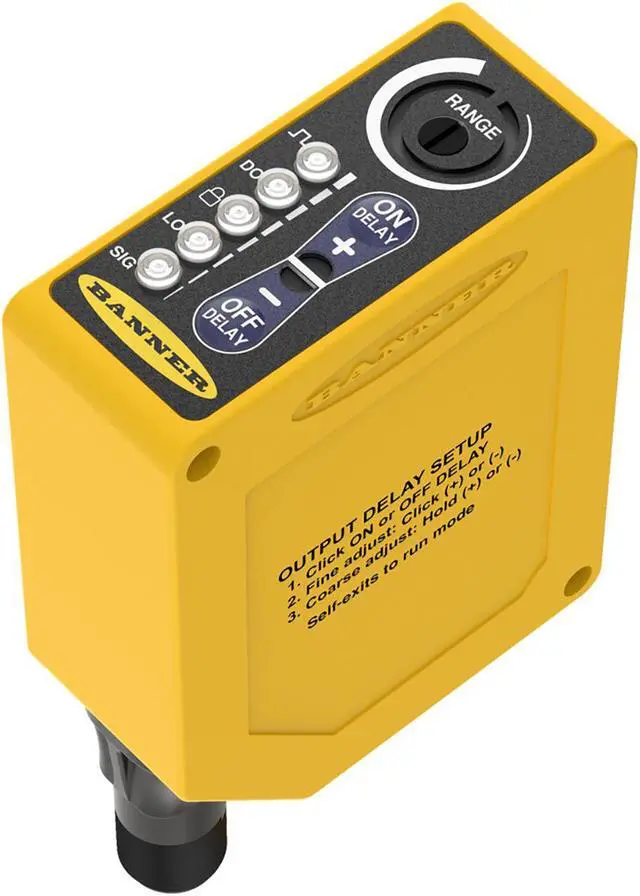

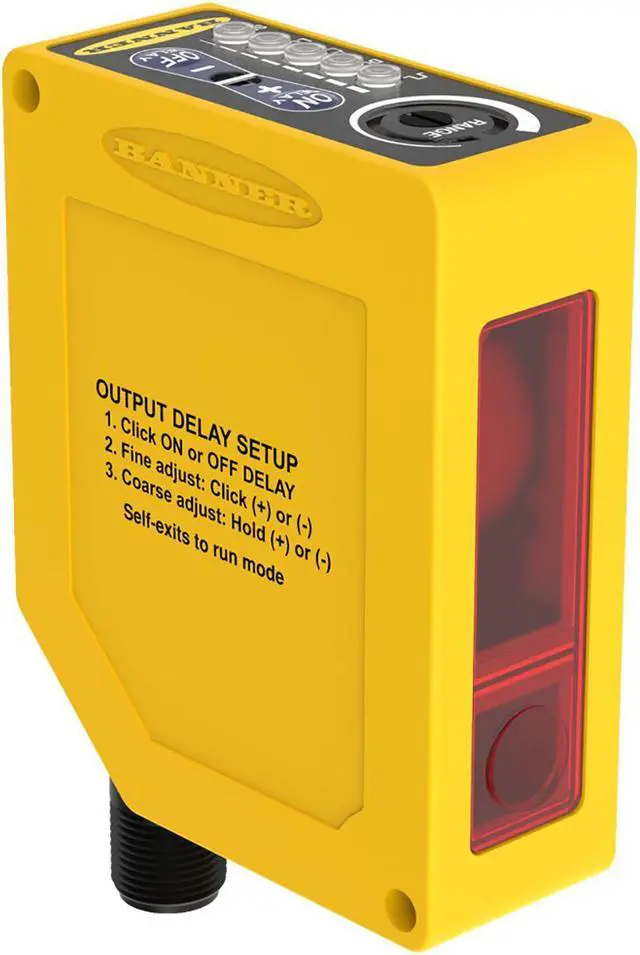

BANNER Q60BB6AFV1000Q 2 M Range Adjustable-Field Sensor New
- BANNER Q60BB6AFV1000Q 2 M Range Adjustable-Field Sensor Ne
+
+
Overview
Specs
Reviews
Euro Style Quick-Disconnect Connector
Part Number: 70093
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 1000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 2
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 665
Delay at Power-up (ms) 150
Repeatability (µs) 500
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Screw Adjustment
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Part Number: 70093
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 1000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 2
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 665
Delay at Power-up (ms) 150
Repeatability (µs) 500
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Screw Adjustment
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
