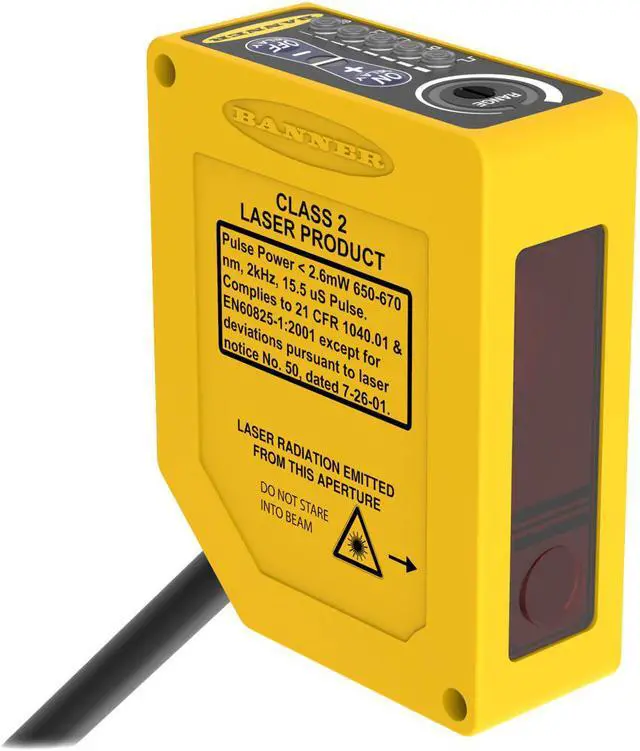

BANNER Q60VR3AF2000 2 M Range Adjustable-Field Sensor New
- BANNER Q60VR3AF2000 2 M Range Adjustable-Field Sensor New
+
+
Overview
Specs
Reviews
Q60 Series: Adjustable-Field Infrared Univrs Volt
Range: 200-2000 mm; Input: 12-250V dc or 24-250Vac
Output: Electromechanical Relay (SPDT)
2m (6.5ft) Cable
Part Number: 63004
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output E/M Relay
Max Sensing Distance (mm) 2000
Outputs SPDT e/m Relay
Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 15
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 150
Repeatability (µs) 500
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Screw Adjustment
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Range: 200-2000 mm; Input: 12-250V dc or 24-250Vac
Output: Electromechanical Relay (SPDT)
2m (6.5ft) Cable
Part Number: 63004
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output E/M Relay
Max Sensing Distance (mm) 2000
Outputs SPDT e/m Relay
Power Supply/Supply Voltage 12-250 V dc or 24-250 V ac
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 55
Output response time (ms) 15
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 150
Repeatability (µs) 500
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Screw Adjustment
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
