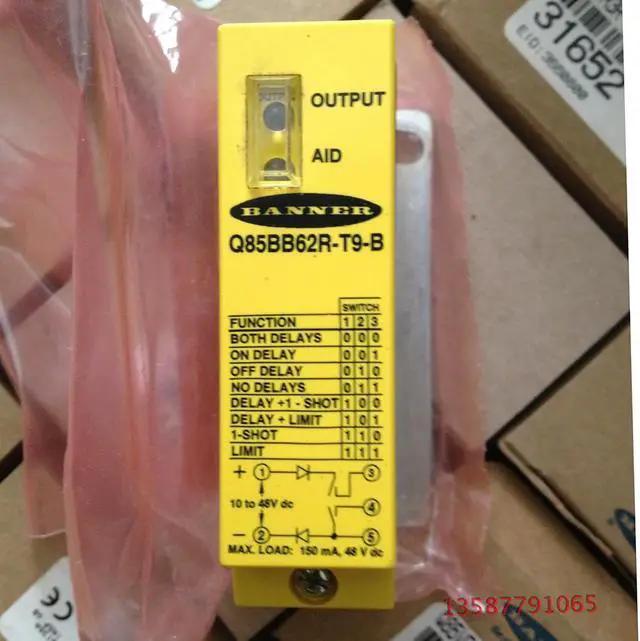

BANNER Q85BB62R-T9-B Photoelectric Switch New
- BANNER Q85BB62R-T9-B Photoelectric Switch New
+
+
Overview
Specs
Reviews
Q85 Series: Opposed Mode Receiver W/Timing
Range: 23 m; Input: 10-48V dc
Output: Bipolar; NPN/PNP
Wiring Chamber
Part Number: 34266
Sensing Beam Visible Red LED
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 23000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-48 V dc
Connection Terminal
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -25
Max Op. Temp. (°C) 55
Output response time (ms) 8
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 680
Delay at Power-up (ms) N/A
Repeatability (µs) 1000
Number of Pins 4
NEMA Rating NEMA 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 23 m; Input: 10-48V dc
Output: Bipolar; NPN/PNP
Wiring Chamber
Part Number: 34266
Sensing Beam Visible Red LED
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 23000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-48 V dc
Connection Terminal
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -25
Max Op. Temp. (°C) 55
Output response time (ms) 8
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 680
Delay at Power-up (ms) N/A
Repeatability (µs) 1000
Number of Pins 4
NEMA Rating NEMA 13
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) Yes
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
