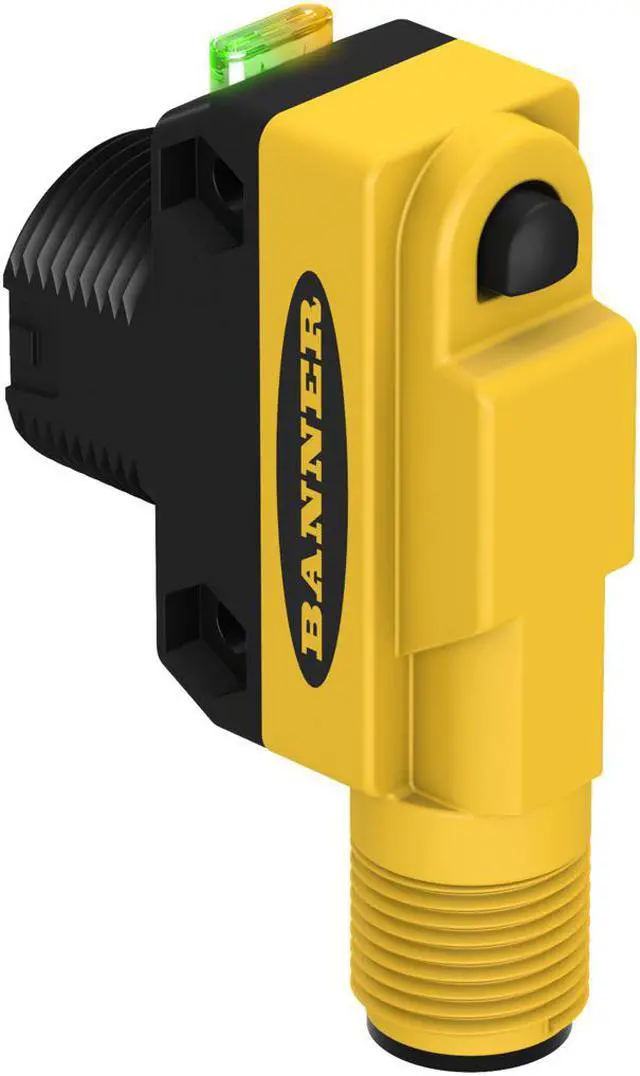

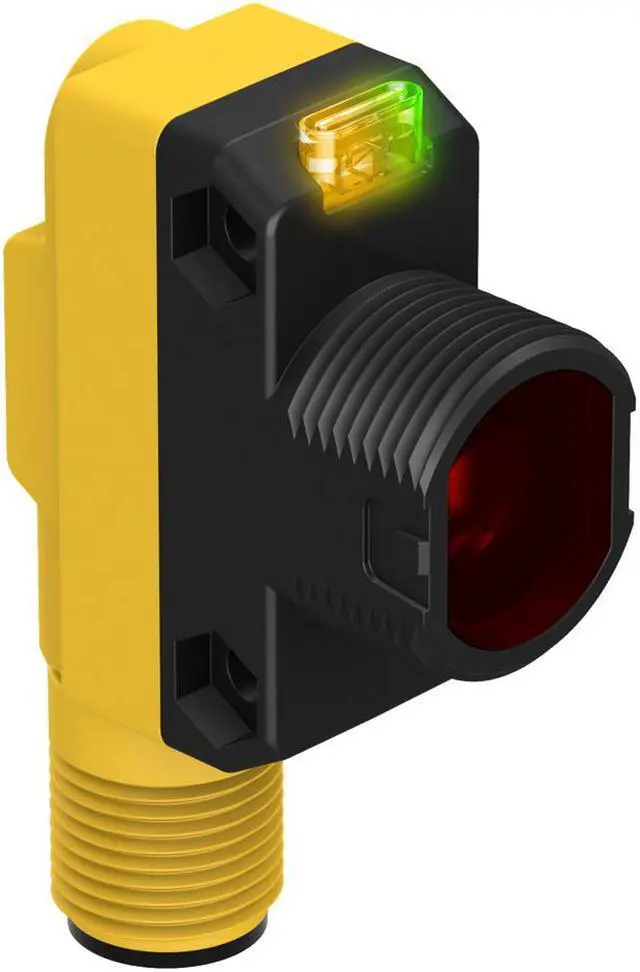

BANNER QS18EP6XLPCQ8 All Purpose Photoelectric Sensor New
- BANNER QS18EP6XLPCQ8 All Purpose Photoelectric Sensor New
+
+
Overview
Specs
Reviews
QS18 Expert Series Clear Object Sensor
Range: 3000 mm; Input: 10-30 V dc
Output: PNP
Euro Integral Quick-Disconnect
Sensing Beam Visible Red LED
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized (Coaxial)
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 3000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -40
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 0.4
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 625
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material PMMA
Adjustments Teach Button
Barrel Diameter (mm) 18
Indicator LEDs
Range: 3000 mm; Input: 10-30 V dc
Output: PNP
Euro Integral Quick-Disconnect
Sensing Beam Visible Red LED
Sensing Mode (General) Retroreflective
Sensing Mode (Detailed) Polarized (Coaxial)
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Input/Output Discrete
Max Sensing Distance (mm) 3000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -40
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 0.4
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 625
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material PMMA
Adjustments Teach Button
Barrel Diameter (mm) 18
Indicator LEDs
