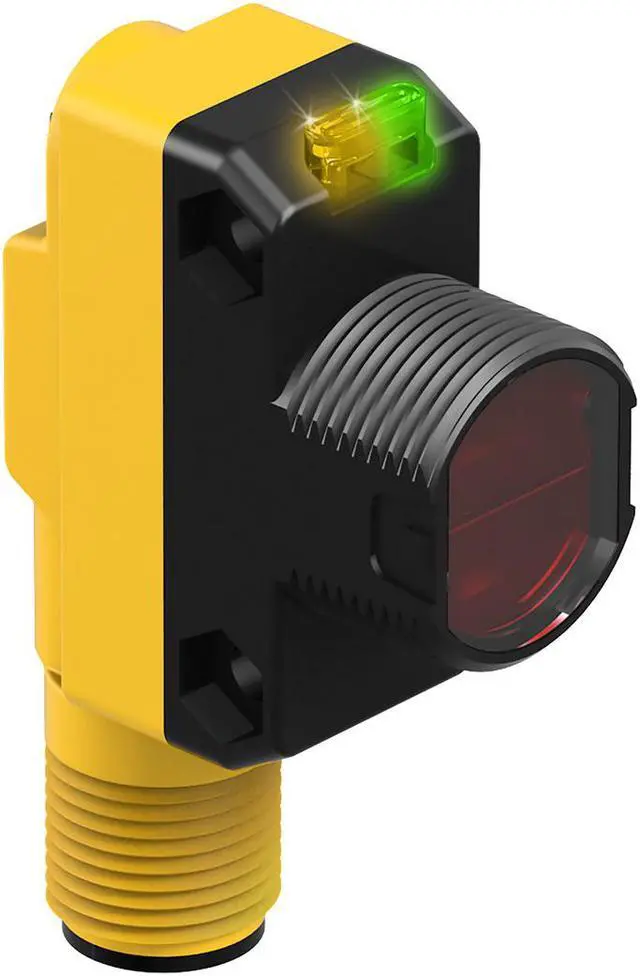

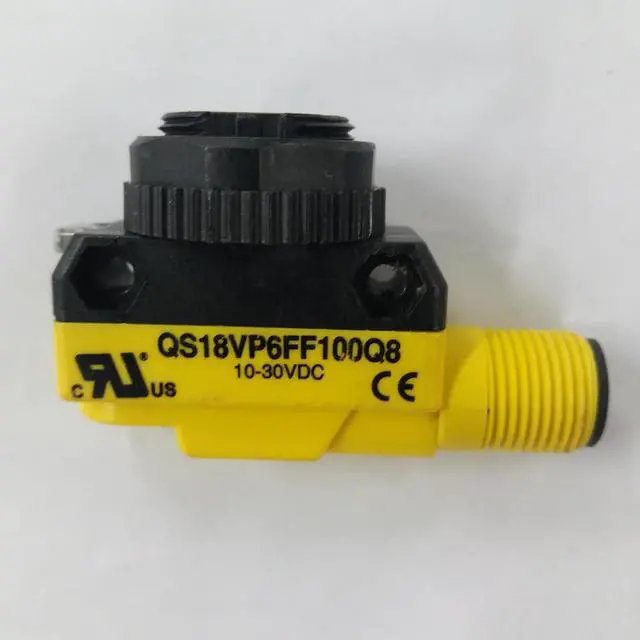

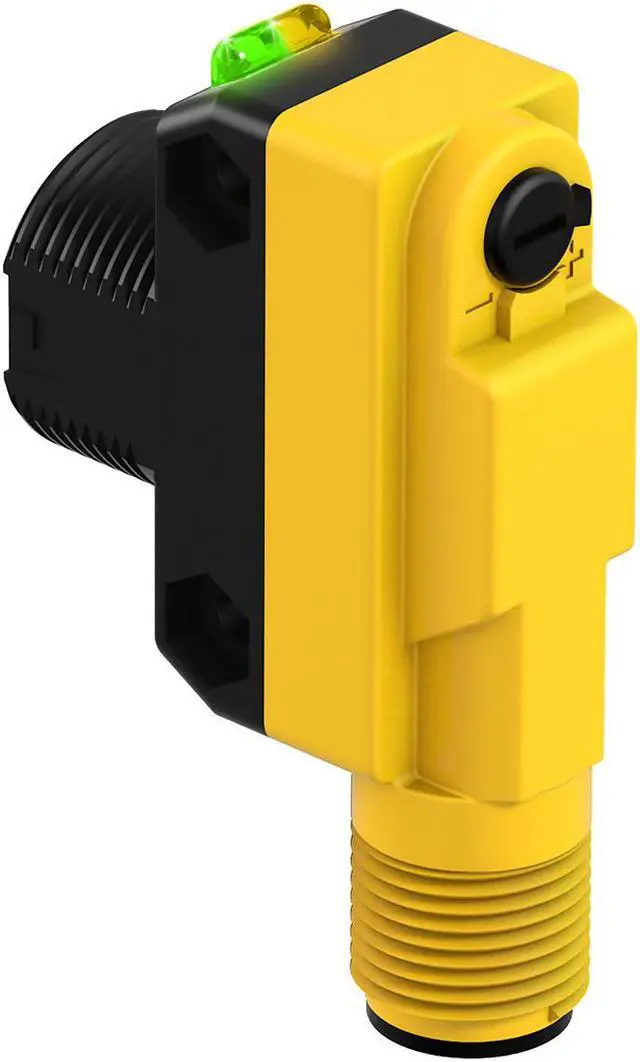

BANNER QS18VP6FF100Q8 All Purpose Photoelectric Sensor New
- BANNER QS18VP6FF100Q8 All Purpose Photoelectric Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM QS18Series: Fixed-Field
Range: 100 mm cutoff
Output: Complementary Solid State PNP
Integral Euro-style Quick-Disconnect Connector
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 100
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 0.85
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 630
Delay at Power-up (ms) 100
Repeatability (µs) 160
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
Range: 100 mm cutoff
Output: Complementary Solid State PNP
Integral Euro-style Quick-Disconnect Connector
Sensing Beam Visible Red LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Fixed)
Housing Style Rectangular w/M18 Mount
Primary Housing Material ABS
Small Visible Spot LED
Input/Output Discrete
Max Sensing Distance (mm) 100
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -20
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 0.85
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 630
Delay at Power-up (ms) 100
Repeatability (µs) 160
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 18
Indicator LEDs
