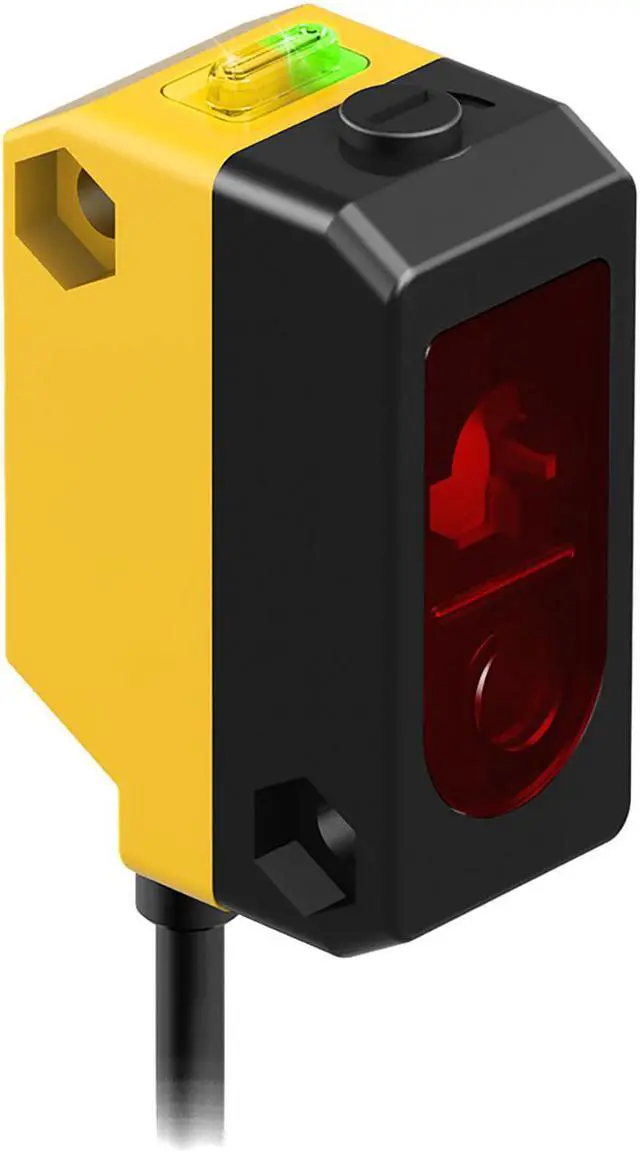

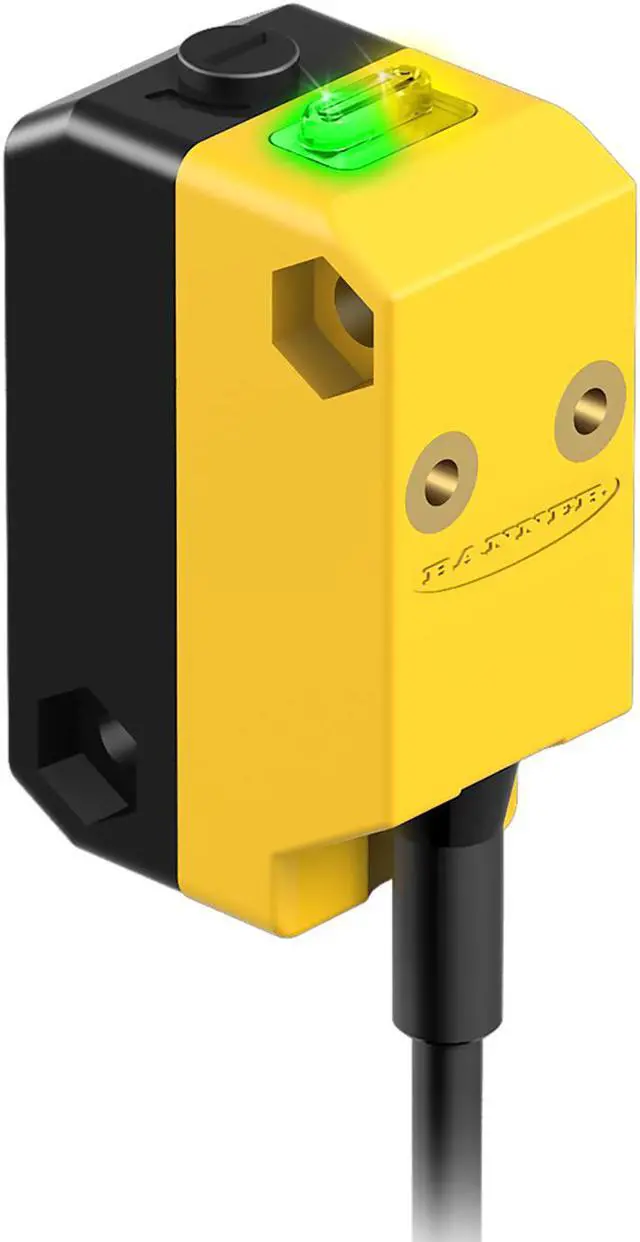

BANNER QS18VP6LAFQ5 All Purpose Photoelectric Sensor New
- BANNER QS18VP6LAFQ5 All Purpose Photoelectric Sensor New
+
+
Overview
Specs
Reviews
WORLD-BEAM QS18 Series: Laser Adjustable-Field
Range: Cutoff Adjusts Between 30-150 mm; 10-30V dc
Output: Complementary Solid State PNP
6 in Pigtail Euro-Style Pigtail QD Connector
Sensing Beam Visible Red Laser
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material ABS
Small Visible Spot Laser
Laser Classification Class 1
Input/Output Discrete
Max Sensing Distance (mm) 150
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 50
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 200
Repeatability (µs) 130
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Mechanical Screw
Barrel Diameter (mm) N/A
Indicator LEDs
Range: Cutoff Adjusts Between 30-150 mm; 10-30V dc
Output: Complementary Solid State PNP
6 in Pigtail Euro-Style Pigtail QD Connector
Sensing Beam Visible Red Laser
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Background Suppression (Adjustable)
Housing Style Rectangular
Primary Housing Material ABS
Small Visible Spot Laser
Laser Classification Class 1
Input/Output Discrete
Max Sensing Distance (mm) 150
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Pigtail QD
Quick Disconnect Type M12 (Euro)
Min Op. Temp. (°C) -10
Operation Light/Dark Operate
Max Op. Temp. (°C) 50
Output response time (ms) 0.7
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 650
Delay at Power-up (ms) 200
Repeatability (µs) 130
Number of Pins 4
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 50°C
Lens Material Acrylic
Adjustments Mechanical Screw
Barrel Diameter (mm) N/A
Indicator LEDs
