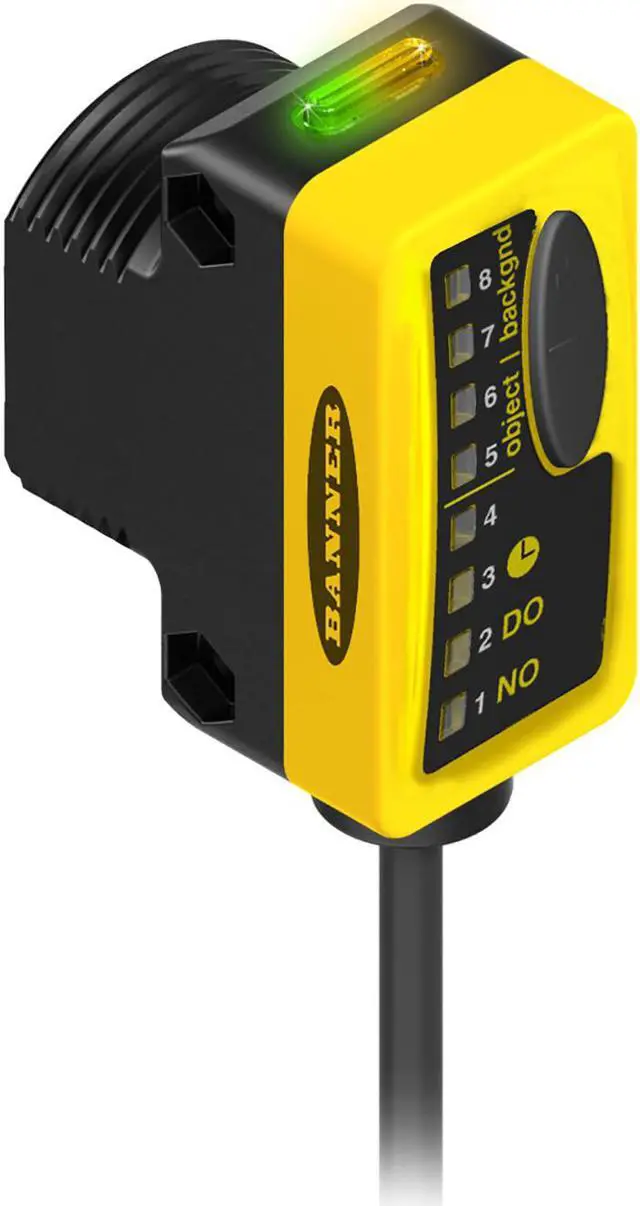

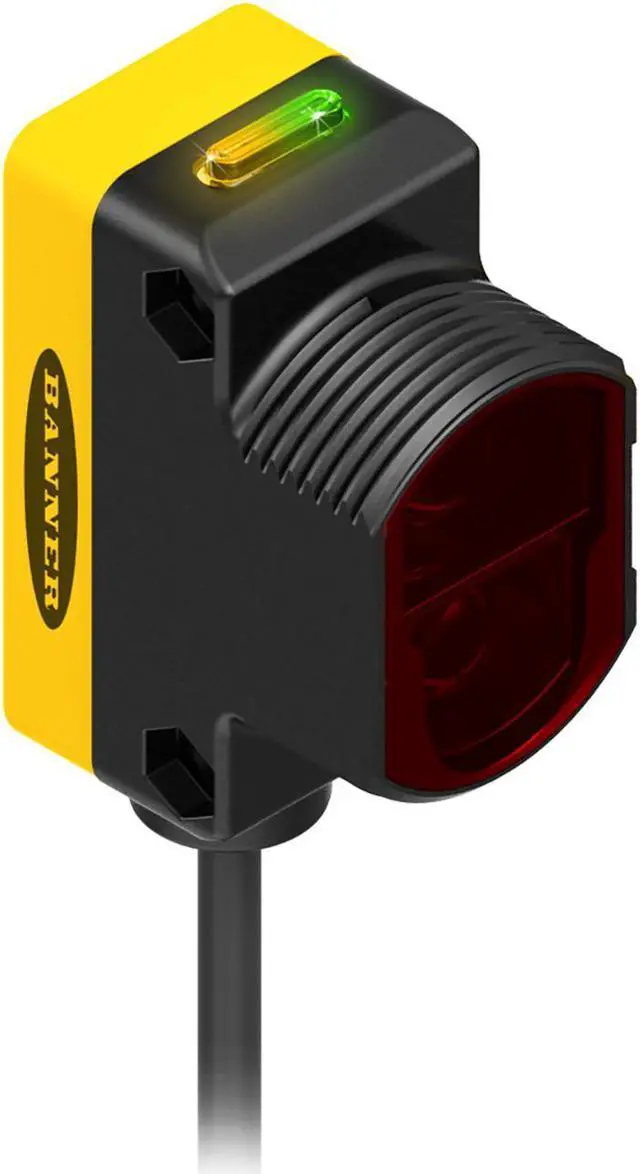

BANNER QS30EDV High-Performance Long-Range Sensor New
- BANNER QS30EDV High-Performance Long-Range Sensor New
+
+
Overview
Specs
Reviews
World-Beam Qs30 Expert Diffuse-Mode Visible Red Beam
Range: High-Speed Mode: 1 100 Mm; Normal: 1400 Mm
Input: 10-30v Dc; Output: Bipolar Npn/Pnp
2 M (6.5 Ft) Cable
Part Number: 76090
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular w/M30 Mount
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 1400
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -10
Max Op. Temp. (°C) 55
Output response time (ms) 0.3-1.8
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 660
Delay at Power-up (ms) 250
Repeatability (µs) 100 to 150
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 55°C
Lens Material Acrylic
Adjustments Teach Button
Barrel Diameter (mm) 30
Indicator Bargraph
Opposed Mode Emitter/Receiver N/A
Range: High-Speed Mode: 1 100 Mm; Normal: 1400 Mm
Input: 10-30v Dc; Output: Bipolar Npn/Pnp
2 M (6.5 Ft) Cable
Part Number: 76090
Sensing Beam Visible Red LED
Cable Length (m) 2
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Diffuse
Housing Style Rectangular w/M30 Mount
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 1400
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light/Dark Operate
Min Op. Temp. (°C) -10
Max Op. Temp. (°C) 55
Output response time (ms) 0.3-1.8
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach Yes
Special Feature: Water Detection No
Sensing Beam Wavelength 660
Delay at Power-up (ms) 250
Repeatability (µs) 100 to 150
Number of Pins 5
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 95% @ 55°C
Lens Material Acrylic
Adjustments Teach Button
Barrel Diameter (mm) 30
Indicator Bargraph
Opposed Mode Emitter/Receiver N/A
