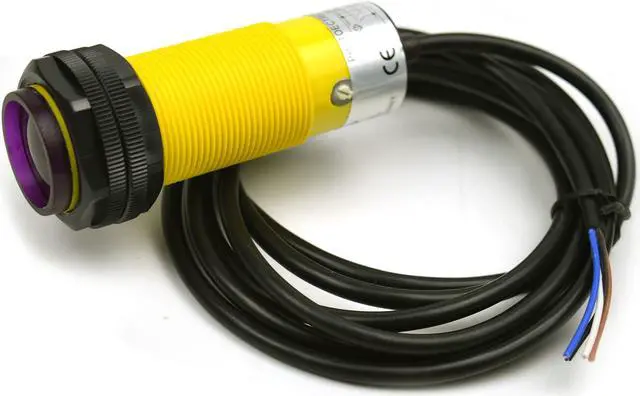

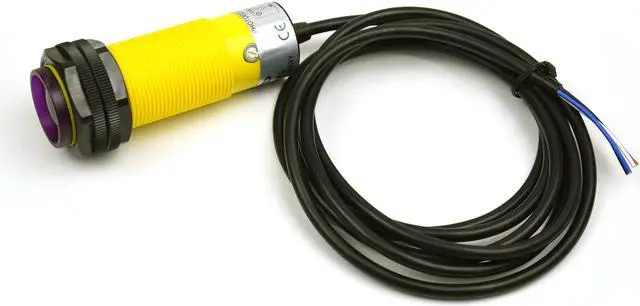

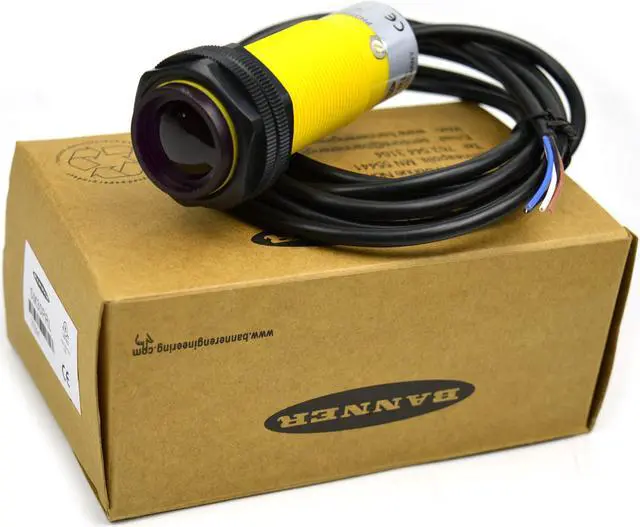

BANNER SM30PRL 150 M Range Opposed Mode Barrel Sensor New
- BANNER SM30PRL 150 M Range Opposed Mode Barrel Sensor New
+
+
Overview
Specs
Reviews
SM30 Series: Receiver - Frequency A PBT Polyester
Range: 150 m; Input: 10-30V dc
Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO
2 m (6.5 ft) cable
Part Number: 27291
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 150000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -40
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 10
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) N/A
Repeatability (µs) 1000
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 150 m; Input: 10-30V dc
Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO
2 m (6.5 ft) cable
Part Number: 27291
Sensing Beam Infrared LED
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Barrel
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 150000
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Min Op. Temp. (°C) -40
Operation Light/Dark Operate
Max Op. Temp. (°C) 70
Output response time (ms) 10
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) N/A
Repeatability (µs) 1000
Number of Pins 4
NEMA Rating NEMA 6P
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments N/A
Barrel Diameter (mm) 30
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
