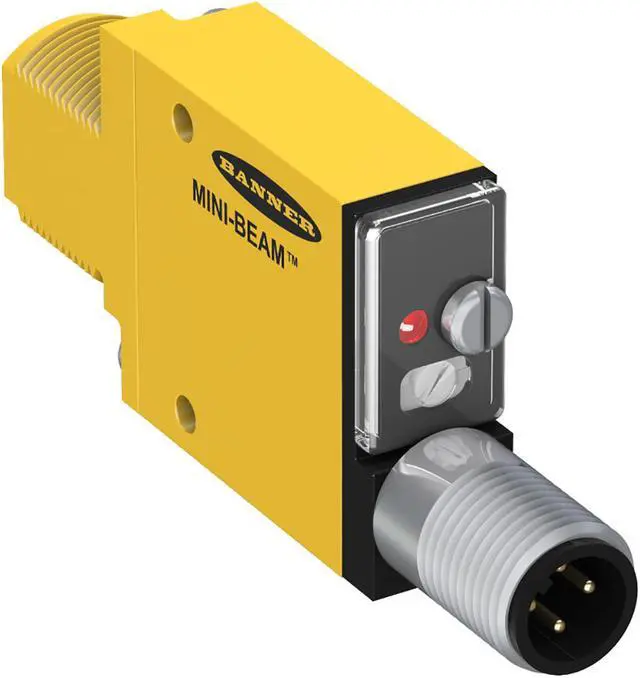

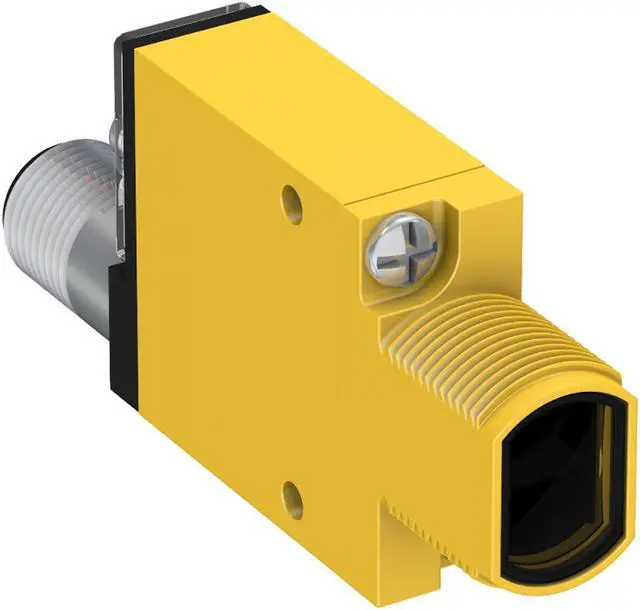

MINI-BEAM: Visible Blue 475 nm Convergent
Focal Point: 16 mm; Input: 10-30 V dc
Output: Bipolar: 1 NPN; 1 PNP
Euro M12 4-pin Integral QD
Part Number: 47277
Sensing Beam Visible Blue LED
Sensing Mode (General) Proximity
Sensing Mode (Detailed) Convergent
Housing Style Rectangular w/M18 Mount
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 16
Outputs Bipolar (NPN & PNP)
Power Supply/Supply Voltage 10-30 V dc
Connection Integral QD
Quick Disconnect Type M12 (Euro)
Operation Light/Dark Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 70
Output response time (ms) 1
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Delay at Power-up (ms) 100
Repeatability (µs) 300
Number of Pins 4
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12
IP Rating IP67
Max Op. Relative Humidity [%] 90% @ 50°C
Lens Material Acrylic
Adjustments Potentiometer
Barrel Diameter (mm) 18
Indicator LEDs
Opposed Mode Emitter/Receiver N/A
Feature: Timing (Hold/Delay) No
Feature: Encapsulated Yes
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
