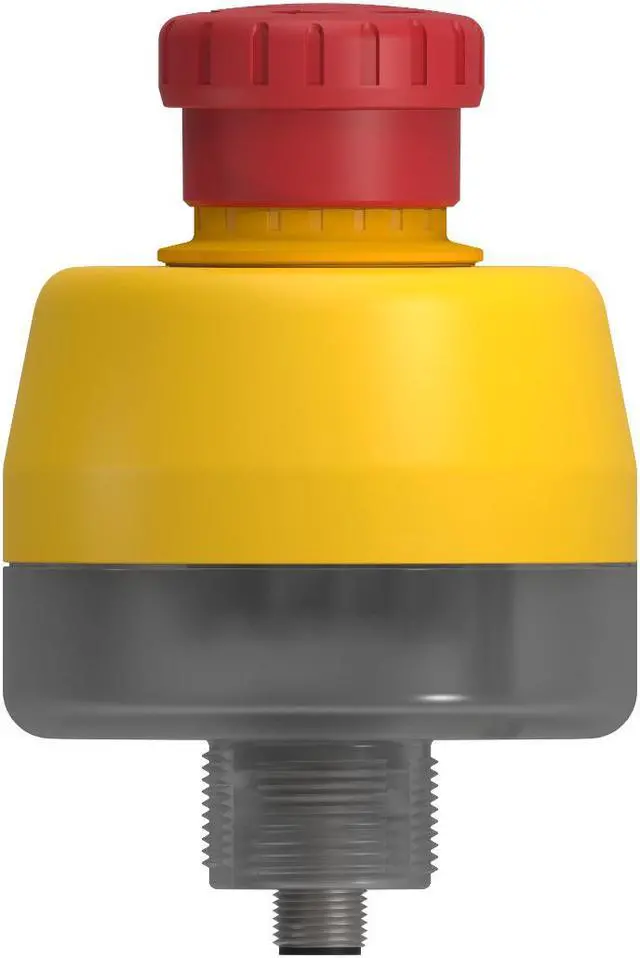

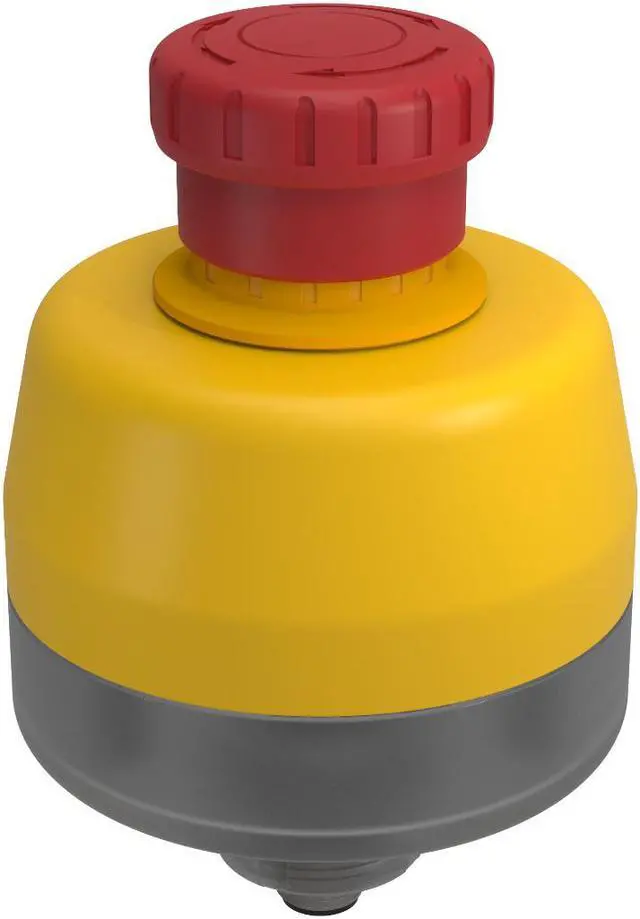

SSA-EB1 30 mm Mount Emergency Stop Push Button
Red-Solid Illuminated Base; 40 mm Actuator
IP65; Contacts: 2 NC; M12 5-pin QD
Safety BUS Node Compatible CH1=pins1&4 CH2=pins2&5
Part Number: 26261
Housing Style Base
Device Type Push Button
Primary Housing Material Polycarbonate
Actuation Twist/Pull-to-Release
Feature: Illuminated Yes
Feature: Lockable No
Mounting Thread/Style 30 mm
Contact Quantity 2 NC
Contact Rating 2 A @ 24 V dc
Button Diameter (mm) 40
Actuator/Button Material Thermoplastic
Dimensions (HxWxD mm ) 120 x 80
Min Operating Temperature ( °C) -25
Max Operating Temperature ( °C) 55
Actuated Color Red
Connection Type M12 (Euro)
Armed Color (Solid) OFF
IP Rating IP65
