HKD$1,854.38
VAT-Inclusive Price
Most customers receive within 5-9 days.
Meet Your Seller

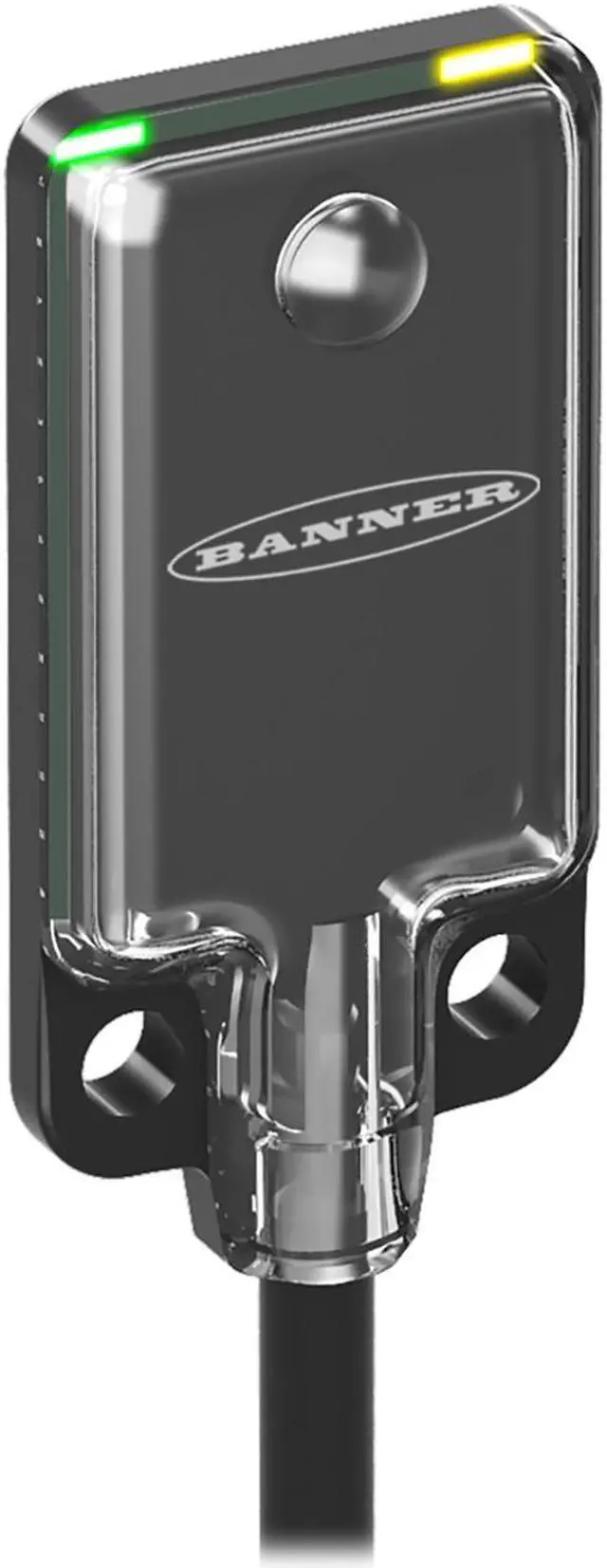

BANNER VS2AP5R Ultra Thin Miniature Sensor New
- BANNER VS2AP5R Ultra Thin Miniature Sensor New
+
+
Overview
Specs
Reviews
VS2 Series: Receiver
Range: 1.2 m max; Input: 12-24V dc
Output: Complementary PNP Light Operate
2 m (6.5 ft) Cable
Part Number: 55404
Sensing Beam Visible Red or IR
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 3000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 55
Output response time (ms) 1 ON/0.5 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 940
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 3
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 80% @ 50°C
Lens Material MABS
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
Range: 1.2 m max; Input: 12-24V dc
Output: Complementary PNP Light Operate
2 m (6.5 ft) Cable
Part Number: 55404
Sensing Beam Visible Red or IR
Cable Length (m) 2
Sensing Mode (General) Opposed
Sensing Mode (Detailed) Receiver
Housing Style Rectangular
Primary Housing Material Thermoplastic
Input/Output Discrete
Max Sensing Distance (mm) 3000
Outputs PNP
Power Supply/Supply Voltage 10-30 V dc
Connection Cable
Quick Disconnect Type No QD
Operation Light Operate
Min Op. Temp. (°C) -20
Max Op. Temp. (°C) 55
Output response time (ms) 1 ON/0.5 OFF
Special Feature: Intrinsically Safe No
Special Feature: Remote Teach No
Special Feature: Water Detection No
Sensing Beam Wavelength 940
Delay at Power-up (ms) 100
Repeatability (µs) 100
Number of Pins 3
NEMA Rating NEMA 6
IP Rating IP67
Max Op. Relative Humidity [%] 80% @ 50°C
Lens Material MABS
Adjustments N/A
Barrel Diameter (mm) N/A
Indicator LEDs
Opposed Mode Emitter/Receiver Receiver
Feature: Timing (Hold/Delay) No
Feature: Encapsulated No
Feature: Hazardous Area No
Feature: Audible No
Feature: Chemical Resistant No
DeviceNet No
IO Link No
