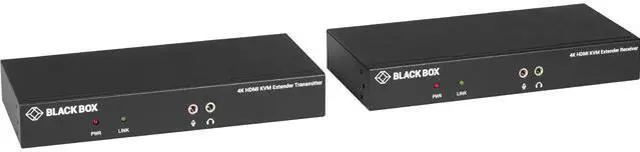

Black Box KVXLCHF-100 KVX Series KVM Extender over Fiber - 4K, Single-Head, HDMI, USB 2.0, Serial, Audio, Local Video

Be the first to review this product...
  • HDMI video resolution up to UHD 4K.
  • Remote access up to 10km, depending on the SFP used.
  • Transparent USB 2.0 extension supports HID devices, mass storage devices.
  • Bi-directional audio via speaker / mic connection.
  • Local Video port supports additional external monitor at server / remote PC side.
  • Supports RS232 peripheral (serial) devices such as scanners or terminals.
  • Rackmount kit available in 1U (19" standard).
  • Ready to use right out of the box (Transmitter, Receiver and all cables included).
  • Supports EDID pass-through.
+
+
Specs
Reviews

Learn more about the Black Box Corporation KVXLCHF-100

Model
Brand Black Box
Model KVXLCHF-100
Details
Type HDMI, USB
PC Connectors TRANSMITTER
Host connection:
Video Input: (1) HDMI female;
Serial Control Port: (1) DB9 female;
Link Port: (1) SFP Cage;
USB: (1) USB Type B female;
Audio: (1) Line in, (1) Line out;
Local Video Output: (1) HDMI female
Console Connectors RECEIVER
Console connection:
Video Output: (1) HDMI female;
Serial Control Port: (1) DB9 male;
Link Port: (1) SFP Cage;
USB: (4) USB Type A female;
Audio: (1) Mic In, (1) Speaker Out
Video Resolution up to UHD 4K
Features
Application The KVXLCHF-100 HDMI KVM Console Extender lets you control a server, or computer over single-mode or multi-mode fiber optic cable at distances of up to 10km (depending on the SFP used, fiber type, and fiber bandwidth). PC connection cables are included with this product making it a solution that is ready right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also includes local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are TAA compliant, backed by a 2-year warranty and free lifetime technical support.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution allowing them to operate servers or PCs from remote locations. Or, customers who require control of systems that are physically inaccessible, placed in secure locations, or in otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.
Features HDMI video resolution up to UHD 4K.
Remote access up to 10km, depending on the SFP used.
Transparent USB 2.0 extension supports HID devices, mass storage devices.
Bi-directional audio via speaker / mic connection.
Local Video port supports additional external monitor at server / remote PC side.
Supports RS232 peripheral (serial) devices such as scanners or terminals.
Rackmount kit available in 1U (19” standard).
Ready to use right out of the box (Transmitter, Receiver and all cables included).
Supports EDID pass-through.
Dimensions & Weight
Dimensions Dimensions (Receiver): 0.83" H x 3.27" W x 7.09" D (2.1 x 8.3 x 18 cm)
Dimensions (Transmitter): 0.83" H x 3.27" W x 7.09" D (2.1 x 8.3 x 18 cm)
Weight Weight (Receiver): 0.83 lb. (0.378 kg)
Weight (Transmitter): 0.82 lb. (0.372 kg)
Package Contents
Package Contents (1) HDMI KVM Fiber Extender Transmitter
(1) HDMI KVM Fiber Extender Receiver
(2) Power Supplies (includes US, EU, UK, AU plug types)
(1) HDMII cable (6-ft./1.8-m)
(1) 3.5mm audio cable (6-ft./1.8-m)
(1) USB-B to USB-A cable (6-ft./1.8-m)
