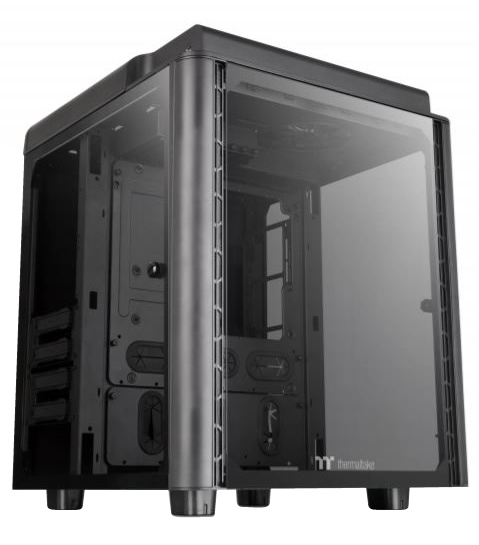

Thermaltake Level 20 HT Full Tower Chassis

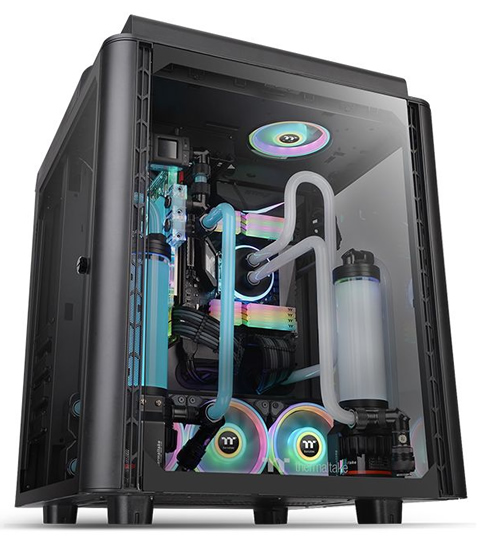

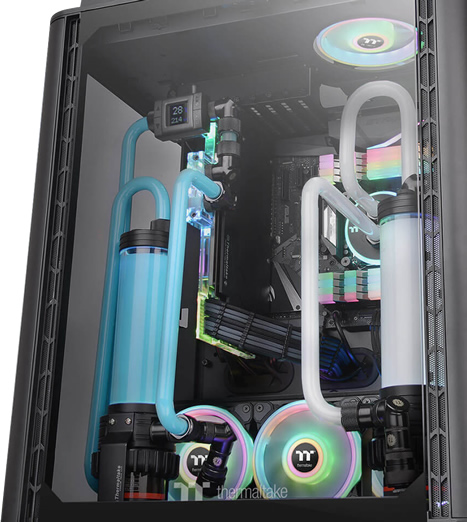

Distinctive from most cases on the market, the Level 20 HT full tower chassis is specially constructed to continue the legend of the Level 20 series case family. It features four durable 4mm-thick tempered-glass windows, two pre-installed 140mm standard fans on the top, and is designed with outstanding system ventilation. The chassis is a premium choice that inhabits a vertical mount design and expansion capabilities for massive custom liquid-cooled systems. The Level 20 HT takes our latest case innovations and wraps them in an ultra-modern style that’s utterly unique in the case market today. Stand out from the crowd with the Level 20 HT.
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high-performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid-cooling configurations to ensure you get the best performance from the best features and fitment.
Distinctive Design DNA
Embedded with the appearance of Level 20 chassis, the pillars of Level 20 HT carry the same structural aesthetics and architectural design but with a vertical tower body. Components in the Level 20 HT are chambers, allowing maximum ventilation and space-management optimization.
Tempered-Glass Window with Ultimate Viewing Angles

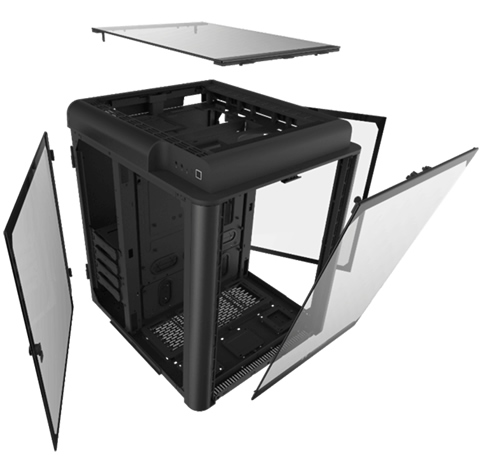

The Level 20 HT comes with four tempered-glass panels at the front, top and both sides which make it easy to display the internal components. For the front and top tempered-glass panels, users can easily unlock by pressing down the locking mechanism located on the top part of the glass, allowing quick and easy access. The left and right hinged doors are also equipped with a smart-lock security system allowing you to easily secure the inner components of your case.

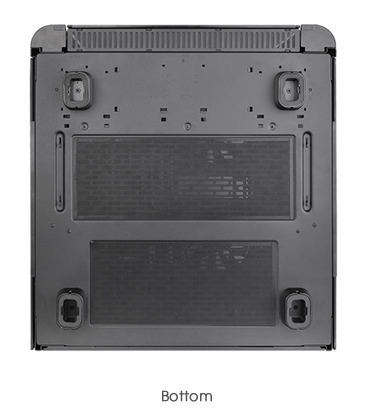

Dust Reduction
Well-designed quick removal magnetic fan filters on the back and at the base provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
Superior Hardware Expansion

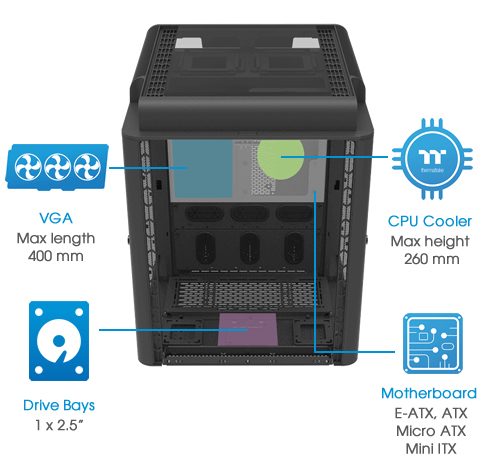

The Level 20 HT/HT Snow Edition contains outstanding expandability options, allowing you to build the most high-end system you can dream of. It can support motherboards up to a standard E-ATX, a CPU cooler with a maximum height of 260mm, multi-GPU configurations can be vertically mounted up to 400mm in length (without a HDD rack), a power supply with a length of up to 200mm, and four 2.5”/3.5” (with HDD cage) and one 2.5” (with HDD bracket) storage devices.

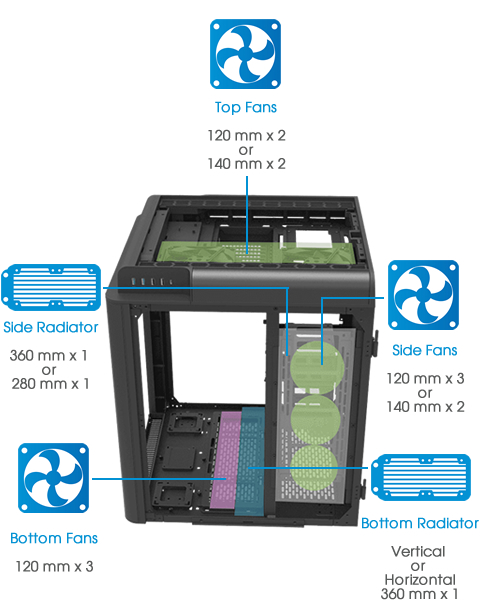

Exceptional Cooling Possibilities
The Level 20 HT is optimized with outstanding cooling capabilities, delivering fantastic cooling efficiency. Besides two pre-installed standard 140mm exhaust fans on top, this case can accommodate up to three 120mm fans at the bottom or side, and two 120mm/140mm fans on top, at the side, or the rear depending on your preference. The Level 20 HT can fit up to 360mm DIY liquid cooling radiators at the bottom or the side.
Airflow In and Out

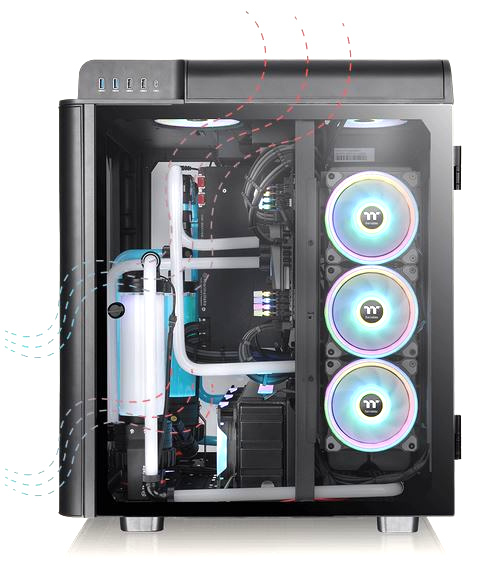

Thanks to the dedicated design of the Level 20 HT, the airflow within the case moves smoothly, ensuring the interior temperature stays low at all time.

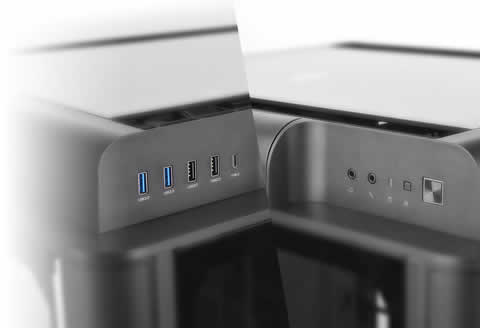

Modern I/O Ports
The top-right I/O port panel features two USB 3.0 and two USB 2.0 data transfer ports, along with one USB 3.1 Type-C port.

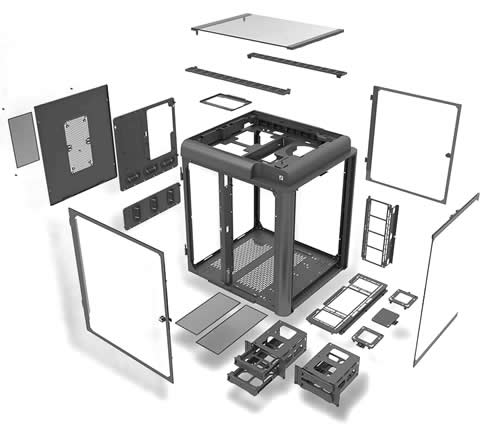

DMD: Dismantlable Modular Design
Strip your case down to the bones and install elements when and as you need them with our modular design. The Level 20 HT features modular panels, racks, brackets and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

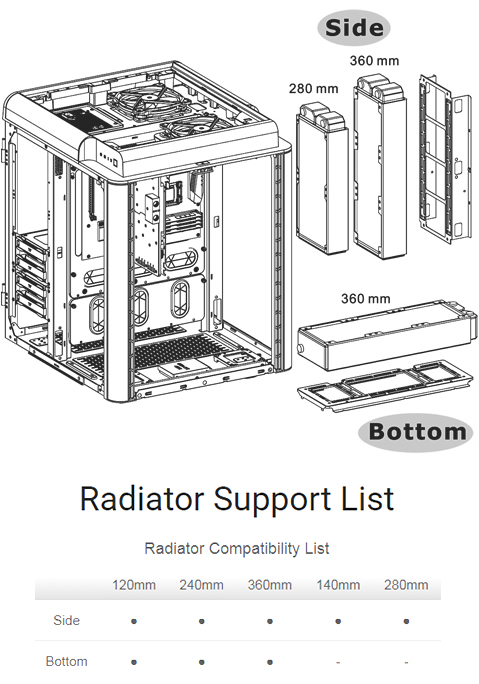

Radiator Support List

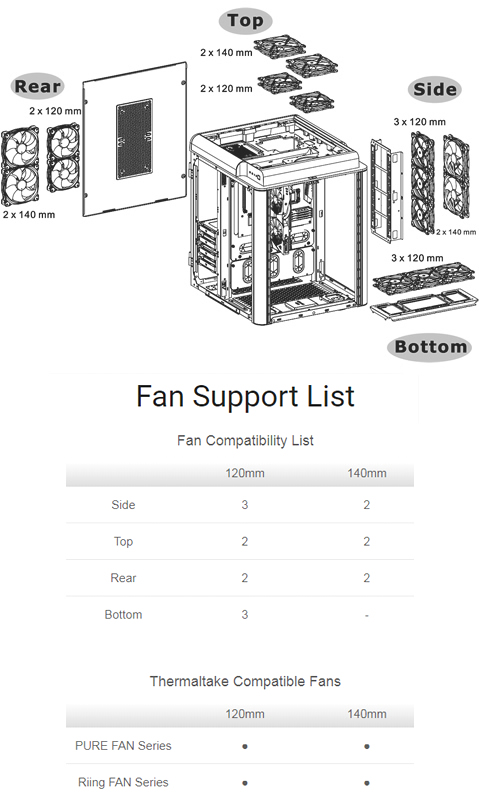

Fan Support List
Specifications
| SERIES | Level 20 |
| Model | Level 20 HT |
| P/N | CA-1P6-00F1WN-00 |
| Case Type | Full Tower |
| Dimension (H x W x D) | 613 x 468 x 503mm (24.13 x 18.43 x 19.8") |
| Net Weight | 20.38kg / 44.93lbs |
| Side Panel | 4x Tempered Glass (4mm Thickness) |
| Color | Exterior & Interior: White |
| Material | SPCC |
| Cooling System | Top (exhaust) : 2 x 140 x 140 x 25mm Turbo Fan (1,000rpm, 16dBA) |
| Drive Bays -Accessible -Hidden | 4x 3.5" or 2.5" (With HDD Cage) 1x 2.5" (With HDD Bracket) |
| Expansion Slots | 8 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) , 12” x 13” (E-ATX) |
| I/O Ports | 1x Type-C, 2x USB 2.0, 2x USB 3.0, 1x HD Audio |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Left / Right Side: 3x 120mm , 2x 140mm Top: 2x 120mm , 2x 140mm Rear: 2x 120mm , 2x 140mm Bottom: 3x 120mm |
| Radiator Support | Left/Right Side: 1x 360mm , 1x 280mm Bottom: 1x 360mm |
| Clearance | CPU-Cooler Height Limitation: 260mm VGA-Length Limitation: 400mm PSU-Length Limitation: 200mm |
