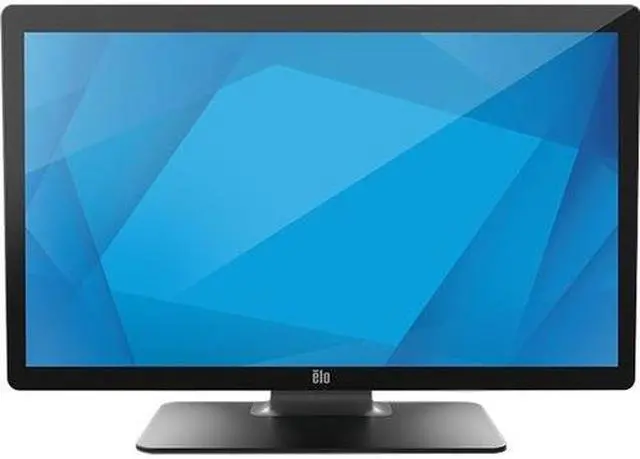

Elo Touch Solutions 2703LM (E659596) Black 27" USB, Serial (via VGA) PCAP (TouchPro Projected Capacitive) - 10 Touch Medical Grade Touchscreen Monitor 270 cd/m2 1000:1 Built-in Speakers
- 1000:1
- USB, Serial (via VGA)
- 178° (H) / 178° (V)
+
+
Specs
Reviews
Learn more about the Elo Touch Solutions 2703LM (E659596)
| Brand | Elo Touch Solutions |
|---|---|
| Model | 2703LM (E659596) |
| Cabinet Color | Black |
| Touchscreen Type | PCAP (TouchPro Projected Capacitive) - 10 Touch |
|---|---|
| Panel | Active matrix TFT LCD (LED) |
| Screen Size | 27" |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Colors | 16.7 Million |
| Brightness | 270 cd/m2 |
| Contrast Ratio | 1000:1 |
| Response Time | 14ms |
| Touchscreen Interface | USB, Serial (via VGA) |
|---|---|
| Connectors | VGA (RS232 touch supported via E810917) HDMI Combo Jack DC jack USB Type B USB 2.0 Type A 4 x Micro USB |
| Power Supply | 12VDC +/- 5% 100-240VAC, 50/60Hz |
|---|---|
| Power Consumption | Monitor + AC/DC adapter ON (Default - 75% Brightness): 17.37 W ON (Typical - 100% Brightness): 22.41W SLEEP: 1.006 W OFF: 0.24 W |
| Built-in Speakers | Two x 2W internal speakers |
|---|---|
| VESA Compatibility - Mountable | VESA 4-hole 100mm mounting interface on rear of unit |
| MTBF | 50,000 hours demonstrated |
| Dimensions (H x W x D) | 17.75" x 25.50" x 9.17" (with Stand) |
|---|---|
| Weight | With Stand: 22.64 lbs. Without Stand: 15.72 lbs. |
| Humidity Range | Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature) |
| Temperature Range | Operating Temperature: 0°C to 40°C / 32°F to 104°F Storage Temperature: -20°C to 60°C / -4°F to 140°F |
| First Listed on Newegg | May 04, 2022 |
|---|
